A leakage and scatter detector in one

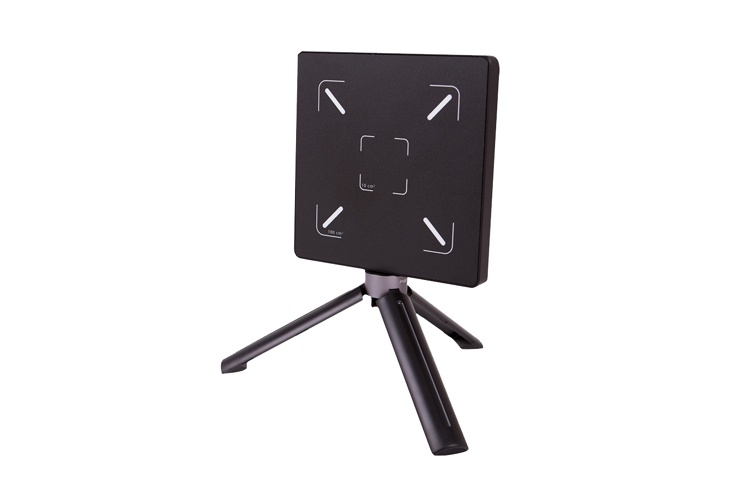

The RTI Scatter Probe is our revolutionary solid-state detector for leakage and scatter detection in X-ray environments.
Its unique design – two separate detector areas of 10 cm² and 100 cm² – fulfills current regulations and standards for X-ray leakage and scatter measurements. The Scatter Probe connects to our world-leading Ocean Next™ software for measurement reading and reporting.
For barrier, leakage, and scatter measurements various industry standards apply.
- 21 CFR 1020.32
- 21 CFR 1020.30
- IEC 60601-2-54
- IEC 60601-1-3
There are several more standards for various modalities.
Common for all these standards is that the measurement must be made covering an area of 10 cm² or 100 cm² at a certain distance. The detector areas of the RTI Scatter Probe ensure full compliance with these standards.
It does not matter if your scatter and leakage application require measurements at a short distance, long-distance, in a fixed position, or sweep, with a click you can select the 10 cm² or 100 cm² area for your measurement.
Quick and easy positioning
Stand on a table, use by hand, or mount on the included tripod, the RTI Scatter Probe is quick, simple, and easy to position.
The anti-slip surface also allows safe positioning facing upwards without sliding.
With the standard camera tripod thread, the probe can be mounted to any tripod or jig.
