vPad‐Rugged 2 is much more than an Electrical Safety Analyzer ‐ it’s the heart of managing your Preventative Maintenance.
Using one of our CMMS Interface Apps, work orders can be downloaded at the start of the day. Automated Preventive Maintenance routines ensure that PMs are consistently carried out per OEM requirements. Completed PM records are uploaded to your CMMS to automate closure of open work orders.
Designed for the Field Service Engineering Community
Built-in Crush Proof case
Easy-to-read graphics and reports
Wireless Interface to Corporate CMMS System
Automated, Semi-Automated and Manual Electrical Safety Testing per IEC 62353, AAMI/ANSI ES-1, NFPA-99 2012, IEC 60601 and, IEC61010

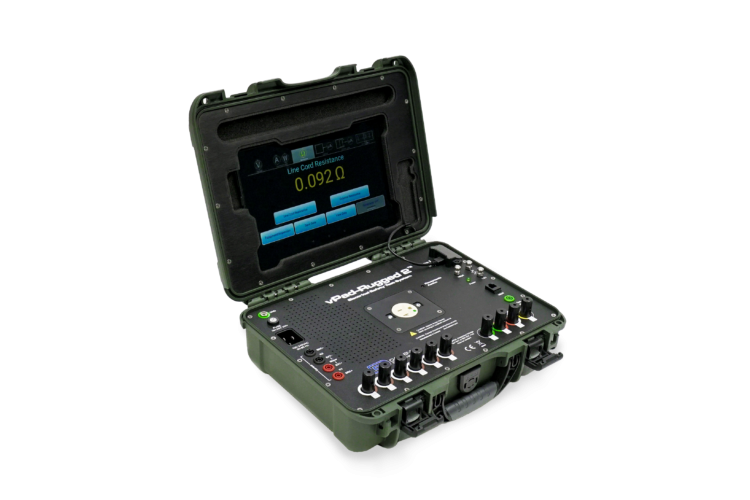

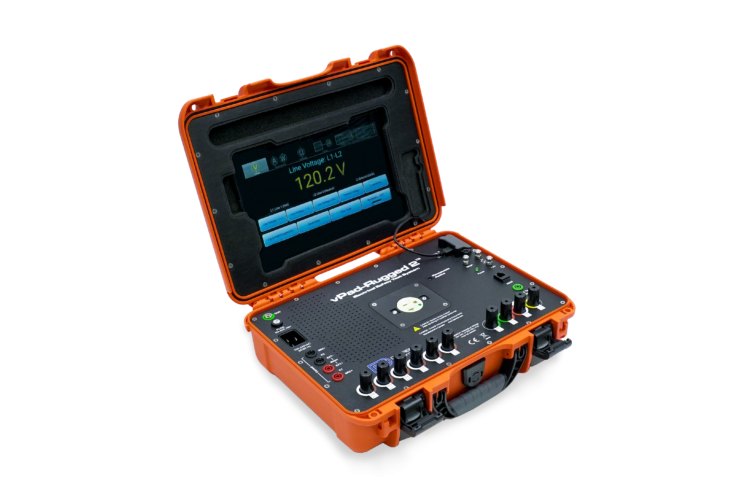

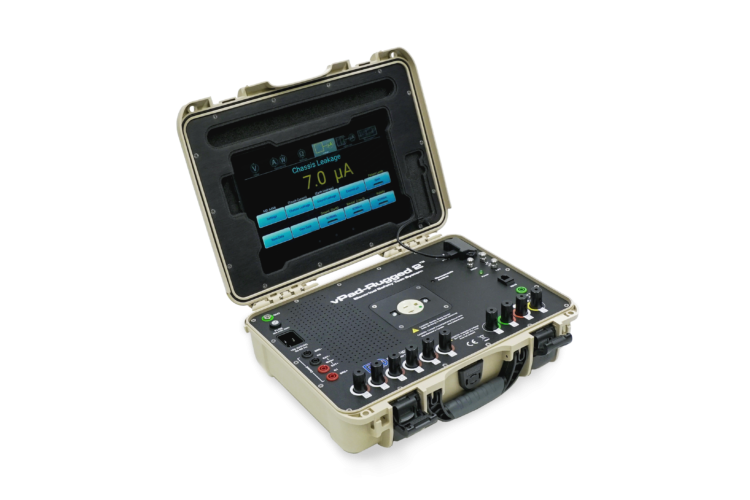

Available in Black, Tan, Orange, and Green
Standard
Manual Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1 & IEC 60601 standards
Built into a Crush Proof case that complies with ATA 300 Impact Test Standard
Waterproof to 3 feet for 30 minutes or more
Padlockable Powerclaw latching system with soft grip foldable handle
Hi-resolution Android tablet Graphical User Interface
USB connection to measurement base; Bluetooth connection to base optional
Bluetooth connectivity for transfer of files to and from local devices (PCs, tablets, cloud drives, etc.)
Extensive internal storage
Unlimited user comments in test records
Integrated ECG & Arrhythmia Simulator
Internal test record storage
Prints test result reports to optional Wi-Fi or Bluetooth printers
Increases quality, accuracy, and consistency
Optional
Automated Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1, IEC 60601 & NFPA-99 2012 standards
Can be upgraded from a basic manual tester to full automation with CMMS connectivity
Built-in Wireless enables transfer of data from remote sites to corporate CMMS systems
DACOM multi-device, serial control of external test instruments
Can be configured to retrieve test data from non-Datrend Devices
Complete test procedures available instantly
Automated Testing Sequences for defibrillators, infusion devices, patient monitors, and more
All Auto-sequences and Checklists are 100% editable for total procedural Customization
Automatic “flagging” of test results that are outside of pre-established test limits
Prints inspection stickers to optional label printers
Automation Reduces paperwork, eliminates handwritten records, standardizes medical device testing
Automation Increases efficiency – may save in excess of 50% over manual testing & hand-written records
Electrical Safety Testing Standards
NFPA 99
IEC 62353
IEC 60601
AAMI‐ES1
Safety Tests
Mains Voltage
External (point‐to‐point) Voltage
External (point‐to‐point) Micropotential
Equipment Load Current
Equipment Power Consumption
Protective Earth Resistance
External (point‐to‐point) Resistance
Equipment Leakage Current
Applied Part Leakage
Insulation Resistance
Instrument Specifications
Voltage Measurement
Mains voltage
Range: 90 to 264 V rms
Accuracy: ±(2 % of reading + 0.2 V)
External (point‐to‐point) voltage
Range: 0 to 300 V rms
Accuracy:±(1 % FS + 0.2 V)
External (point‐to‐point) micropotential
Ranges
0 to 199.9 mV rms
200 to 1,999 mV rms
2,000 to 19,999 mV rms
Accuracy: ±(1 % of reading + 1 mV)
Load Current Measurement
Ranges
0 to 1.999 A ac rms
2.00 to 20 A ac rms
Accuracy
±(2 % reading + 0.2A)
Duty cycle
0 A to 10 A, continuous
10 A to 15 A, 7 min. on/3 min. off
15A to 20 A, 5 min. on/5 min. off
Power Measurement
Range: 0 to 2400 watts
Accuracy: ±(5 % reading + 5W)
Earth Resistance Measurement
Modes: Four‐terminal, fully isolated
Test Current: 1A pulsed, 0.2A rms
Range: 0.000 to 2.000 Ω
Accuracy: ±(1 % of reading + 0.02 Ω)
Insulation Resistance Measurement
Ranges
Test Voltage: 500V and 250V
0.5 to 4.9 MΩ
5 to 49 MΩ
50 to 999.9 MΩ
Test Voltage: 100V and 50V
0.1 to 0.9 MΩ
1 to 9.9 MΩ
10 to 999.9 MΩ
Range Selection: Automatic
Accuracy
Test Voltage: 500V and 250V
5 MΩ Range: ±(1 % of reading + 0.1 MΩ)
50 MΩ Range: ±(2 % of reading + 0.2 MΩ)
50 to 500 MΩ: ±(5 % of reading + 0.2 MΩ)
Test Voltage: 100V and 50V
1 MΩ Range: ±(1 % of reading + 0.1 MΩ)
10 MΩ Range: ±(2 % of reading + 0.2 MΩ)
10 to 100 MΩ: ±(5 % of reading + 0.2 MΩ)
Test Voltage
Selections: 500V, 250V, 100V or 50V
Accuracy: ±5 % for 0 to 1 mA load
Maximum load capacitance..... 1 μF
Equipment and Applied Part Leakage Tests (vPad‐623 app)
Measurement: True RMS
Method: Direct, Alternative or Differential method
Patient Load: Per IEC 62353
Functional Group Selections: AP1; AP1 and AP2; AP3 and AP4; AP1 to AP3; AP1 to AP4; AP5 to AP10; AP1 to AP10
Chassis and Lead Leakage Tests (vPad‐ES app)
Measurement
AC+DC (True RMS)
AC only
DC only
Patient Load Selections: IEC 60601 and AAMI‐ES1
Leakage Current Measurement
Crest Factor = 3
Ranges
Direct and Alternative Methods
0.0 to 199.9 µA
200 to 1,999 µA
2,000 to 19,999 µA
Differential Method
50.0 to 199.0 µA
200 to 1,999 µA
2,000 to 19,999 µA
Accuracy
Direct and Alternative Methods
DC to 1 kHz: ±(1 % of reading + 1 µA)
1 to 100 kHz: ±(2 % of reading + 1 µA)
100 kHz to 1 MHz: ±(5 % of reading + 1 µA)
Differential Method
50.0 to 20,000 µA: ±(5 % of reading + 20 µA)
Isolation test voltage: 100 % ±5 % of AC supply
ECG Simulator
Output
Amplitude: 1 mV QRS into Lead II
Impedance: 500 ohms
Accuracy
Frequency: ±1 %
Amplitude: ±2 %
Waveforms
ECG Complex: 30, 60, 120, 180, 240 and 300 BPM
Square wave: 0.125 Hz, 2 Hz and 1 kHz
Pulse wave: 63 msec, 30PPM and 60PPM
Triangle wave: 2 Hz
Sine wave: 0.5, 10, 40, 50, 60 and 100 Hz
CMRR tests: SQR 2Hz & 1 kHz, PUL 4 sec, SIN 0.5, 50 & 60Hz
Arrhythmias: VFIB, AFIB, SVT, VTACH, PVC and ASYS
User Interface
Display: 10.1" colour LCD (1280 x 800)
User Controls: Capacitive touchscreen
Wired Connectivity: Micro USB 2.0 Type B
XBUS Interface (RJ11‐6)
Wireless Connectivity: 802.11 b/g/n
Bluetooth 2.1+ EDR
Memory Internal: 16GB Maximum †
Memory Expansion: 16GB to 32GB Micro SD Card (optional)
Modes of Operation
Manual (standard)
Automatic (accessory option)
Dimensions
Base unit: 36 x 28 x 12 cm
Tablet PC: 27 x 17 x 1.3 cm (detachable from Base Unit)
vPad‐Rugged 2 is much more than an Electrical Safety Analyzer ‐ it’s the heart of managing your Preventative Maintenance.
Using one of our CMMS Interface Apps, work orders can be downloaded at the start of the day. Automated Preventive Maintenance routines ensure that PMs are consistently carried out per OEM requirements. Completed PM records are uploaded to your CMMS to automate closure of open work orders.
Designed for the Field Service Engineering Community
Built-in Crush Proof case
Easy-to-read graphics and reports
Wireless Interface to Corporate CMMS System
Automated, Semi-Automated and Manual Electrical Safety Testing per IEC 62353, AAMI/ANSI ES-1, NFPA-99 2012, IEC 60601 and, IEC61010
Available in Black, Tan, Orange, and Green
Standard
Manual Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1 & IEC 60601 standards
Built into a Crush Proof case that complies with ATA 300 Impact Test Standard
Waterproof to 3 feet for 30 minutes or more
Padlockable Powerclaw latching system with soft grip foldable handle
Hi-resolution Android tablet Graphical User Interface
USB connection to measurement base; Bluetooth connection to base optional
Bluetooth connectivity for transfer of files to and from local devices (PCs, tablets, cloud drives, etc.)
Extensive internal storage
Unlimited user comments in test records
Integrated ECG & Arrhythmia Simulator
Internal test record storage
Prints test result reports to optional Wi-Fi or Bluetooth printers
Increases quality, accuracy, and consistency
Optional
Automated Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1, IEC 60601 & NFPA-99 2012 standards
Can be upgraded from a basic manual tester to full automation with CMMS connectivity
Built-in Wireless enables transfer of data from remote sites to corporate CMMS systems
DACOM multi-device, serial control of external test instruments
Can be configured to retrieve test data from non-Datrend Devices
Complete test procedures available instantly
Automated Testing Sequences for defibrillators, infusion devices, patient monitors, and more
All Auto-sequences and Checklists are 100% editable for total procedural Customization
Automatic “flagging” of test results that are outside of pre-established test limits
Prints inspection stickers to optional label printers
Automation Reduces paperwork, eliminates handwritten records, standardizes medical device testing
Automation Increases efficiency – may save in excess of 50% over manual testing & hand-written records
Electrical Safety Testing Standards
NFPA 99
IEC 62353
IEC 60601
AAMI‐ES1
Safety Tests
Mains Voltage
External (point‐to‐point) Voltage
External (point‐to‐point) Micropotential
Equipment Load Current
Equipment Power Consumption
Protective Earth Resistance
External (point‐to‐point) Resistance
Equipment Leakage Current
Applied Part Leakage
Insulation Resistance
Instrument Specifications
Voltage Measurement
Mains voltage
Range: 90 to 264 V rms
Accuracy: ±(2 % of reading + 0.2 V)
External (point‐to‐point) voltage
Range: 0 to 300 V rms
Accuracy:±(1 % FS + 0.2 V)
External (point‐to‐point) micropotential
Ranges
0 to 199.9 mV rms
200 to 1,999 mV rms
2,000 to 19,999 mV rms
Accuracy: ±(1 % of reading + 1 mV)
Load Current Measurement
Ranges
0 to 1.999 A ac rms
2.00 to 20 A ac rms
Accuracy
±(2 % reading + 0.2A)
Duty cycle
0 A to 10 A, continuous
10 A to 15 A, 7 min. on/3 min. off
15A to 20 A, 5 min. on/5 min. off
Power Measurement
Range: 0 to 2400 watts
Accuracy: ±(5 % reading + 5W)
Earth Resistance Measurement
Modes: Four‐terminal, fully isolated
Test Current: 1A pulsed, 0.2A rms
Range: 0.000 to 2.000 Ω
Accuracy: ±(1 % of reading + 0.02 Ω)
Insulation Resistance Measurement
Ranges
Test Voltage: 500V and 250V
0.5 to 4.9 MΩ
5 to 49 MΩ
50 to 999.9 MΩ
Test Voltage: 100V and 50V
0.1 to 0.9 MΩ
1 to 9.9 MΩ
10 to 999.9 MΩ
Range Selection: Automatic
Accuracy
Test Voltage: 500V and 250V
5 MΩ Range: ±(1 % of reading + 0.1 MΩ)
50 MΩ Range: ±(2 % of reading + 0.2 MΩ)
50 to 500 MΩ: ±(5 % of reading + 0.2 MΩ)
Test Voltage: 100V and 50V
1 MΩ Range: ±(1 % of reading + 0.1 MΩ)
10 MΩ Range: ±(2 % of reading + 0.2 MΩ)
10 to 100 MΩ: ±(5 % of reading + 0.2 MΩ)
Test Voltage
Selections: 500V, 250V, 100V or 50V
Accuracy: ±5 % for 0 to 1 mA load
Maximum load capacitance..... 1 μF
Equipment and Applied Part Leakage Tests (vPad‐623 app)
Measurement: True RMS
Method: Direct, Alternative or Differential method
Patient Load: Per IEC 62353
Functional Group Selections: AP1; AP1 and AP2; AP3 and AP4; AP1 to AP3; AP1 to AP4; AP5 to AP10; AP1 to AP10
Chassis and Lead Leakage Tests (vPad‐ES app)
Measurement
AC+DC (True RMS)
AC only
DC only
Patient Load Selections: IEC 60601 and AAMI‐ES1
Leakage Current Measurement
Crest Factor = 3
Ranges
Direct and Alternative Methods
0.0 to 199.9 µA
200 to 1,999 µA
2,000 to 19,999 µA
Differential Method
50.0 to 199.0 µA
200 to 1,999 µA
2,000 to 19,999 µA
Accuracy
Direct and Alternative Methods
DC to 1 kHz: ±(1 % of reading + 1 µA)
1 to 100 kHz: ±(2 % of reading + 1 µA)
100 kHz to 1 MHz: ±(5 % of reading + 1 µA)
Differential Method
50.0 to 20,000 µA: ±(5 % of reading + 20 µA)
Isolation test voltage: 100 % ±5 % of AC supply
ECG Simulator
Output
Amplitude: 1 mV QRS into Lead II
Impedance: 500 ohms
Accuracy
Frequency: ±1 %
Amplitude: ±2 %
Waveforms
ECG Complex: 30, 60, 120, 180, 240 and 300 BPM
Square wave: 0.125 Hz, 2 Hz and 1 kHz
Pulse wave: 63 msec, 30PPM and 60PPM
Triangle wave: 2 Hz
Sine wave: 0.5, 10, 40, 50, 60 and 100 Hz
CMRR tests: SQR 2Hz & 1 kHz, PUL 4 sec, SIN 0.5, 50 & 60Hz
Arrhythmias: VFIB, AFIB, SVT, VTACH, PVC and ASYS
User Interface
Display: 10.1" colour LCD (1280 x 800)
User Controls: Capacitive touchscreen
Wired Connectivity: Micro USB 2.0 Type B
XBUS Interface (RJ11‐6)
Wireless Connectivity: 802.11 b/g/n
Bluetooth 2.1+ EDR
Memory Internal: 16GB Maximum †
Memory Expansion: 16GB to 32GB Micro SD Card (optional)
Modes of Operation
Manual (standard)
Automatic (accessory option)
Dimensions
Base unit: 36 x 28 x 12 cm
Tablet PC: 27 x 17 x 1.3 cm (detachable from Base Unit)

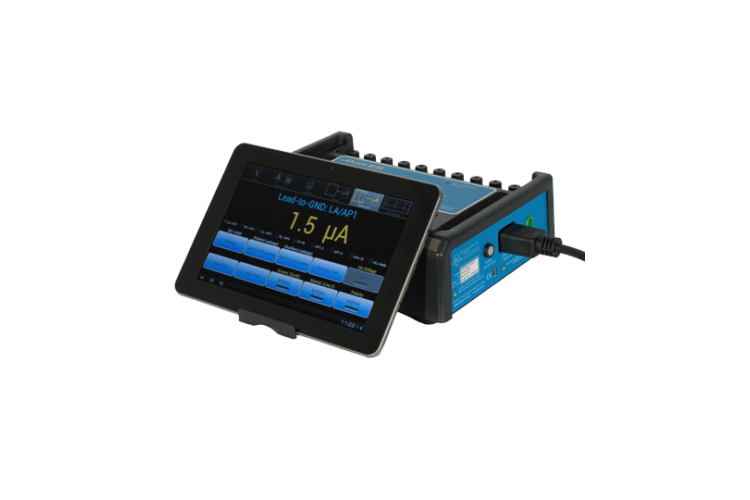

The vPad series of electrical safety testing devices combines an Android tablet (wired or wireless) with a measurement platform to create a revolutionary test system. The measurement platform provides the normal assortment of electrical measurements (voltage, current and resistance) of the commonly used medical Electrical Safety Standards.

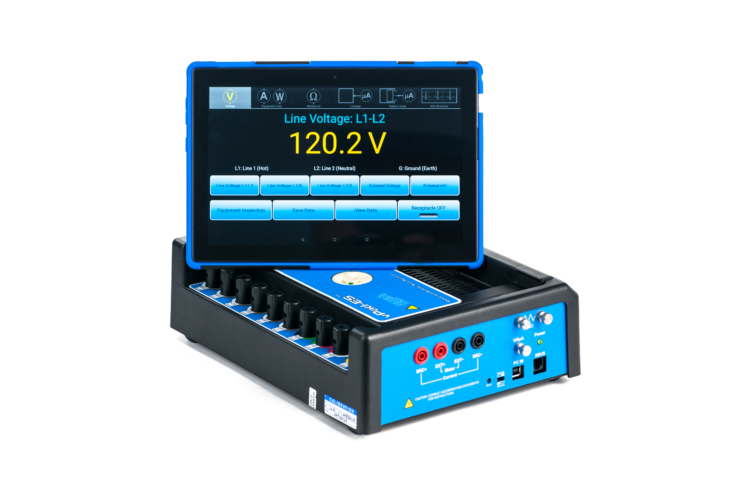

vPad-ES 2 is the desktop version of the vPad-Rugged 2, both systems having the same feature set. It has been designed for users that do not normally need to move from location to location but still require a high level of automation and CMMS connectivity.
With a large 10.1" (1920 x 1200) color display, Wi-Fi (802.11 b/g/n) and Bluetooth connectivity, USB, 32GB memory and much more, the Android tablet provides unprecedented usability and scalability for a test instrument.
Use the many benefits of Android tablet technology to optimize safety analysis
Save time, save money, save manpower!
Automate test sequences
Eliminate human error
Easy-to-read graphics and reports
Standard Features
Manual Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1 & IEC 60601 standards
Hi-resolution Android tablet Graphical User Interface
USB connection to measurement base; Bluetooth connection to base optional
Bluetooth connectivity for transfer of files to and from local devices (PC, smartphone, other tablets, etc.)
Extensive internal storage
Unlimited user comments in test records
Integrated ECG & Arrhythmia Simulator
Internal test record storage
Prints test result reports to Wi-Fi or Bluetooth printers
Increases quality, accuracy, and consistency
Optional Features
Automated Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1, IEC 60601 & NFPA-99 2012 standards
Can be upgraded from a basic manual tester to full automation with CMMS connectivity
Built-in wireless enables transfer of data from remote sites to corporate CMMS systems
DACOM multi-device, serial control of external test instruments
Can be configured to retrieve test data from non-Datrend Devices
Complete test procedures available instantly
Automated Testing Sequences for defibrillators, infusion devices, patient monitors, and more
All Auto-sequences and Checklists are 100% editable for total procedural Customization
Automatic “flagging” of test results that are outside of pre-established test limits
Prints inspection stickers to optional label printers
Automation Reduces paperwork, eliminates handwritten records, standardizes medical device testing
Automation Increases efficiency – may save in excess of 50% over manual testing & hand-written records
Electrical Safety Testing Standards
NFPA 99
IEC 62353
IEC 60601
AAMI-ES1
Safety Tests
Mains Voltage
External (point-to-point) Voltage
External (point-to-point) Micropotential
Equipment Load Current
Equipment Power Consumption
Protective Earth Resistance
External (point-to-point) Resistance
Equipment Leakage Current
Applied Part Leakage
Insulation Resistance
Instrument Specifications
Voltage Measurement
Mains voltage
Range: 90 to 264 V rms
Accuracy: ±(2 % of reading + 0.2 V)
External (point-to-point) voltage
Range: 0 to 300 V rms
Accuracy: ±(1 % FS + 0.2 V)
External (point-to-point) micropotential
Ranges
0 to 199.9 mV rms
200 to 1,999 mV rms
2,000 to 19,999 mV rms
Accuracy: ±(1 % of reading + 1 mV)
Load Current Measurement
Ranges
0 to 1.999 A ac rms
2.00 to 20 A ac rms
Accuracy: ±(2 % reading + 0.2A)
Duty cycle
0 A to 10 A, continuous
10 A to 15 A, 7 min. on/3 min. off
15A to 20 A, 5 min. on/5 min. off
Power Measurement
Range: 0 to 2400 watts
Accuracy: ±(5 % reading + 5W)
Earth Resistance Measurement
Modes: Four-terminal, fully isolated
Test Current: 1A pulsed, 0.2A rms
Range: 0.000 to 2.000 Ω
Accuracy: ±(1 % of reading + 0.02 Ω)
Insulation Resistance Measurement
Ranges
Test Voltage: 500V and 250V
0.5 to 4.9 MΩ
5 to 49 MΩ
50 to 999.9 MΩ
Test Voltage: 100V and 50V
0.1 to 0.9 MΩ
1 to 9.9 MΩ
10 to 999.9 MΩ
Range Selection: Automatic
Accuracy
Test Voltage: 500V and 250V
5 MO Range: ±(1 % of reading + 0.1 MΩ)
50 MO Range: ±(2 % of reading + 0.2 MΩ)
50 to 500 MO: ±(5 % of reading + 0.2 MΩ)
Test Voltage: 100V and 50V
1 MO Range: ±(1 % of reading + 0.1 MΩ)
10 MO Range: ±(2 % of reading + 0.2 MΩ)
10 to 100 MO: ±(5 % of reading + 0.2 MΩ)
Test Voltage
Selections: 500V, 250V, 100V or 50V
Accuracy: ±5 % for 0 to 1 mA load
Maximum load capacitance: 1 µF
Equipment and Applied Part Leakage Tests (vPad-623 app)
Measurement: True RMS
Method: Direct, Alternative or Differential method
Patient Load: Per IEC 62353
Functional Group Selections:
AP1; AP1 and AP2; AP3 and AP4; AP1 to AP3;
AP1 to AP4; AP5 to AP10; AP1 to AP10
Chassis and Lead Leakage Tests (vPad-ES app)
Measurement: AC+DC (True RMS)
AC only
DC only
Patient Load Selections: IEC 60601 and AAMI-ES1
Leakage Current Measurement
Crest Factor: = 3
Ranges: Direct and Alternative Methods
0.0 to 199.9 µA
200 to 1,999 µA
2,000 to 19,999 µA
Differential Method
50.0 to 199.0 µA
200 to 1,999 µA
2,000 to 19,999 µA
Accuracy: Direct and Alternative Methods
DC to 1 kHz: ±(1 % of reading + 1 µA)
1 to 100 kHzΩ: ±(2 % of reading + 1 µA)
100 kHz to 1 MHz: ±(5 % of reading + 1 µA)
Differential Method
50.0 to 20,000 µA: ±(5 % of reading + 20 µA)
Isolation test voltage: 100 % ±5 % of AC supply
ECG Simulator
Output
Amplitude: 1 mV QRS into Lead II
Impedance: 500 ohms
Accuracy
Frequency: ±1 %
Amplitude: ±2 %
Waveforms
ECG Complex: 30, 60, 120, 180, 240 and 300 BPM
Square wave: 0.125 Hz, 2 Hz and 1 kHz
Pulse wave: 63 msec, 30PPM and 60PPM
Triangle wave: 2 Hz
Sine wave: 0.5, 10, 40, 50, 60 and 100 Hz
CMRR tests: SQR 2Hz & 1 kHz, PUL 4 sec, SIN 0.5, 50 & 60Hz
Arrhythmias: VFIB, AFIB, SVT, VTACH, PVC and ASYS
User Interface
Display: 10.1" colour LCD (1280 x 800)
User Controls: Capacitive touchscreen
Wired Connectivity
Micro USB 2.0 Type B
XBUS Interface (RJ11-6)
Wireless Connectivity
802.11 b/g/n
Bluetooth 2.1+ EDR
Memory Internal: 16GB Maximum †
Memory Expansion: 16GB to 32GB Micro SD Card (optional)
Modes of Operation
Manual (standard)
Automatic (accessory option)
Dimensions
Base unit: 11.8 x 8.9 x 3.3 in. (30 x 23 x 8.4 cm)
Tablet PC: 10.5 x 6.7 x 0.5 in. (27 x 17 x 1.3 cm), (detachable from Base Unit)

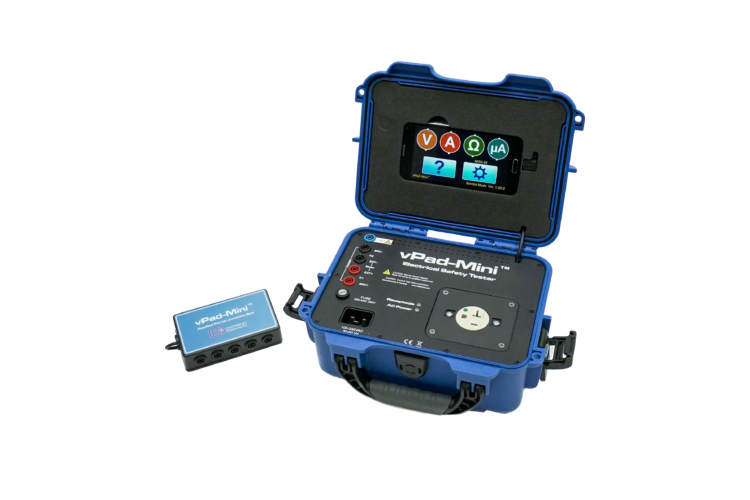

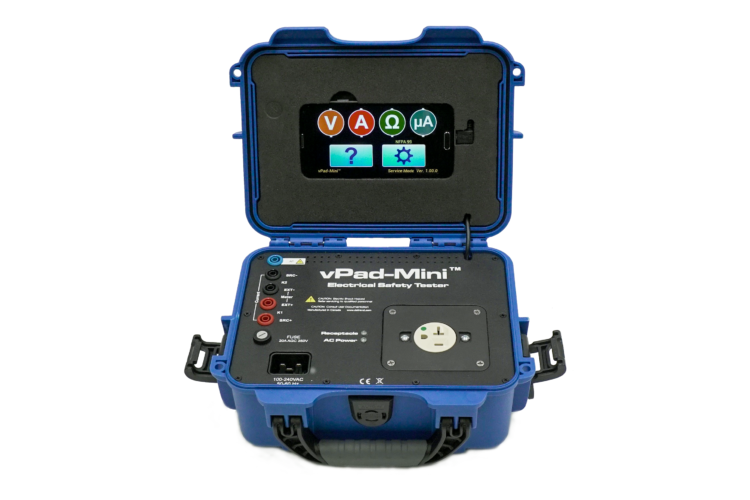

vPad-Mini enables Clinical and Field Service Engineers to quickly perform basic electrical safety checks on all types of medical equipment, ranging from beds to patient monitors with applied parts.
Although simple and easy to use, vPad-Mini is nonetheless capable of performing many of the tests specified in electrical safety standards such as AAMI-ES1, NFPA 99, IEC 60601, IEC 62353 and IEC 61010.

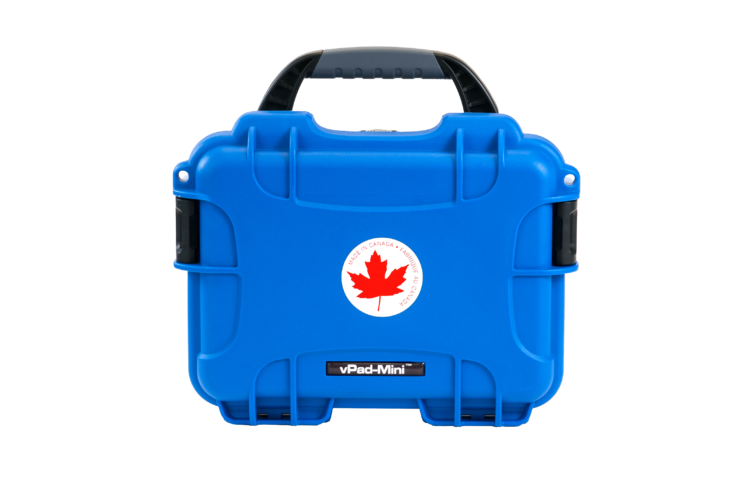

Providing a watertight rugged plastic case and a user interface based on a 5" Android smartphone, vPad-Mini is based on the existing vPad Rugged product. Although significantly smaller than vPad Rugged, vPad-Mini provides the same 20 ampere rating and measurement accuracy.
Applied Parts Testing including Mains On Applied Part
Optional Record Management and Printing
Available Automatic Test Sequences
Small footprint: 21 x 15 x 9.4 cm (8.4 x 6 x 3.7 in)
Electrical Safety Testing Standards
ANSI/AAMI-ES1
NFPA 99
IEC 60601
IEC 62353
IEC 61010
Safety Tests
Line or Mains Voltage
Point-to-Point Voltage
Accessible Voltage (IEC 61010)
Equipment Load Current
Power Cord or Protective Earth (PE) Resistance
Point-to-Point Resistance
Enclosure or Chassis Leakage Current (AAMI-ES1; NFPA 99)
Touch Current (IEC 60601; IEC 61010)
Earth Leakage Current (AAMI-ES1; IEC 60601)
Equipment Leakage Current (IEC 62353)
Point-to-Point Leakage Current
Lead Leakage to Ground or Patient Leakage (NFPA 99; AAMI-ES1; IEC 60601)
Lead Isolation or MAP Test (AAMI-ES1; IEC 60601; IEC 62353)
Instrument Specifications
Voltage Measurement
Line or mains voltage
Range: 90 to 264 V rms
Accuracy: ±(2 % of reading + 0.2 V)
Point-to-point voltage
Range: 0 to 300 V rms
Accuracy: ±(1 % FS + 0.2 V)
Accessible voltage
Range: 0 to 150 V rms Accuracy: ±(1 % FS + 0.2 V)
Load Current Measurement
Ranges
0 to 1.999 A ac rms
2.00 to 19.99 A ac rms
Accuracy: ±(2 % reading + 0.2A)
Duty cycle
0 A to 10 A, continuous
10 A to 15 A, 7 min. on/3 min. off
15A to 20 A, 5 min. on/5 min. off
Resistance Measurement
Mode: Four-terminal, fully isolated
Test Current: 1A pulsed, 0.2A rms
Range: 0.000 to 2.000 ohm
Accuracy: ±(1 % of reading + 0.01 ohm)
Leakage Current Measurement
Mode: True-RMS
Patient Load Selection: AAMI or IEC
Crest factor: =3
Ranges
0.0 to 199.9 µA
200 to 1,999 µA
2.0 to 19.99 mA
Accuracy
DC to 1 kHz: ±(1 % of reading + 1 µA) 1 to 100 kHz: ±(2 % of reading + 1 µA) 100 kHz to 1 MHz: ±(5 % of reading + 1 µA) Isolation test voltage: 100 % ±5 % of AC supply
