Infusion Device Analyzer

vPad-IV
vPad-IVvPad-IVvpad-iv-2_750x500vpad-iv-3_750x500vpad-iv-4_750x500vpad-iv-5_750x500vpad-iv-6_750x500
  Ultimate Infusion Device Analyzer Field configuration between 1-6 channels Large Intuitive User Interface Simple Automatic Pass/Fail Testing Built-in Autosequence Editor Full range class-leading accuracy from 0.1 – 3000 ml/hr Conforms to all IEC 60601-2-24 test requirements vPad-IV is ...Read more

Infusion Device Analyzer


  • Description
  • Specifications



Ultimate Infusion Device Analyzer

  • Field configuration between 1-6 channels
  • Large Intuitive User Interface
  • Simple Automatic Pass/Fail Testing
  • Built-in Autosequence Editor
  • Full range class-leading accuracy from 0.1 – 3000 ml/hr
  • Conforms to all IEC 60601-2-24 test requirements

vPad-IV is the most advanced Infusion Device Analyzer on the market today.

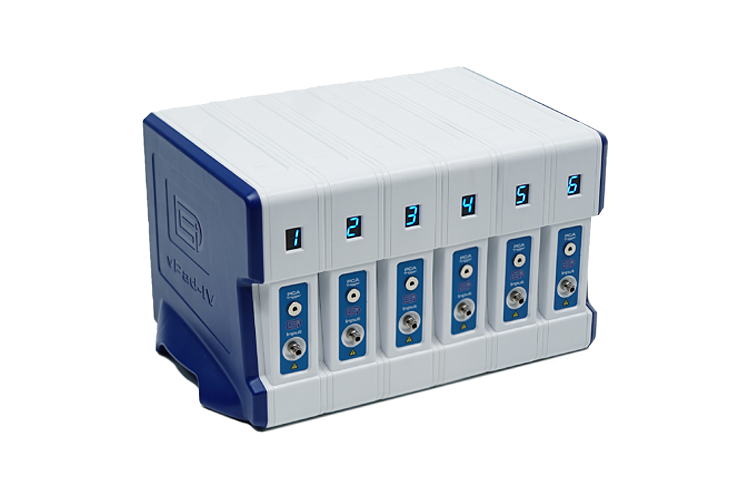

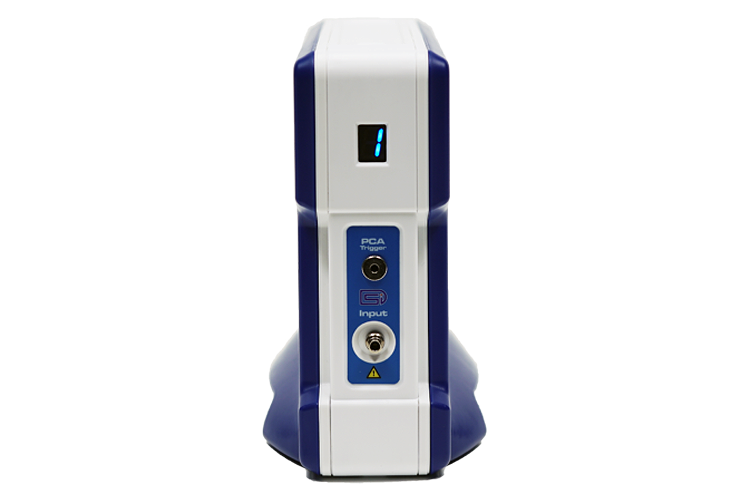

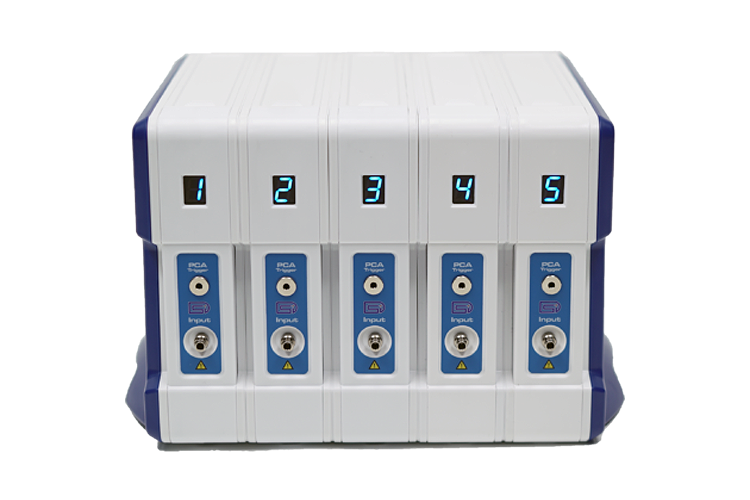

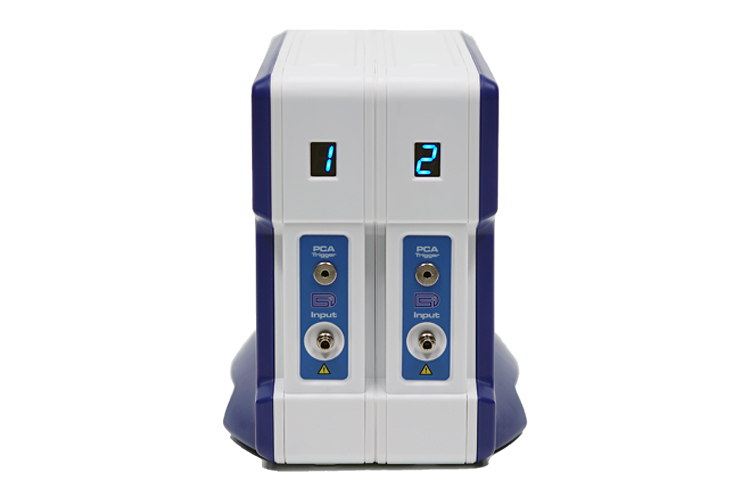

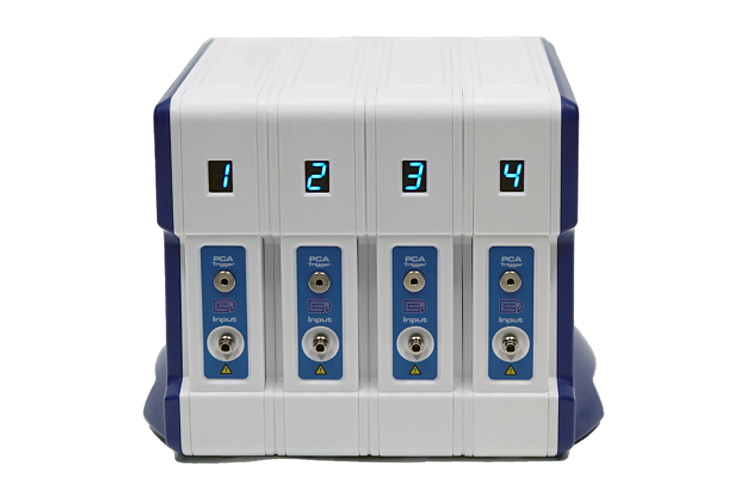

Its unique yet simple slide-and-click modular system will allow users to arbitrarily configure each analyzer between 1 – 6 channels. Meaning you could start with a single channel today and add more testing capabilities over time to increase your testing throughput since simultaneous testing can be done on all available channels. The modular system will also allow you to send an individual channel to an authorized service center for annual calibration while minimizing your down-time, or perhaps you wanted to reconfigure your vPad-IV into a portable unit before visiting an offsite location.

vPad-IV conforms to all IEC 60601-2-24 test requirements for Infusion Pumps & Pump Controllers. In addition to the expected flow and volume testing, vPad-IV comes standard with dual-rate (Keep-Vein-Open/Piggyback) testing, PCA pump testing with built-in trigger, Occlusion Pressure testing, and even Channel-Linking for multi-channel infusion devices.

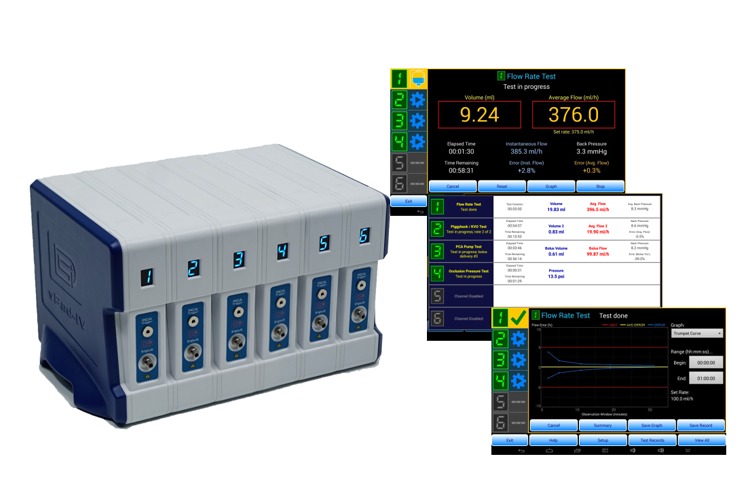

With its large 10” LCD touch screen, vPad-IV is both intuitive and easy-to-use. Users could choose between Test View where all available measurements are continuously updated, Graph View with multiple live graphs to choose from, and All-Channel View to monitor test progress for all available channels. Further, Trumpet Curve and statistical analysis can be done directly on the tablet without using a PC

vPad-IV includes a built-in Autosequence Editor which allows users to create and modify automatic test sequences to best fit their organizational testing needs to not only test consistently for infusions pumps they need to maintain, but also allow increased efficiency and consistent testing between users within the organization. Each Autosequence can be configured to include any combination of tests available from vPad-IV, as well as informational prompt messages and pass/fail check items that are often necessary during Preventive Maintenance or post-repair testing. With auto recall of past tests for the same asset, your efficiency will increase even more over time.

vPad-IV comes standard with many features our vPad customers are familiar with such as video instructions, built-in user managed service manuals, test record management, cloud integration, remote upgrade, screen-share support, and much more.  And as the name suggests, vPad-IV is fully compatible with Datrend’s Vision-Pad platform, by allowing control from a vPad-ES or vPad-Rugged Electrical Safety Analyzer, users can create a multi-device test environment to include results from electrical safety testing, test equipment used during tests with calibration data, and results from an expanded checklist all on a single test report.

  • Conforms to all IEC 60601-2-24 test requirements for Infusion Pumps & Pump Controllers
  • Modular, expandable system can be arbitrarily configured as 1 to 6 channels
  • Completely independent channels enable differing tests and inspections to be executed simultaneously
  • Automatic or Manual Flow, Piggyback/KVO, PCA Pumps, and Occlusion Pressure tests
  • Automated test setups provide user-defined pass/fail conditions
  • User-managed test sequences combine PM Checklists and Automated Testing
  • Large 10” high-resolution LCD touch screen
  • Integrates with existing vPad platform
  • Full-range class-leading accuracy from 0.1 – 3000 ml/hr





Flow Measurement †

  • Nominal range: 0.1 - 3000 ml/hr
  • Maximum flow displayed: 3200 ml/hr
  • Minimum flow displayed: 0.01 ml/hr
  • Maximum display resolution: 0.001 ml/hr
  • Accuracy (Average flow):
  • ±(1% + 0.005 ml/hr) at 0.1 - 9.9 ml/hr for volume > 100µl;
  • ±1% at 10 - 1200 ml/hr for volume > 1 ml;
  • ±2% at 1201 - 3000 ml/hr for volume > 10 ml



Volume Measurement

  • Range: 0.02 - 9999 ml
  • Accuracy:
    • ±(1% + 1 LSD) at 0.1 - 9.9 ml/hr for volume > 100µl;
    • ±(1% + 1 LSD) at 10 - 1200 ml/hr for volume > 1 ml;
    • ±(2% + 1 LSD) at 1201 - 3000 ml/hr for volume > 10 ml
  • Maximum display resolution: 0.01 ml



Elapsed Time Measurement

  • Range: 0 - 240 hours
  • Accuracy: ±0.5 second
  • Display format: HHH:MM:SS



PCA Pump or Piggyback (KVO) Measurement †

  • Range: See Volume Measurement above
  • Minimum Detectable Bolus or Dose: 0.5 ml
  • Bolus or Dose Uncertainty: ±10 µl for volume > 0.5 ml



PCA Lockout Time Measurement

  • Range: 1 - 240 minutes
  • Accuracy: ±0.05 minutes



PCA Pump Trigger Outputs:

  • Mechanical: 3.5 mm mono phono jack
  • Electrical: SPST NO relay contact, 30V, 300 mA



Pressure Measurement

  • Range: -260 to +2600 mmHg (-5 to +50 psi)
  • Accuracy: ±(1% + 5 mmHg)
  • Units of measure: mmHg, psi, bar, mbar, kPa, in. H2O, torr
  • Barometric compensation: 715 to 1095 mbar



Fluid Interface

  • Luer lock female (Front)
  • Barbed fitting for 1/8” ID tubing (Rear)



User Interface

  • High-Resolution Android 10.1” Tablet with Wi-Fi and Bluetooth
  • (Optional) Bluetooth compatible barcode scanner, keyboard, & mouse



Additional Analyzer Interfaces

  • Primary Module (Controller):
    • USB Type A (host) - Charging and communication to a vPad tablet
    • USB Type B (device) - Connection to PC
    • RJ45 - vPad-IV communication bus for multi-channel systems
    • RJ12 (DACOM XBUS) - Communication with other Datrend products
    • Bluetooth - Communication to a vPad tablet (standard feature)
  • Secondary Module:
    • RJ45 (2x) - vPad-IV communication bus



IEC Standards

Enables testing per IEC 60601-2-24: Particular requirements for the basic safety and essential performance of infusion pumps and controllers



Standard Apps ‡

vPad-IV - Provides automatic and manual infusion pump testing  Record Manager - Full-featured test record management system  Datrend Docs - PDF management app for user and service manuals  QuickSupport (TeamViewer) - Tool for remote support and training



vPad-IV App Key Features

  • Execute up to 6 infusion device PM inspections simultaneously
  • Individual Channel and All-Channel Views
  • Manual or Automatic Testing (Flow, Piggyback/KVO, PCA, Occlusion)
  • User-configured test criteria enables automatic test pass/fail
  • User-managed AutoSequences to combine PM checklist steps with automated performance tests
  • Channel Linking merges test results of multi-channel pumps into one report
  • Auto-recall equipment information and test or PM procedure based on inventory Control Number
  • Real-time test graphs and on-device Trumpet Curve analysis… No PC software required



Power Supply

  • 100 - 240 VAC 50/60 Hz @ 60 W



Dimensions & Weights

  • 1 CH 11.2 x 20.0 x 23.6 cm (4.4 x 7.9 x 9.3 in.) @ 1.34 kg (2.95 lbs.)
  • 2 CH 16.3 x 20.0 x 23.6 cm (6.4 x 7.9 x 9.3 in.) @ 2.32 kg (5.10 lbs.)
  • 3 CH 21.3 x 20.0 x 23.6 cm (8.4 x 7.9 x 9.3 in.) @ 3.30 kg (7.25 lbs.)
  • 4 CH 26.4 x 20.0 x 23.6 cm (10.4 x 7.9 x 9.3 in.) @ 4.28 kg (9.40 lbs.)
  • 5 CH 31.5 x 20.0 x 23.6 cm (12.4 x 7.9 x 9.3 in.) @ 5.26 kg (11.55 lbs.)
  • 6 CH 36.6 x 20.0 x 23.6 cm (14.4 x 7.9 x 9.3 in.) @ 6.24 kg (13.70 lbs.)



Environment

  • Operating Temp: 15°C to 40°C
  • Storage Temp: -20°C to 50°C
  • Relative Humidity: 10% to 90% non-condensing
  • Indoor Use Only, Category II
  • Max. Altitude 3000 m



† For continuous flow conditions only
‡ Apps listed are those most commonly used, other standard Apps in supporting roles are not listed
