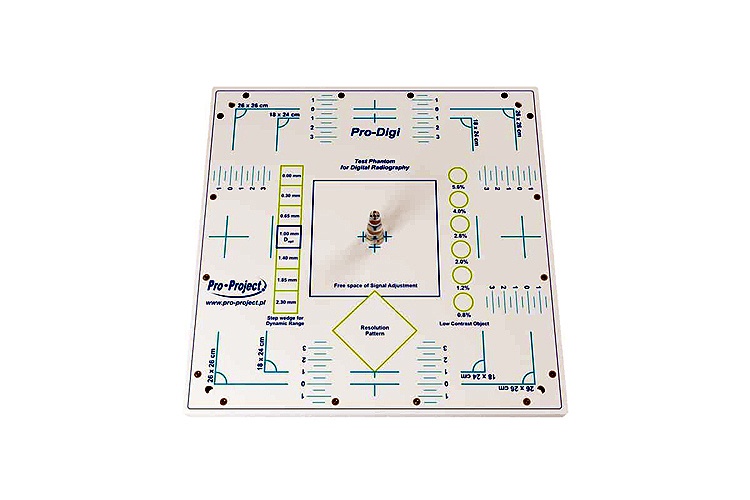

The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.
It can be used to measure:
- Collimation / beam alignment
- Position and size of the effective radiation field
- Dynamic range
- Spatial resolution
- Contrast resolution
- homogeneity
Technical data:
- Dimensions: 310 x 310 x 14 mm
- 1 mm thick copper plate embedded in PMMA
- 7-step copper wedge
- 6 low contrast elements
- Free area for signal calibration
- Markings to determine the size and position of the effective radiation field
- Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
- Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
|
