Pro-RF Geometry

pro-rf_geometry_750x500
  This device readily indicates a 1% or 2% misalignment at a 1 m focal-film distance (FFD), but it can be used at any FFD. It consists of a flat 20 x 25 cm plate with a 14 x 18 cm pattern etched on its surface. It can also be used to check fluoroscopy alignment and collimation. A steel ball is mou ...Read more



  • Description
  • Specifications

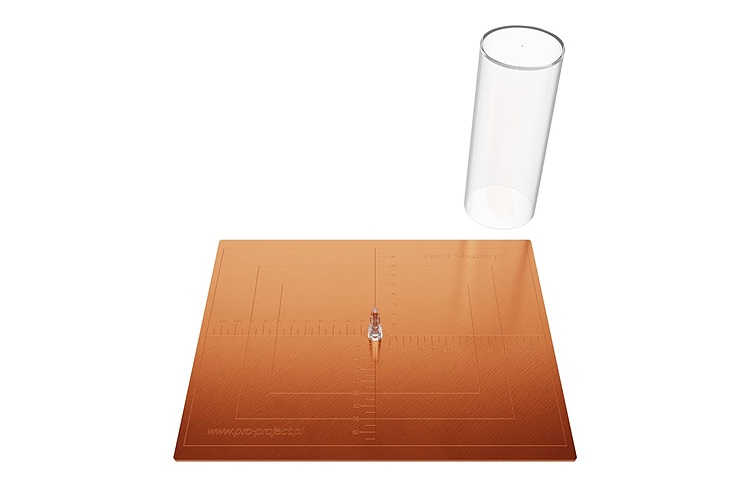

This device readily indicates a 1% or 2% misalignment at a 1 m focal-film distance (FFD), but it can be used at any FFD. It consists of a flat 20 x 25 cm plate with a 14 x 18 cm pattern etched on its surface. It can also be used to check fluoroscopy alignment and collimation.

A steel ball is mounted in the center of a disc at each end of the 15 cm high clear plastic cylinder. When the balls are positioned over one another and at the right angle to the film, their images will appear as one if the central ray is truly perpendicular to the film. The approximate degree of improper angulation can also be determined.



Technical data:

  • Dimensions: 200 x 250 mm
  • Copper plate with engraved 5 mm scale
  • 150 x 60 mm cylinder with a steel ball embedded in the center of its bases – beam alignment
  • Cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5° (option, instead of the cylinder – for simpler measurements)





02-105 - Pro-RF Geometry Cone
02-106 - Pro-RF Geometry Cylinder



Product features:

  • Complies with:
    • IEC 61223-3-3
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
