Pro-Dent Set

pro-dent_set_750x500
pro-dent_set_750x500pro-dent_usage_750x500
  The Pro-Dent set is a universal set of phantoms for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic and cephalometric). This is not an all-in-one device where results of tests blur each other out. This is the only solution on the ...Read more



  • Description
  • Specifications



The Pro-Dent set is a universal set of phantoms for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic and cephalometric).

This is not an all-in-one device where results of tests blur each other out. This is the only solution on the market that makes it possible to measure the X-ray beam collimation with a dental film or a digital detector.

With the Pro-Dent set you can do the following tests:

  • Dose reproducibility
  • Development process stability
  • Perpendicular X-ray beam (range 0° ÷ 1.5°)
  • Limitation and alignment of the X-Ray beam (including beam radius measurement)
  • Spatial / line pair resolution (perpendicular, parallel and rotated 45° to anode-cathode line)
  • Low contrast resolution



Pro-Dent Alpha phantom

  • 3 step wedge (first step made of copper foil 0.3 mm thick, the next ones are made of polytetrafluoroethylene 8 mm and 16 mm thick)
  • cover made of PMMA

Pro-Dent Beta phantom (optional)

  • Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
  • Pattern for beam radius estimation
  • Cover made of PMMA

Pro-Dent Gamma phantom

  • Pattern for line pair resolution evaluation (from 4 to 8 LP/mm)
  • Optional second pattern for line pair resolution evaluation (from 1.6 to 3 LP/mm) – OPG units
  • Four holes in 0.5 mm Al foil for low contrast resolution tests
  • Additional 6 mm aluminium filter
  • Cover made of PMMA


Accesories:

  • 0.8 mm copper filter – patient’s head equivalent
  • Positioning stand with a space for an analogue film or a digital detector

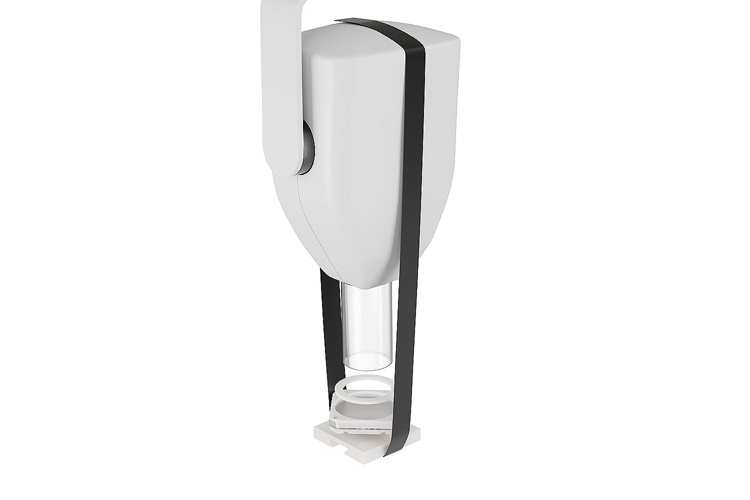

  • Band for firm, perpendicular attachment of the phantom to the X-Ray unit’s beam applicator
  • Rings for centering phantoms on the X-Ray unit’s beam applicator
  • CD with documentation
  • Elegant and convenient box for storing phantoms





01-201 - intra-oral devices
01-203 - intra-oral and OPG devices



Product features:

  • Complies with:
    • OEC 61223-2-7 and IEC 61223-3-4
    • DIN 6868-5 and DIN V 6868-151
    • ÖNORM S 5240-5 and ÖNORM S 5240-11
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
