Pro-MAM Performance

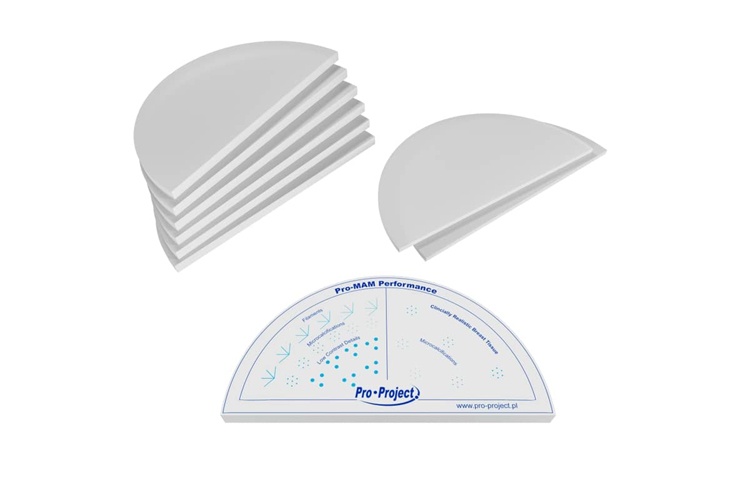

pro-mam_performance_750x500
  The phantom designed to be used for routine quick and ongoing checks of imaging performance of mammography systems. It allows evaluating particularly those aspects which are most liable to deterioration.   Technical data: 240 mm diameter semicircle First half of the test module contains: ...Read more



  • Description
  • Specifications



The phantom designed to be used for routine quick and ongoing checks of imaging performance of mammography systems. It allows evaluating particularly those aspects which are most liable to deterioration.



Technical data:

  • 240 mm diameter semicircle
  • First half of the test module contains:
    • 6 groups of 10 mm long multi-directional filaments of the following diameters: 0.40, 0.35, 0.30, 0.25, 0.225, 0.20 mm
    • 6 groups of microcalcifications in the following ranges: 354-224, 283-180, 226-150, 177-106, 141-90, 106-63 µm
    • 6 groups of 3 low contrast details, 3mm in diameter, producing nominal contrast at 28 kVp of: 0.04, 0.03, 0.02, 0.015, 0.01, 0.005 (each contrast is presented 3 times)
  • Second half of the test module contains:
    • Clinically realistic breast tissue (not tissue equivalent to but simulating the appearance of the breast tissue) containing 6 groups of low contrast details with the same specifications as in the other half
  • 6 PMMA plates 10 mm thick
  • 2 PMMA plates 5 mm thick
  • Carrying case





Product features:

  • Complies with:
    • IEC 61223-3-2
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
