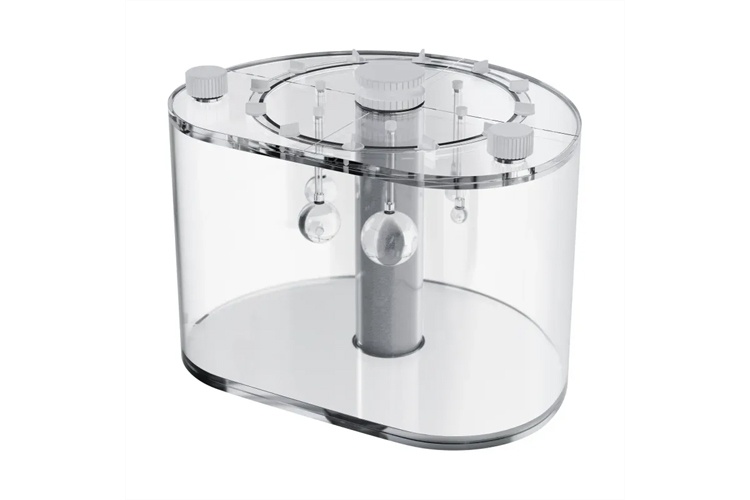

This SPECT dedicated phantom can be used to produce images similar to those obtained in a whole body tomographic imaging study, with hot and cold lesions and a large cold region representing the lung.
The phantom can be used for measure contrast of hot and cold spheres, variability of the (constant) background regions and overall reconstruction accuracy. It has been designed in accordance with the recommendations by the International Electrotechnical Commission (IEC) and modified by the National Electrical Manufacturers Association (NEMA).
Accessories:
Optional heavy duty carrying case (08-105-CS)
Pro-NM AutoMixer (08-199)
Product features:
Complies with:
NEMA NU1 - 2018 / IEC 61675-2:2015 (except sphere configuration)
NEMA NU1 - 2012 / IEC 2008
CE certified
The manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specification):
Interior length of phantom: 180 mm
Volume of empty cylinder: 9,7 liters
6 fillable spheres with inner dimensions: 13 mm, 17 mm, 22 mm, 28 mm, 28 mm, 37 mm,
This SPECT dedicated phantom can be used to produce images similar to those obtained in a whole body tomographic imaging study, with hot and cold lesions and a large cold region representing the lung.
The phantom can be used for measure contrast of hot and cold spheres, variability of the (constant) background regions and overall reconstruction accuracy. It has been designed in accordance with the recommendations by the International Electrotechnical Commission (IEC) and modified by the National Electrical Manufacturers Association (NEMA).
Accessories:
Optional heavy duty carrying case (08-105-CS)
Pro-NM AutoMixer (08-199)
Product features:
Complies with:
NEMA NU1 - 2018 / IEC 61675-2:2015 (except sphere configuration)
NEMA NU1 - 2012 / IEC 2008
CE certified
The manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specification):
Interior length of phantom: 180 mm
Volume of empty cylinder: 9,7 liters
6 fillable spheres with inner dimensions: 13 mm, 17 mm, 22 mm, 28 mm, 28 mm, 37 mm,
The phantom for evaluating performance of positron emission tomographs (PET). Recommended for use in the evaluation of reconstructed image quality in whole body PET imaging.
For simulation of whole-body imaging especially using PET and camera-based coincidence imaging techniques.
Can also be used for determination of the coincidence count rate characteristics in brain and cardiac imaging, evaluation of the relationship between true coincidence count rate and radioactivity, determination of the address errors caused by address pile up, evaluation of the count loss correction scheme.
It has been designed in accordance with the recommendations by the International Electrotechnical Commission (IEC) and modified by the National Electrical manufacturers Association (NEMA).
Product features:
Complies with:
International Standard: Radionuclide imaging devices – Characteristics and test conditions – Part 1: Positron emission tomographs, International Electrotechnical Commission (IEC), 61675-1, Geneva, Switzerland, 1998.
Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU2, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2001.
NEMA2007/IEC2008
NEMA 2012/IEC 2008
CE certified
The manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
Interior length of the phantom: 180 mm
Volume of empty cylinder: 9.7 liters
6 fillable spheres:
Inner diameter: 10 mm, 13 mm, 17 mm, 22 mm, 28 mm, and 37 mm
