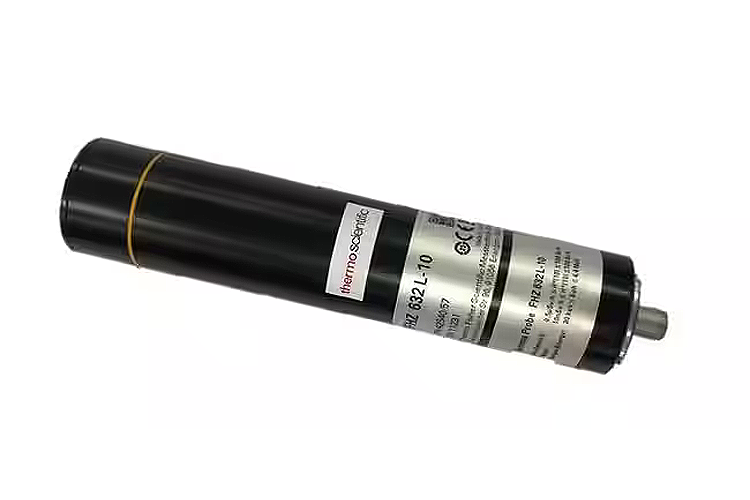

FHZ 632L-10 Gamma Detector

fhz_632l-10_750x500
  The FHZ 632 L-10 Gamma Detector with a proportional counter tube is used for highly sensitive dose rate measurement of X-ray and gamma radiation. Measuring Range: 10 µR/h - 10 R/h (100 nSv/h - 100 mSv/h). Sensitivity: Approx. 20 s-1/(mR/h) [2 s-1/(µSv/h)]. Energy Range 30 keV - 4.4 MeV. Energy r ...Read more



  • Description
  • Specifications



The FHZ 632 L-10 Gamma Detector with a proportional counter tube is used for highly sensitive dose rate measurement of X-ray and gamma radiation.

Measuring Range: 10 µR/h - 10 R/h (100 nSv/h - 100 mSv/h). Sensitivity: Approx. 20 s-1/(mR/h) [2 s-1/(µSv/h)]. Energy Range 30 keV - 4.4 MeV. Energy response according to ambient dose equivalent rate H*(10).





Description FHZ 632 L--10 Dose Rate Detector
Detector Type Proportional
Measurement Range 10 nSv/h to 100 mSv/h
Sensitivity 2 cps/(µSv/h)
Weight (Metric) 185 g
Energy Range 30 keV to 4.4 MeV
Range IP67
Storage Temperature (Metric) - 40°C to + 70°C
Product Type Dose Rate Detector
Dimension (Metric) Diameter: 35 mm Length: 162 mm (without plug-in connection)
Operating Limit Temperature Range (Metric) - 30°C to + 55°C
Protection Class IP67
Unit Size Each
