TPM-903B Transportable Radiation Portal Monitor

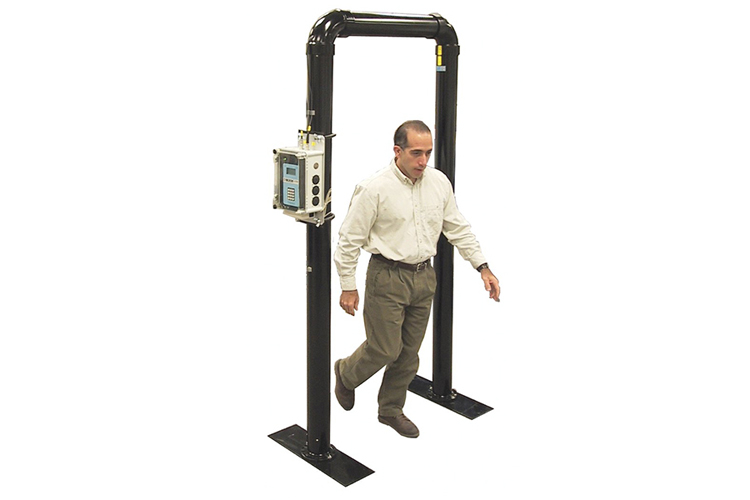

tpm-903b_750x500
  Get head-to-toe radiation screening in any emergency response or hazmat situation with the fast, flexible Thermo Scientific™ TPM-903B Transportable Radiation Portal Monitor. The TPM-903B portal monitor is a lightweight, portable gamma and beta radiation detector equally suited for either permanen ...Read more



  • Description
  • Specifications



Get head-to-toe radiation screening in any emergency response or hazmat situation with the fast, flexible Thermo Scientific™ TPM-903B Transportable Radiation Portal Monitor. The TPM-903B portal monitor is a lightweight, portable gamma and beta radiation detector equally suited for either permanent or temporary installation to screen personnel without the need for excessive searches of hand carried items or vehicles. The aperture provides maximum coverage of pedestrians, wheelchairs, walkers, ambulance gurneys and strollers, and can be easily adapted as a vehicle monitor.





Power Requirements 90 VAC to 264 VAC, 47 Hz to 63 Hz, 50 VA, or six alkaline D-cells
User Interface Keypad
Weight (English) 90 lb.
Weight (Metric) 40 kg
Description Transportable Radiation Portal Monitor
Display Type Visible: Green “ready/clear” light; red “alarm/fault” light
Audible: Loud signal
Operating Temperature (English) -4°F to +122°F
Operating Temperature (Metric) -20°C to 50°C
Energy Range 60 keV to 2 MeV
Measurement Time Walk through time: 2 sec.
Sensitivity 1 µCi under ambient conditions (RDA); 137Cs
Size (Metric) 2310 x 930 x 610 mm (91 x 36.5 x 24 in) assembled
2032 x 457 x 457 mm (80 x 18 x 18 in) packed in carrying bag
