Tungsten Eye Shield, EXTRA SMALL, 2 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 11.6 mm
- Dimension (B) O.D. Shield: 15.7 mm
- Dimension (C) O.D. with 0.5mm Cap: 16.8 mm
- Dimension (D) O.D. with 1.0mm Cap: 17.9 mm
|

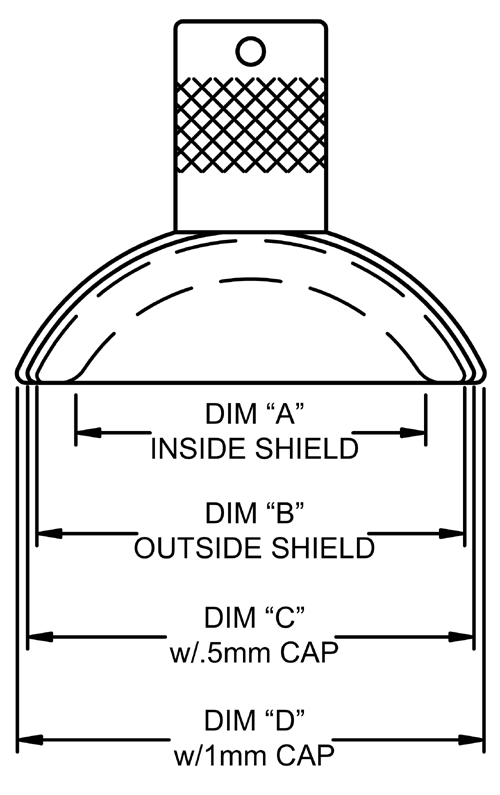

Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, EXTRA SMALL, 2 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 11.6 mm
- Dimension (B) O.D. Shield: 15.7 mm
- Dimension (C) O.D. with 0.5mm Cap: 16.8 mm
- Dimension (D) O.D. with 1.0mm Cap: 17.9 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, SMALL, 2 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 13.3 mm
- Dimension (B) O.D. Shield: 17.4 mm
- Dimension (C) O.D. with 0.5mm Cap: 18.5 mm
- Dimension (D) O.D. with 1.0mm Cap: 19.6 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, MEDIUM, 2mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 15.0 mm
- Dimension (B) O.D. Shield: 19.1 mm
- Dimension (C) O.D. with 0.5mm Cap: 20.2 mm
- Dimension (D) O.D. with 1.0mm Cap: 21.3 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, LARGE, 2 mm Thick with Aluminum Cap.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 16.7 mm
- Dimension (B) O.D. Shield: 20.8 mm
- Dimension (C) O.D. with 0.5mm Cap: 21.9 mm
- Dimension (D) O.D. with 1.0mm Cap: 23.0 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, EXTRA LARGE, 2 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 2 mm
- Dimension (A) Inside Shield: 18.4 mm
- Dimension (B) O.D. Shield: 22.5 mm
- Dimension (C) O.D. with 0.5mm Cap: 23.6 mm
- Dimension (D) O.D. with 1.0mm Cap: 24.7 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, EXTRA SMALL, 3 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 3 mm
- Dimension (A) Inside Shield: 11.0 mm
- Dimension (B) O.D. Shield: 17.4 mm
- Dimension (C) O.D. with 0.5mm Cap: 18.5 mm
- Dimension (D) O.D. with 1.0mm Cap: 19.6 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, SMALL, 3 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 3 mm
- Dimension (A) Inside Shield: 12.7 mm
- Dimension (B) O.D. Shield: 19.1 mm
- Dimension (C) O.D. with 0.5mm Cap: 20.2 mm
- Dimension (D) O.D. with 1.0mm Cap: 21.3 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, MEDIUM, 3 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 3 mm
- Dimension (A) Inside Shield: 14.4 mm
- Dimension (B) O.D. Shield: 20.8 mm
- Dimension (C) O.D. with 0.5mm Cap: 21.9 mm
- Dimension (D) O.D. with 1.0mm Cap: 23.0 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, LARGE, 3 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 3 mm
- Dimension (A) Inside Shield: 16.1 mm
- Dimension (B) O.D. Shield: 22.5 mm
- Dimension (C) O.D. with 0.5mm Cap: 23.6 mm
- Dimension (D) O.D. with 1.0mm Cap: 24.7 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tungsten Eye Shield, EXTRA LARGE, 3 mm Thick with Aluminum Caps.
The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid. The eye shield can be used without the aluminum cap when placed superficially. They have less transmission than other eye shields
Recommendations Based on Transmission Values:
The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV. These tungsten eye shields are not recommended for use above 9 MeV.
The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.
Specifications:
- Tungsten Density: 17 g/cm3
- Aluminum Density: 2.718 g/cm3
- Thickness: 3 mm
- Dimension (A) Inside Shield: 17.8 mm
- Dimension (B) O.D. Shield: 24.2 mm
- Dimension (C) O.D. with 0.5mm Cap: 25.3 mm
- Dimension (D) O.D. with 1.0mm Cap: 26.4 mm
|
Sizing information table for Tungsten Eye Shields.Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
