Parallel Plate Ion Chambers

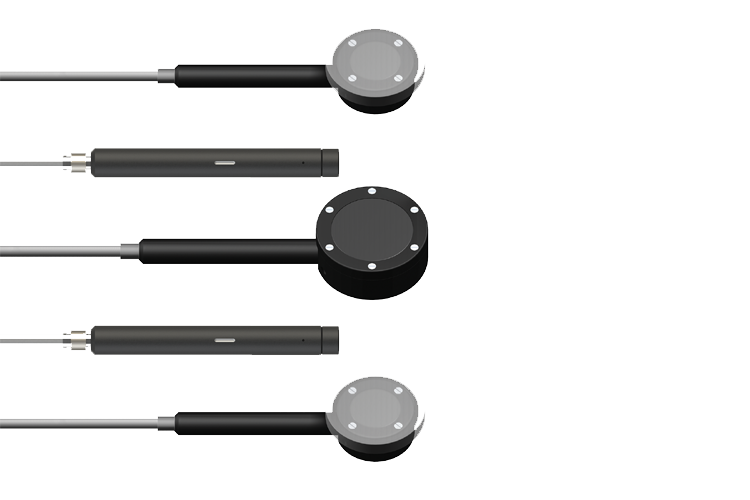

flip_exradin_parallel_750x500
  Exradin Parallel Plate Chambers ensure precision in depth-dose measurements by providing uniform field lines even at low energies.   Exradin A10 Ion Chamber The A10 chamber provides excellent spatial resolution for dose distribution measurements in a water phantom. An acrylic waterproof cap is ...Read more



  • Description
  • Specifications



Exradin Parallel Plate Chambers ensure precision in depth-dose measurements by providing uniform field lines even at low energies.



Exradin A10 Ion Chamber

The A10 chamber provides excellent spatial resolution for dose distribution measurements in a water phantom. An acrylic waterproof cap is included with this chamber for use in TG-51 electron beam protocols.



Exradin A11 Ion Chamber

Waterproof A11 chamber may be operated while fully submerged without any protective sheath; ideal for repeated TG-51/TRS-398 dose distribution measurements in a water phantom.



Exradin A11TW Ion Chamber

The A11TW is tailored for use in superficial therapy and low energy diagnostic beams. The thin-window design provides nearly constant response over the entire diagnostic energy range.



Exradin A20 Ion Chamber

The A20 is a low-energy x-ray chamber for assessing and calibrating pinpoint radiation fields for x-rays, stereotactic and TG-61 compliant superficial skin therapy.





  Exradin® A10 Ion Chamber, UltraGuard Markus-type Waterproof Electron Chamber, 0.050 cc Exradin® A11 Ion Chamber, Roos-type Parallel Plate, 0.62 cc Exradin® A11TW Ion Chamber, Spokas Thin Window Parallel Plate, 0.93cc Exradin A20 Low Energy X-Ray Ion Chamber, 0.074cc

Collecting Volume 0.050 cm3 0.62 cm3 0.93 cm3 0.074 cm3
Centroid ofCollecting Volume * 1.0 mm 2.0 mm 1.5 mm 1.8 mm
Window Collector Gap 2.0 mm 2.0 mm 3.0 mm 5.0 mm
Collector Diameter 5.4 mm 20.0 mm 20.0 mm 1.93 mm
Guard Ring Width (Radial) 4.3 mm 4.4 mm 4.4 mm 1.2 mm
Window Material 3.86 mg/cm2 Kapton 1.0 mm, A, P or T  3.86 mg/cm2 Kapton 7.72 mg/cm2 Kapton
Material C552 C552, D400, or A150 C552, D400, or A150 C552
Air Kerma 5.6E+8 Gy/C 4.6E+8 Gy/C 3.0E+7 Gy/C 3.8E+8 Gy/C
Nominal Leakage +/-10 fA +/-10 fA +/-10 fA +/-10 fA
Maximum Polarizing Voltage 1000 VDC 1000 VDC 1000 VDC 1000 VDC
Waterproof Yes, with 1.0mm PMMA cap Yes Yes, with 1.0mm PMMA cap No
Included Build-up Cap None None None None



C552 Shonka air-equivalent plastic
A150 Shonka tissue-equivalent plastic
D400 polystyrene-equivalent plastic
