The D1H's diode face is perpendicular to the beam when flat, for use inside traditional solid phantoms.
Exradin® D1H Diode Detector part of complete solution for: Annual QA
The Exradin® Advantage
Higher signal, flatter profiles and sharper resolution with a smaller active measurement. Precise measurement of minute fields with high visibility of the penumbra.
Minimize Angular Dependence
Exradin diodes have less than 0.5% angular dependence when tilted up to 20°, providing more confidence when measuring the penumbra or edge of the beam.
Specialized for Small Fields
The D1V's diode face is perpendicular to the beam when upright, making it ideal for photon scanning applications and use in water phantoms and the Lucy 3D QA Phantom. The D1H's diode face is perpendicular to the beam when flat, for use inside traditional solid phantoms. Both diodes provide superior measurement of field sizes up to 20 x 20 cm2 with excellent spatial resolution and minimal noise.
Diode Type: P-type Si diode
Materials: C552 shell for EMI shielding and durability, potted with near-water equivalent epoxy to eliminate air gaps
Outside Diameter: 6.88 mm x 6.88 mm x 34.8 mm
Diameter of Sensitive Area: 1 mm2 x ~0.05 mm thick
Effective Depth Below Surface: 0.8 mm - Indicator marks or lines clearly identify internal diode orientation and active face
Intended Energy Range: Photons: 60Co to 25 MV
Low-Noise Triaxial Cable: 50 ohms, 29 pF/ft, 1.5 m long
Connector availability: Standard BNC triax, with HV bias capability disabled. Other connector options such as TNC or type M may be available upon request.
Waterproof: Yes, may be used in water phantoms, designed to mount cleanly and easily to available chamber holders.
Operating Voltage: 0 VDC bias (protected from accidental high voltage application)
Signal Polarity: Positive
Radiation response, typ: ~5 nC/Gy
Leakage current, typ: 100 fA (typical, depeds on electrometer used)
Temperature dependence, typ: 0.4 % / °C
Sensitivity decrease (at 6 MV): 1.0 % per kGy
Dose to pulse dependency: > 99.5% over relevant clinical range
The D1H's diode face is perpendicular to the beam when flat, for use inside traditional solid phantoms.
Exradin® D1H Diode Detector part of complete solution for: Annual QA
The Exradin® Advantage
Higher signal, flatter profiles and sharper resolution with a smaller active measurement. Precise measurement of minute fields with high visibility of the penumbra.
Minimize Angular Dependence
Exradin diodes have less than 0.5% angular dependence when tilted up to 20°, providing more confidence when measuring the penumbra or edge of the beam.
Specialized for Small Fields
The D1V's diode face is perpendicular to the beam when upright, making it ideal for photon scanning applications and use in water phantoms and the Lucy 3D QA Phantom. The D1H's diode face is perpendicular to the beam when flat, for use inside traditional solid phantoms. Both diodes provide superior measurement of field sizes up to 20 x 20 cm2 with excellent spatial resolution and minimal noise.
Diode Type: P-type Si diode
Materials: C552 shell for EMI shielding and durability, potted with near-water equivalent epoxy to eliminate air gaps
Outside Diameter: 6.88 mm x 6.88 mm x 34.8 mm
Diameter of Sensitive Area: 1 mm2 x ~0.05 mm thick
Effective Depth Below Surface: 0.8 mm - Indicator marks or lines clearly identify internal diode orientation and active face
Intended Energy Range: Photons: 60Co to 25 MV
Low-Noise Triaxial Cable: 50 ohms, 29 pF/ft, 1.5 m long
Connector availability: Standard BNC triax, with HV bias capability disabled. Other connector options such as TNC or type M may be available upon request.
Waterproof: Yes, may be used in water phantoms, designed to mount cleanly and easily to available chamber holders.
Operating Voltage: 0 VDC bias (protected from accidental high voltage application)
Signal Polarity: Positive
Radiation response, typ: ~5 nC/Gy
Leakage current, typ: 100 fA (typical, depeds on electrometer used)
Temperature dependence, typ: 0.4 % / °C
Sensitivity decrease (at 6 MV): 1.0 % per kGy
Dose to pulse dependency: > 99.5% over relevant clinical range

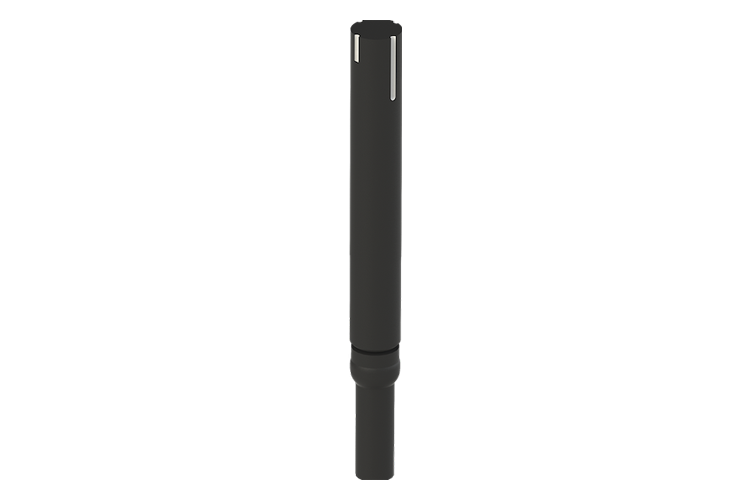

The D1V's diode face is perpendicular to the beam when upright, making it ideal for photon scanning applications and use in water phantoms and the Lucy 3D QA Phantom.
Exradin® D1V Diode Detector part of complete solution for: Annual QA
The Exradin® Advantage
Higher signal, flatter profiles and sharper resolution with a smaller active measurement. Precise measurement of minute fields with high visibility of the penumbra.
Minimize Angular Dependence
Exradin diodes have less than 0.5% angular dependence when tilted up to 20°, providing more confidence when measuring the penumbra or edge of the beam.
Specialized for Small Fields
The D1V's diode face is perpendicular to the beam when upright, making it ideal for photon scanning applications and use in water phantoms and the Lucy 3D QA Phantom. The D1H's diode face is perpendicular to the beam when flat, for use inside traditional solid phantoms. Both diodes provide superior measurement of field sizes up to 20 x 20 cm2 with excellent spatial resolution and minimal noise.
Diode Type: P-type Si diode
Materials: C552 shell for EMI shielding and durability, potted with near-water equivalent epoxy to eliminate air gaps
Outside Diameter: Ø 6.88 mm x 46.2 mm long
Diameter of Sensitive Area: 1 mm2 x ~0.05 mm thick
Effective Depth Below Surface: 0.8 mm - Indicator marks or lines clearly identify internal diode orientation and active face
Intended Energy Range: Photons: 60Co to 25 MV
Low-Noise Triaxial Cable: 50 ohms, 29 pF/ft, 1.5 m long
Connector availability: Standard BNC triax, with HV bias capability disabled. Other connector options such as TNC or type M may be available upon request.
Waterproof: Yes, may be used in water phantoms, designed to mount cleanly and easily to available chamber holders.
Operating Voltage: 0 VDC bias (protected from accidental high voltage application)
Signal Polarity: Positive
Radiation response, typ: ~5 nC/Gy
Leakage current, typ: 100 fA (typical, depeds on electrometer used)
Temperature dependence, typ: 0.4 % / °C
Sensitivity decrease (at 6 MV): 1.0 % per kGy
Dose to pulse dependency: > 99.5% over relevant clinical range
