Micro Ion Chambers

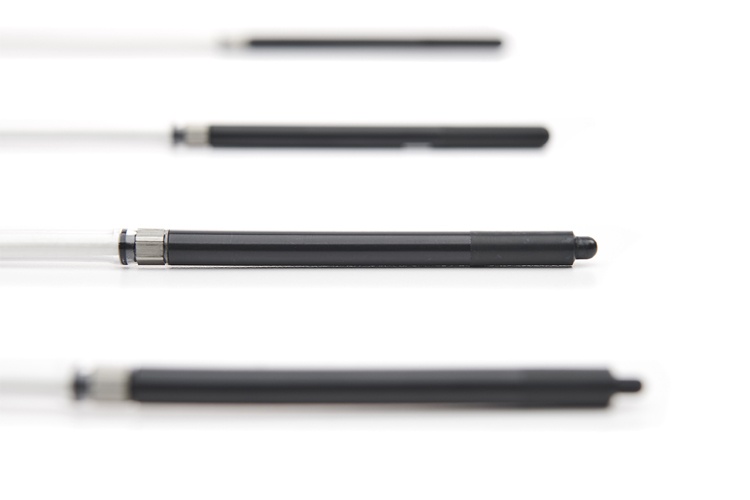

exradin_feature_micros_750x500
  Superior small-field dosimetry to assess pinpoint radiation in IMRT, stereotactic, orthovoltage, x-rays and superficial skin therapy.   Exradin A26 Ion Chamber Experience the same measurement quality in the only micro chamber that was designed to meet reference class criteria. Rapid settlin ...Read more



  • Description
  • Specifications



Superior small-field dosimetry to assess pinpoint radiation in IMRT, stereotactic, orthovoltage, x-rays and superficial skin therapy.



Exradin A26 Ion Chamber

Experience the same measurement quality in the only micro chamber that was designed to meet reference class criteria.

  • Rapid settling
  • Stable, reproducible measurements
  • Realistic and meaningful ion recombination corrections
  • Minimal polarity dependence
  • Minimal energy dependence
  • The only micro chamber that was designed to meet reference class criteria
  • Also available in MR compatible version.



Exradin A16 Ion Chamber

The Model A16 microchamber measures extremely small field sizes, allowing for exceptional spatial resolution and exact pinpoint beam profile characterization. These attributes make the A16 ideal for stereotactic radiosurgery and IMRT applications.

The A16 microchamber is the smallest ION chamber in the world.



Exradin A14SL Ion Chamber

The Model A14SL is capable of measuring extremely small field sizes, allowing for exceptional spatial resolution and exact pinpoint beam profile characterization. This helps assess radiation fields during IMRT and stereotactic radiosurgery.



Exradin A14 Ion Chamber

The Model A14 microchamber has the exact internal dimensions and collecting volume as the Model A14SL, yet a larger overall diameter is ideal for use in solid phantoms.View Exradin® A14 Ion Chamber, Microchamber, 0.015cc





  Exradin® A14 Ion Chamber, Microchamber, 0.015cc Exradin® A14SL Ion Chamber, Slim Line Microchamber, 0.015cc Exradin® A26 Ion Chamber, MicroPoint, 0.015cc Exradin® A16 Ion Chamber, MicroPoint, 0.007cc

Collecting Volume 0.015 cm3 0.015 cm3 0.015 cm3 0.007 cm3
Centroid ofCollecting Volume * 2.21 mm  2.39 mm 1.98 mm 1.65 mm
Outside Shell 6.0 mm  6.35 mm 4.3 mm 3.4 mm
Inside Diameter of Shell 4.0 mm 4.0 mm 3.3 mm 2.4 mm
Shell Wall Thickness 1.0 mm 1.2 mm 0.5 mm 0.5 mm
Collector Diameter 0.3 mm 0.3 mm 0.75 mm 0.3 mm
Collector Length 1.5 mm 1.5 mm 1.78 mm 1.27 mm
Spot Size ** 5.3 x 6.4 mm 5.3 x 6.4 mm 4.3 x 4.3 mm 3.5 x 3.4 mm
Material C552 or A150 C552 C552 C552
Air Kerma 1.9E+9 Gy/C 1.9E+9 Gy/C 1.85E+9 Gy/C 4.1E+9 Gy/C
Nominal Leakage +/-10 fA +/-10 fA +/-10 fA +/-10 fA
Polarizing Voltage 1000 VDC 1000 VDC 1000 VDC 1000 VDC
Waterproof Yes Yes Yes Yes
Included Build-up Cap None None 60Co 60Co



* From exterior tip of shell
** Spot Size is not “minimum field size” – these dimensions are provided to enable the user can ensure their ion chamber’s spot size is smaller than the 100% isodose line to prevent any partial volume effects.
C552 Shonka air-equivalent plastic
A150 Shonka tissue-equivalent plastic
