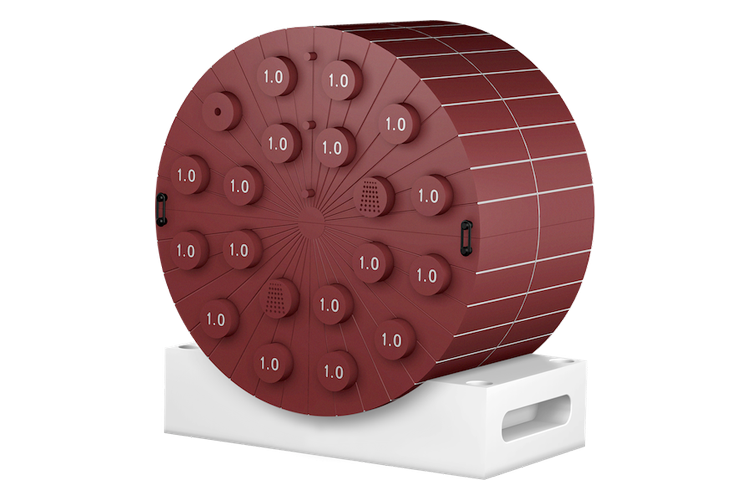

Quick Arc™ Phantom

quickarc_750x500
  Gain confidence in the accuracy of your treatment plans and help improve patient safety.    Versatility Includes 32 ion chamber cavities and 20 density insert cavities. Each phantom comes with a full set of water equivalent inserts for filling these cavities.   Water Equivalent Made from a ...Read more



  • Description
  • Specifications



Gain confidence in the accuracy of your treatment plans and help improve patient safety.



Versatility

Includes 32 ion chamber cavities and 20 density insert cavities. Each phantom comes with a full set of water equivalent inserts for filling these cavities.



Water Equivalent

Made from a proprietary, heterogeneous material which has been shown to be water equivalent to within 0.5%.



Accuracy

By simply rotating the phantom on its base, point measurements can be taken with 0.5 cm resolution along any transverse plane through the center of the phantom.





Dimensions

  • Diameter: 30 cm
  • Thickness: 18 cm



Density

  • Physical Density: 1.047 g/cc ± 0.1 g/cc
  • Electron Density: 0.562 ± 0.003 e/g/cc



Cavities

  • Number ion chamber cavities: 32
  • Number density insert cavities: 20
  • Location: Density insert cavities located at 6.5 cm and 11 cm radius



Features

  • Water equivalent
  • Film plane with reference markers on the top half
  • Configure with or without heterogeneities
  • 20 cavities for density plugs located at 6.5 cm and 11.0 cm radius
  • Alignment scribe lines every 10 degrees
  • Physical density of 1.047 g/cc ± 0.1 g/c
