Phantoms for SRS

Lucy 3D QA Phantom
  With the most clinical users worldwide, the Lucy 3D QA Phantom has exceeded the strict demands set by physicists performing SRS/SRT QA. Each component is manufactured within 0.1 mm tolerances, ensuring the most precise, practical SRS tool on the market.   Fast, Easy and Customizable Setup The ...Read more

Phantoms for SRS


  • Description
  • Specifications



With the most clinical users worldwide, the Lucy 3D QA Phantom has exceeded the strict demands set by physicists performing SRS/SRT QA. Each component is manufactured within 0.1 mm tolerances, ensuring the most precise, practical SRS tool on the market.



Fast, Easy and Customizable Setup

The Lucy 3D QA Phantom interfaces with most commercial SRS frames and frameless systems for fast setup and verification of placement accuracy in patient treatment conditions. The SRS frame (with Lucy) is mounted on the couch and treated within the manufacturer’s exact coordinate system.



Features & Benefits Confident Image Fusion

Use Lucy to verify the accuracy of image fusion with a single phantom. Fused images can be compared to measurements described in the Lucy specifications to ensure sub-millimeter precision.



Minimize Transfer Errors

Industry-leading manufacturing tolerances provide incomparable accuracy when contrasting the Lucy volumes, geometry and distance measurements to images in treatment planning software. Since these measurements should be evaluated at each step of the imaging process, these rigid tolerances can drastically reduce cumulative uncertainty.



Simple Patient Dosimetry

The dosimetry inserts for the Lucy quickly obtain absolute, relative and point-dose dosimetry measurements at isocenter and at exact positions off isocenter. This allows for a seamless evaluation of dose as well as geometric accuracy, including CBCT and MV/kV alignment.



CT, MRI and Image Fusion

The Lucy seamlessly integrates with SRS frames and frameless systems. It can be positioned within the manufacturer’s coordinate system and rotated for operation in coronal, sagittal or transverse plane. CT/MRI marker cylinders and volume inserts provide known volumes, densities and distances to produce unparalleled 0.1 mm precision when evaluating TPS fusion.

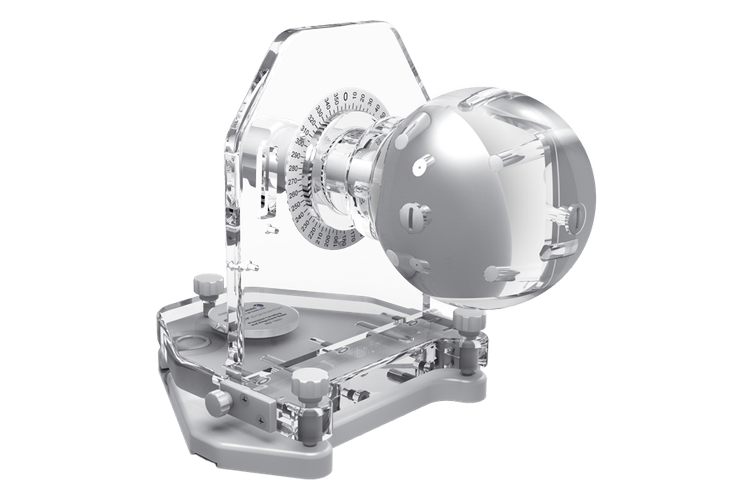

LUCY 3D QA PHANTOM Acrylic Sphere 140 mm diameter

  • Blank Filler Plug (HEMI-C) 81 x 81 x 35 mm
  • Blank Filler Plug (HEMI-A) 85 x 85 x 10 mm
  • Accessory Port for Ionization Chambers 8 mm diameter



Precision Leveling and Rotational Alignment Base

  • Height 30 cm
  • Depth 23 cm
  • Width 20 cm
  • Weight 3.4 kg



Dosimetry QA Accessories

  • Dosimetry Insert for Ion Chamber 85 x 85 x 10 mm
  • Dosimetry Film Cassette for Three 2.5" x 2.5" films 85 x 85 x 10 mm
  • Target/Treatment Verification 85 x 85 x 10 mm
    • Film Cassette
    • Four Titanium Fiducial Markers 60 mm square pattern
    • One Titanium Fiducial Marker for Orientation
  • Dosimetry Film Cassette for Three 3.0" x 3.0" films 85 x 85 x 10 mm
  • Dosimetry Film Cassette for Thirteen 2.5" x 2.5" films 85 x 85 x 35 mm



CT QA Accessories

  • CT Marker Cylinders, set of four 10 mm length, 25 mm diameter
    • Five 2.0 mm Aluminum Spheres per cylinder 5 mm center-to-center
  • CT Volume Insert with 3 irregular known volumes 85 x 85 x 10 mm
    • Geometry One Area 250 mm, Volume 2500 mm 3
    • Geometry Two Area 750 mm, Volume 7500 mm 3
    • Geometry Three Area 1750 mm, Volume 17500 mm 3
  • CT Grid Insert for spatial distortion 85 x 85 x 10 mm
  • 0.5 mm (.02 in) aluminum wire spaced 5 mm apart
  • Multiple Metastasis Insert 63 x 63 x 20 mm



MRI QA Accessories

  • MRI Marker Cylinders, set of four 10 mm length, 25 mm diameter
    • Five 2.0 mm mineral oil spheres per cylinder 5 mm center-to-center
  • MRI Volume Insert with three known Geometries 85 x 85 x 10 mm
    • Geometry One Area 250 mm, Volume 1700 mm 3
    • Geometry Two Area 750 mm, Volume 5250 mm 3
    • Geometry Three Area 1750 mm, Volume 12250 mm 3
  • MRI Signal Generator 85 x 85 x 35 mm
    • Cavity Filled with Manganese Chloride
  • MRI Grid Insert 85 x 85 x 35 mm



Imaging QA Accessories

  • IGRT Localization & Angiography Marker Cylinders, set of four 10 mm length, 25 mm diameter
    • One 2.0 mm Lead Sphere in each cylinder



Radiation Alignment Pointer

  • Includes 5 mm Radiation Alignment Tip



Mosfet Dosimetry Cassette

  • Cassette with 15 cavities 2.5 x 8 x 1 mm to accommodate MOSFET Diodes 85 x 85 x 10 mm



TLD Dosimetry Cassette

  • Cassette with 49 cavities 3.4 x 3.4 x 1 mm to accommodate TLDs 85 x 85 x 10 mm
  • Cassette with 85 cavities 1.5 x 1.5 x 1 mm to accommodate TLDs 85 x 85 x 10 mm
