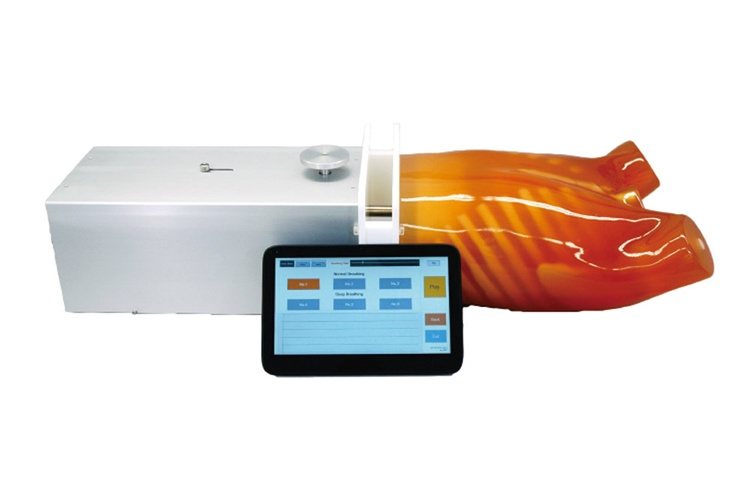

Anthropromophic chest phantom for respiratory gating
Dynamic Thorax Phantom represents the respiratory motion of a human chest for respiratory gating methods. The cases can be combined or modified digitally to create different examples for research and planning.
Features
Dynamic Thorax Phantom is designed to represent the movement of human lungs.
A male chest torso phantom with KYOTO KAGAKU original human tissue substitute materials.
Simple operation with the wireless tablet.
The pulmonary nodule and the diaphragm move independently with the respiratory cycle.
Three dimensional movement of the pulmonary nodule (linearly and rotationally).
TLD can be inserted to simulate the nodule.
Controllable parameter includes respiratory rate, range of movement of diaphragm, range of linearly movement and the rotation to the nodule.
Six preset respiratory patterns are prepared.
Respiratory patterns can be modified and saved.
Up to three different respiratory patterns can be run in sequence.
Three operation modes are prepared: basic mode, combination mode and user mode.
Controllable Parameters
Respiratory rate: 6-24 cycles/min.
Movement of diaphragm: 0-38 mm
Linearly movement of nodule unit: 38-64 mm
Rotation of nodule unit: 50-70 degrees
Evaluation Applications
Research and planning in respiratory gating CT, dosimetry and radiation therapy.
Set Includes:
1 drive unit
1 chest phantom
1 mediastinum phantom with right pulmonary vessels
1 nodule rotation unit
1 diaphragm block
1 set of simulated nodules
1 controller
1 storage case
Features
TLD can be inserted to simulate the nodule Six preset respiratory patterns are prepared and can be modified and saved Up to three different respiratory patterns can be run in sequence
1 drive unit(chest phantom, mediastinum phantom with right pulmonary vessels, nodule rotation unit / 1 diaphragm block / 1 set of simulated nodules / 1 controller / 1 storage case / 1 manual
Packing size (approx.)
W103xD70xH37 cm / W40.6xD27.6xH14.6 in
Power source
AC110V-240V 50/60Hz
Materials
Urethan resin
CONTROLLABLE PARAMETERS
Respiratory rate: 6-24 cycles/min. / Movement of diaphragm: 0-38 mm/0-1.5 in Linearly movement of nodule unit: 38- 64 mm/ 1.5-2.5 in / Rotation of nodule unit: 50-70 degrees
Anthropromophic chest phantom for respiratory gating
Dynamic Thorax Phantom represents the respiratory motion of a human chest for respiratory gating methods. The cases can be combined or modified digitally to create different examples for research and planning.
Features
Dynamic Thorax Phantom is designed to represent the movement of human lungs.
A male chest torso phantom with KYOTO KAGAKU original human tissue substitute materials.
Simple operation with the wireless tablet.
The pulmonary nodule and the diaphragm move independently with the respiratory cycle.
Three dimensional movement of the pulmonary nodule (linearly and rotationally).
TLD can be inserted to simulate the nodule.
Controllable parameter includes respiratory rate, range of movement of diaphragm, range of linearly movement and the rotation to the nodule.
Six preset respiratory patterns are prepared.
Respiratory patterns can be modified and saved.
Up to three different respiratory patterns can be run in sequence.
Three operation modes are prepared: basic mode, combination mode and user mode.
Controllable Parameters
Respiratory rate: 6-24 cycles/min.
Movement of diaphragm: 0-38 mm
Linearly movement of nodule unit: 38-64 mm
Rotation of nodule unit: 50-70 degrees
Evaluation Applications
Research and planning in respiratory gating CT, dosimetry and radiation therapy.
Set Includes:
1 drive unit
1 chest phantom
1 mediastinum phantom with right pulmonary vessels
1 nodule rotation unit
1 diaphragm block
1 set of simulated nodules
1 controller
1 storage case
Features
TLD can be inserted to simulate the nodule Six preset respiratory patterns are prepared and can be modified and saved Up to three different respiratory patterns can be run in sequence
1 drive unit(chest phantom, mediastinum phantom with right pulmonary vessels, nodule rotation unit / 1 diaphragm block / 1 set of simulated nodules / 1 controller / 1 storage case / 1 manual
Packing size (approx.)
W103xD70xH37 cm / W40.6xD27.6xH14.6 in
Power source
AC110V-240V 50/60Hz
Materials
Urethan resin
CONTROLLABLE PARAMETERS
Respiratory rate: 6-24 cycles/min. / Movement of diaphragm: 0-38 mm/0-1.5 in Linearly movement of nodule unit: 38- 64 mm/ 1.5-2.5 in / Rotation of nodule unit: 50-70 degrees
For use in diagnostic radiology, radiation therapy, and routine quality assurance
Faithful simulation of physical form, imaging, and dosimetry properties
Moving target to simulate tumor motion with the lung
Based on the Alderson Radiation Therapy (ART) Phantom

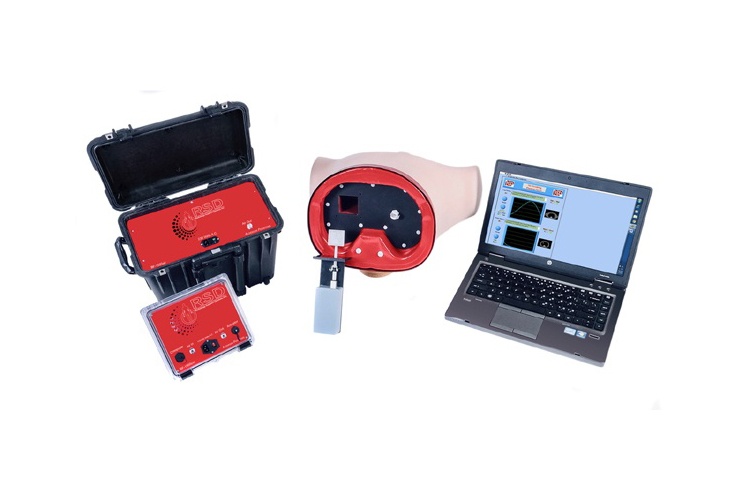

The newest edition of the Dynamic Breathing Phantom features simplified wiring, an improved control box, optional air supply, pre-designated profiles of patient-specific breathing patterns, and the option to integrate simple heart and breast models with the phantom. Plus, the complete system is smaller, lighter, and quieter with revised software for Windows 10 providing a more intuitive interface.
Designed for use in diagnostic radiology settings for the acceptance of diagnostic CT-based scanners and radiation therapy machines, as well as the evaluation of patient radiation therapy delivery and dosimetry, RSD’s Dynamic Breathing Phantom achieves realistic anterior ribcage motion by air inflation in realistic breathing patterns. The phantom itself is a simulation of an average adult humanoid torso including lungs, ribcage/chest-wall bone, skin, and sub-dermis. The material properties of the incorporated soft tissue, organs, bones, and joints provide a faithful simulation of the physical thoracic form and of radiological imaging and radiation dosimetry properties.
This unique phantom has a moving target within the lung equivalent lobe to simulate tumor motion inside the lung. The electro-pneumatic motion controller and easy-to-use phantom control software allow users to program different breathing patterns and breathing rates so that they can choose their evaluations to precisely plan dose delivery to any patient. Target motion is controlled independently of the breath motion and may be set to be antithetical or to mimic the recorded motion of a radiation therapy targeted tumor.
The Dynamic Breathing Phantom System includes: The Dynamic Breathing Phantom (thoracic mannequin), electro-pneumatic motion controller, target fixtures for imaging and radiation dosimetry, individual thorax and target motions & rates: sin2, sin4, sin6, 1-sin4, 1-sin6, 5-20 breath/min, Phantom Control Software for Microsoft Windows, and USB control hardware.
BF-1500
Breathing Phantom with Integrated Control Module & Air Supply
BF-1500CM
Breathing Phantom Control Module (using External Air Supply at 110˜230V AC)

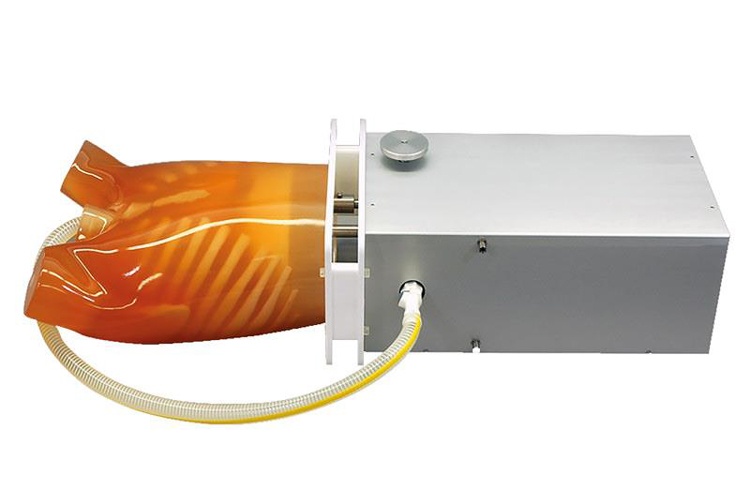

This phantom represents movement of the heart, lungs and pulmonary nodule.
The pulmonary nodule and the diaphragm move independently with the respiratory cycle.
A three dimensional movement of the pulmonary nodule (linearly and rotationally) can be simulated.
The respiratory movement of the abdomen is simulated as well as systolic and diastolic movement of the heart.
Coronary arteries including stenotic examples are shown.
The phantom can be connected to an ECG for ECG gating.
The phantom can be used for respiratory gated chest CT, tumor tracking in radiotherapy and ECG gated cardiac CT.
Features
The phantom represents movement of the heart, lungs and pulmonary nodule The pulmonary nodule and diaphragm move independently with the respiratory cycle -Three dimensional movement of the pulmonary nodule (linearly and rotationally) -Motion disc represents respiratory movement of abdomen The elastic heart represents systolic and diastolic motion
1 drive unit / 1 nodule rotation unit / 1 diaphragm block / 1 chest phantom / 3 types of heart unit / 1 set of simulated tumors (15 types) / 1 tablet PC / 1 storage case
Packing size (approx.)
W103xD70xH37 cm / W40.6xD27.6xH14.7 in
Power source
AC110V-240V 50/60Hz
Materials
Chest phantom : Urethan resin
ANATOMY
Synthetic bones of the chest / Heart with coronary artery / Diaphragm
CONTROLLABLE PARAMETERS
Heart rate: 30-120 times/min / Ejection volume: 60, 70, 80, 90, 100ml ef rate: 30%, 35%, 40%, 45%, 50%, 55%, 60% / Respiratory rate: 6-24 cycles/min / Linear movement of nodule unit: 8-64mm/ 0-1.5 in / Rotation range of nodule unit: 50-70 degrees
Other features
The coronary arteries including stenotic examples are shown -The phantom can be connected to ECG for ECG gating
