Real time dose measurements of X-rays and Gamma-rays
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)
ALMAR
Gamma X-Rays Hp(10)
DETECTOR
Silicon based
MEASUREMENT RANGE
Dose: 0,65 μSv-10 Sv Dose rate: 1 μSv/h –10 Sv/h
ACCURACY
Dose: ± 10% Cs-137
DOSE RATE LINEARITY
Dose Rate : 5% Cs-137
ENERGY RESPONSE
Linear up to 10 Sv 3 KeV-100 MeV
ANGULAR DEPENDENCE
5 %
WEIGHT
25 gr.
BATTERY
Rechargeable, 14 days (continuously)
TEMPERATURE
-30o to 40o
ALARM
Visual and audio
ENVIRONMENTAL PROTECTION
IP65

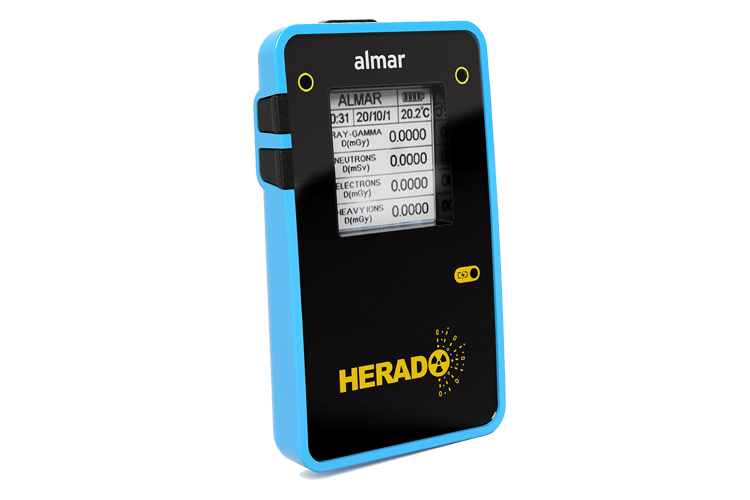

Active Personal Dosimeter: ALMAR - Gamma X-Rays Hp(10)
Real time dose measurements of X-rays and Gamma-rays
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)
ALMAR
Gamma X-Rays Hp(10)
DETECTOR
Silicon based
MEASUREMENT RANGE
Dose: 0,65 μSv-10 Sv Dose rate: 1 μSv/h –10 Sv/h
ACCURACY
Dose: ± 10% Cs-137
DOSE RATE LINEARITY
Dose Rate : 5% Cs-137
ENERGY RESPONSE
Linear up to 10 Sv 3 KeV-100 MeV
ANGULAR DEPENDENCE
5 %
WEIGHT
25 gr.
BATTERY
Rechargeable, 14 days (continuously)
TEMPERATURE
-30o to 40o
ALARM
Visual and audio
ENVIRONMENTAL PROTECTION
IP65

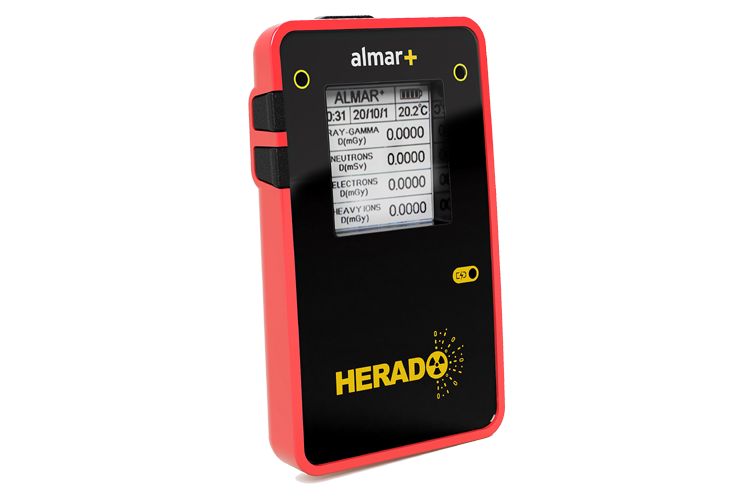

Active Personal Dosimeter: ALMAR+ - Neutron Hp(10)
Measure and discriminate X-ray, Gamma-rays and Beta with a single detector
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)
ALMAR+ NEUTRONS
Neutron Hp(10)
DETECTOR
Silicon based
MEASUREMENT RANGE
Dose: 1,5 μSv-10 Sv Dose rate 1 μSv/h-10 Sv/h
ACCURACY
Dose: ± 10% AmBe
DOSE RATE LINEARITY
Dose Rate : 5% AmBe
ENERGY RESPONSE
Linear up to 10 Sv Thermal-epithermal 0.025 keV to 100 keV intermediate fast 100 keV to 5 MeV
ANGULAR DEPENDENCE
5 %
WEIGHT
25 gr.
BATTERY
Rechargeable, 14 days (continuously)
TEMPERATURE
-30o to 50o
ALARM
Visual and audio
ENVIRONMENTAL PROTECTION
IP65

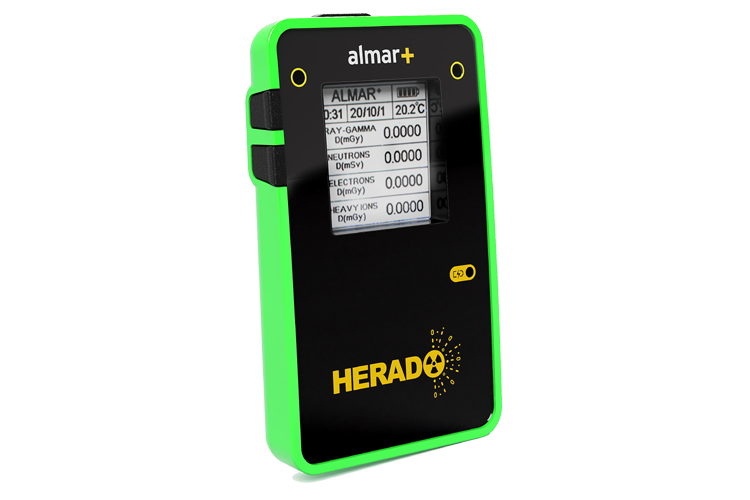

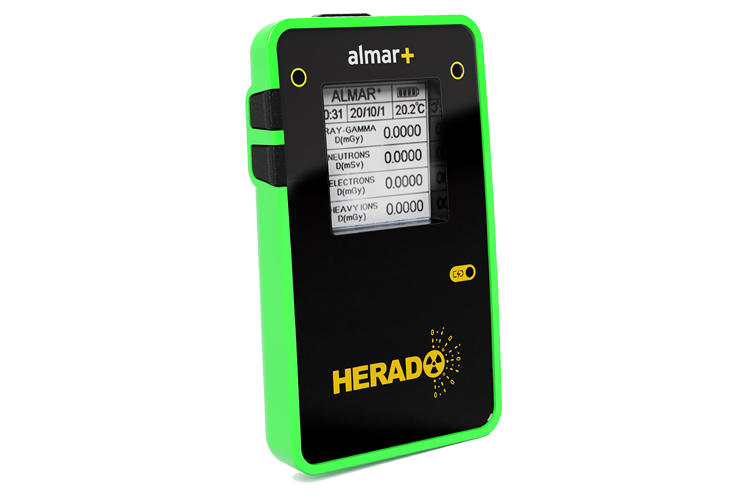

Active Personal Dosimeter: ALMAR+ - Beta Hp(0,07) and Hp(10)
Real time dose measurements of X-rays and Gamma-rays
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)
ALMAR+ BETA
Beta Hp(0,07) and Hp(10)
DETECTOR
Silicon based
MEASUREMENT RANGE
Dose: 1,5 μSv-10 Sv Dose rate 1 μSv/h-10 Sv/h
ACCURACY
Dose: ± 10% 90Sr/90Y
DOSE RATE LINEARITY
Dose Rate : 5% 90Sr/90Y
ENERGY RESPONSE
Linear up to 10 Sv 0.2 Mev-15 MeV
ANGULAR DEPENDENCE
5 %
WEIGHT
25 gr.
BATTERY
Rechargeable, 14 days (continuously)
TEMPERATURE
-30o to 50o
ALARM
Visual and audio
ENVIRONMENTAL PROTECTION
IP65
Active Personal Dosimeter: ALMAR+ - Gamma X-Rays Hp(10)
Real time dose measurements of X-rays and Gamma-rays
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)

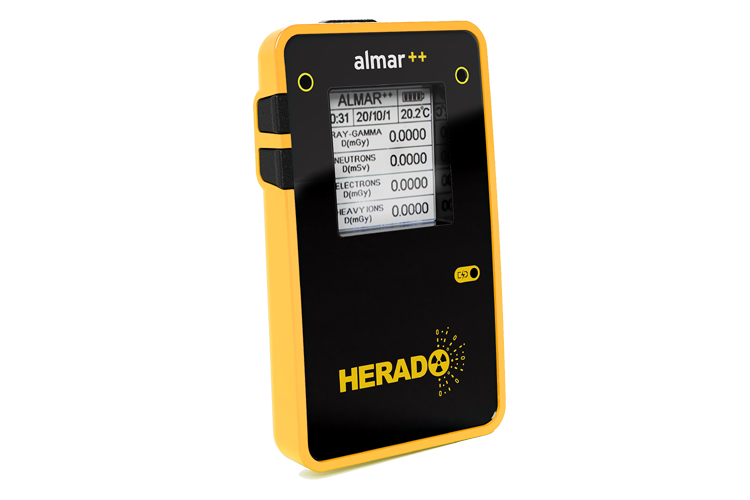

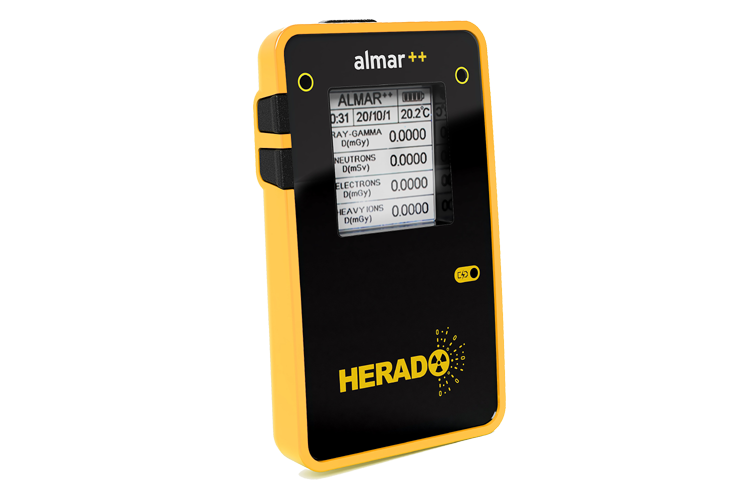

ALMAR++ Dosimeter (X-rays, Gamma, Beta and neutrons)
For mixed radiation environment (like medical accelerator), the only detector at international level that measures and discriminates different types of irradiation.
ALMAR dosimeter is a small, light and easy to use dosimeter based on innovative silicon technology.
This breakthrough technology provides radiation workers with a precise measurement of radiation dose and includes accurate long-term exposure tracking even when the dosimeter is closed. A built-in memory chip stores each user’s identity via an embedded unique serial code that is assigned to the user.
Helping medical staff and physicians evaluate and take action to more effectively use radiation reduction solutions, ALARA principal (As Low As Reasonable Achievable)

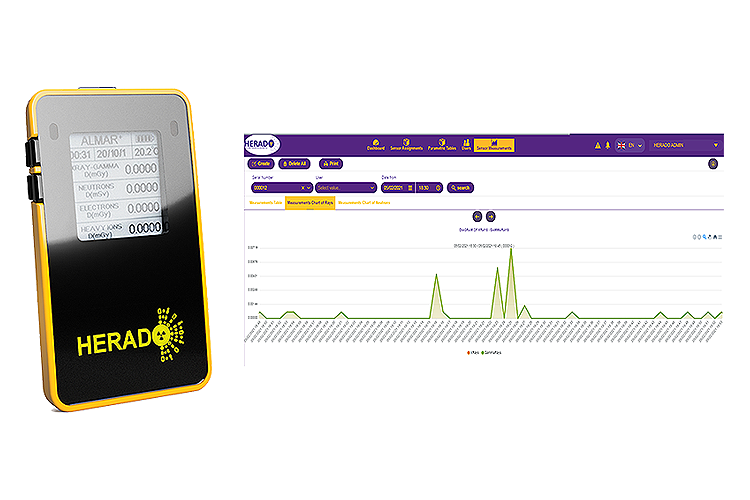

HERADO platform delivers real time radiation dose monitoring and insights to optimize dose exposure.
Healthcare Organizations can take quick overview and management of Radiation Monitoring
The HERADO platform analyzes your data and reviews radiation dose incidents. You are notified when there are any urgent incidents that require immediate attention.
Recommendations for improvement for the best possible protection and safety (ALARA principal).
Total radiation management program with different types of reports.
Αccess to both historical and current dose measurements and reports.
With HERADO platform, healthcare providers can focus on caring for patients by letting us focus on their radiation protection.
Serving the needs of enterprise customers, where there may be hundreds of employees, often in various locations, requires specific expertise and specialized program management. Our monitoring services can be tailored to meet your specific needs.
Take care of your Radiation Protection, take your Health in your own hands
Data and Insight in your hands. HERADO platform ensures you get all from your radiation dose data by delivering personalized data assessments and recommendations.
You review dose incidents and take action when necessary
GDPR compliance, IoT clever device that remotely send the data with high security to the cloud, total management system with statistics, graphs, reports etc.
