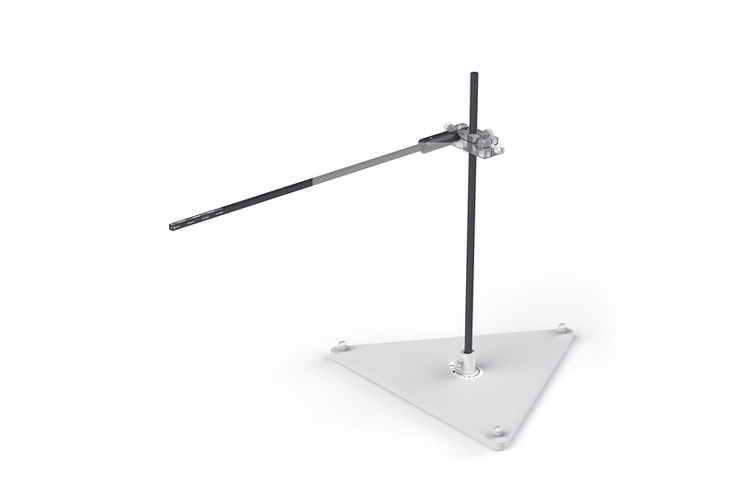

Winston-Lutz Pointer Phantom

winston-lutz_1_750x500
  Quick, Comprehensive Stereotactic QA Facilitates ball marker alignment with the laser-described isocenter for easy execution of all necessary stereotactic QA procedures.   Go Filmless with PIPSpro Software PIPSpro Software, when coupled with the Winston-Lutz Pointer Phantom, uses your portal ...Read more



  • Description
  • Specifications



Quick, Comprehensive Stereotactic QA

Facilitates ball marker alignment with the laser-described isocenter for easy execution of all necessary stereotactic QA procedures.



Go Filmless with PIPSpro Software

PIPSpro Software, when coupled with the Winston-Lutz Pointer Phantom, uses your portal imaging system to acquire images of the ball marker. This determines the 3D stand offset and provides isocenter measurements within 0.1 mm.

  • Easily adjustable for precise positioning.
  • Carbon fiber rods ensure stability once positioned.
  • 5mm tungsten carbide sphere.
  • White on black and black on white lines for easy alignment to either light field or lasers.





Dimensions

  • Diameter-Ball: 0.50 cm
  • Square-Rod: 0.64 cm
  • Overall Length: 25.0 cm



Materials

  • Rod: Carbon fiber
  • Ball: Tungsten Carbide
