3D Sectional Torso Phantom

m600-750x500
  Includes 12 Internal Organ Tissues The Model 600 Anthropomorphic Torso Phantom is designed to simulate an average torso (22 cm anterior-posterior thickness) for training and quality assurance testing in medical imaging and dosimetry. The epoxy materials used to fabricate the phantom provide opti ...Read more



  • Description
  • Specifications



Includes 12 Internal Organ Tissues

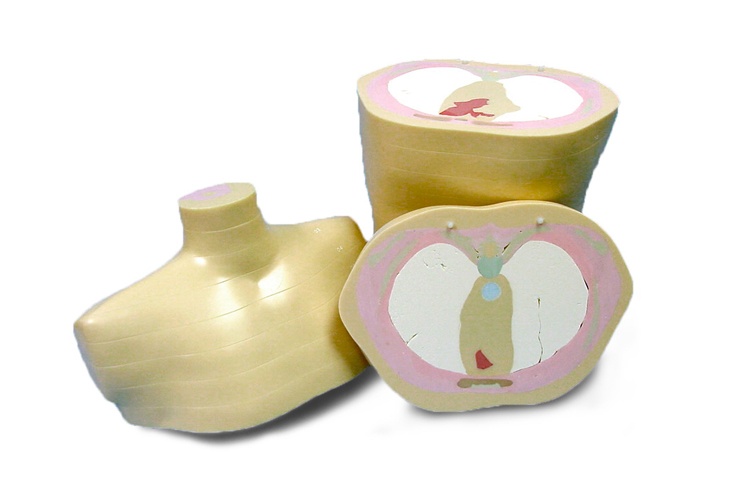

The Model 600 Anthropomorphic Torso Phantom is designed to simulate an average torso (22 cm anterior-posterior thickness) for training and quality assurance testing in medical imaging and dosimetry. The epoxy materials used to fabricate the phantom provide optimal tissue simulation between the Diagnostic and Therapy energy range (40 keV to 20 MeV).

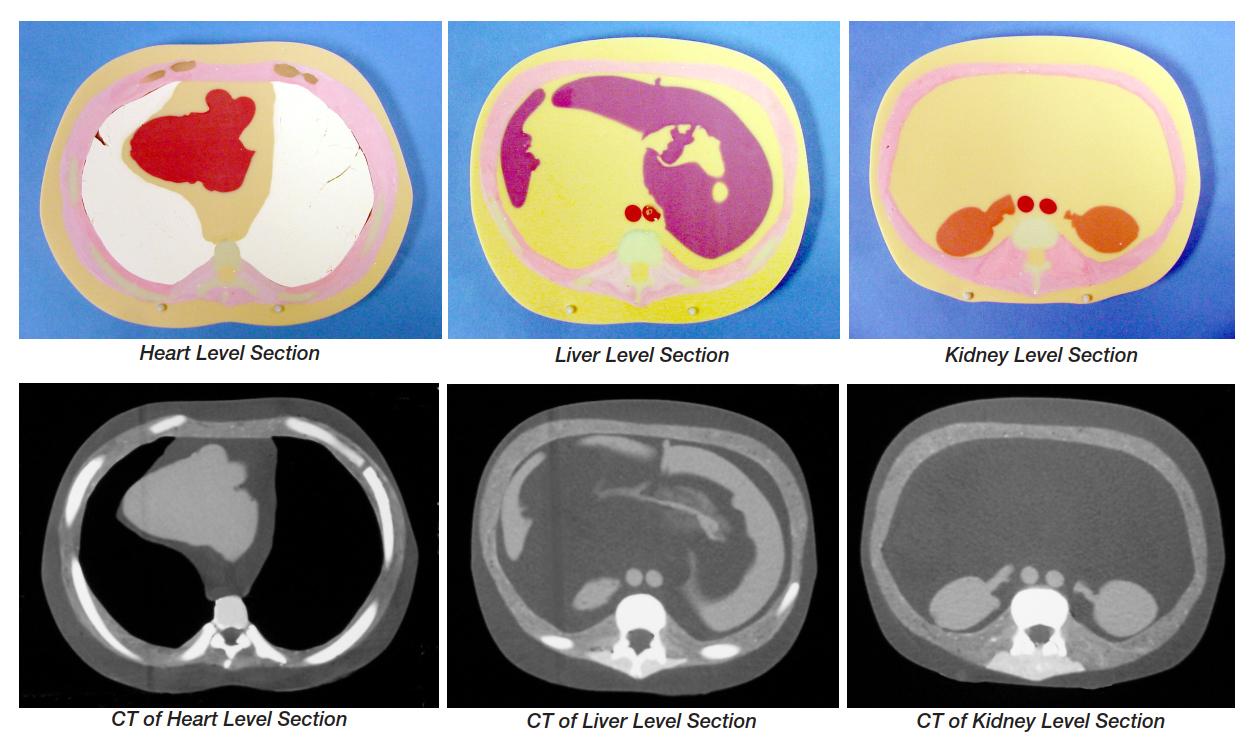

Unlike other cross-sectional dosimetry phantoms, the Model 600 includes internal organ structures such as the lungs, heart, liver, kidneys, spleen and pancreas. All simulated organs match the tissue density of actual organs and can be clearly visualized.

The lower portion of the phantom contains a soft bolus material simulating a mix of 30 percent adipose and 70 percent muscle tissue. Simulated muscle material layers the rib cage and vertebral column. The exterior envelope simulates a mix of 43 percent adipose and 57 percent muscle tissue. Standard phantoms consist of 25 mm thick contiguous sections.



Features:

  • Includes internal organ structures
  • Ideal for QA and training purposes when specific internal organs are of interest
  • Usable on any X-ray imaging or treatment device





Dimensions 50 cm x 22 cm
Weight 32.1 kg
Materials Tissue-Equivalent Epoxy Resin

Model 600 Includes
1x 3D Sectional Torso Phantom with Tissue-Equivalent Skeletal Structure, Lungs, Heart, Liver, Pancreas, Spleen and Kidneys (Numbered as sections 1-20)
1x Reinforcement Base
1x Reinforcement Top with Threaded Assembly
1x Open-End Wrench
1x Bag of Extra String for reinforcement assembly
1x Roll of Black (light proof) Electrical Tape
1x Foam Lined Carry Case
1x User Guide
