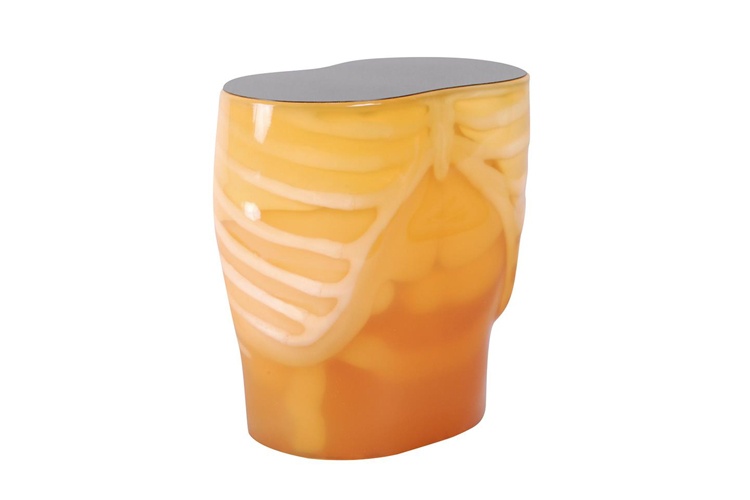

CT Abdomen Phantom

r165131_750x500
  The phantom facilitates study of image fusion between CT and ultrasound in combination with US-1 Echozy. New variation for MECT has been added. This unique anthropomorphic upper abdomen phantom allows obtaining CT images approximate to clinical data. The elaborate anatomy of organs allows a mul ...Read more



  • Description
  • Specifications



The phantom facilitates study of image fusion between CT and ultrasound in combination with US-1 Echozy. New variation for MECT has been added.

This unique anthropomorphic upper abdomen phantom allows obtaining CT images approximate to clinical data.

The elaborate anatomy of organs allows a multi-dimensional approach.

Liver, portal vein, bile duct, hepatic vein, hepatic artery, kidneys, pancreas spleen and IVC are embedded along with synthetic bones.

Each individual organ has a particular Hounsfield number close to human organ.

Embedded anatomical structures are Lungs (no internal structure), Heart (no internal structure), liver, portal vein, bile duct, hepatic vein, hepatic artery, kidneys, pancreas, spleen, IVC, spinal column, ribs.

Vessels and organs with a contrast agent can be included as a special order.





Features 1. Two variation to meet your requirements:
CT type (no contrast enhancement)
MECT type (vessels with 13mgI/ml** iodine and the liver of multi-energy CT compatible material).

**Concentration of iodine can be custom-ordered.
Training skills / Applications CT
Multi energy CT
Set includes 1 abdomen phantom / 1 set of sample X-ray data (DVD) / 1 storage case / manual
Size (approx.) W27xD16xH30cm / W10.6xD6.3xH11.8in
Packing size (approx.) W44 x D39 x H42cm / W17.3 x D15.4 x H16.5in
Weight (approx.) 12kg / 26.4lb
Packing weight (approx.) 19kg / 42lb
Materials Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)
Anatomy lungs (no internal structure) / heart (no internal structure) / liver / portal vein / gallbladder / hepatic vein / hepatic artery / kidneys / pancreas / spleen / aorta / IVC / spinal column / ribs / *Vessels and organs with a contrast agent can be included as a special order.
