Prostate Training Phantom

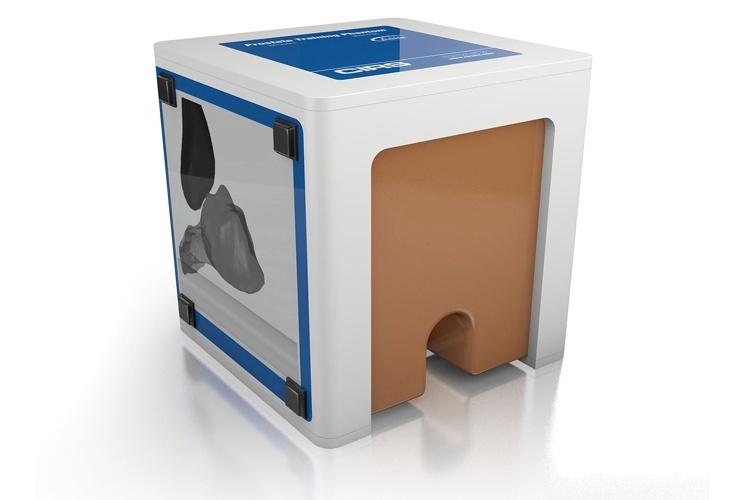

070l-750x500_1763470604
  Ideal Training Device for Image-Guided Procedures The Model 070L is a realistic and durable prostate training phantom for both diagnostic and interventional procedures. Enhanced realism has been achieved with a Zerdine® gel formulation that better simulates the ultrasound contrast between the p ...Read more



  • Description
  • Specifications



Ideal Training Device for Image-Guided Procedures

The Model 070L is a realistic and durable prostate training phantom for both diagnostic and interventional procedures.

Enhanced realism has been achieved with a Zerdine® gel formulation that better simulates the ultrasound contrast between the prostate and background tissue. The gel formulations provide CT, MR and elastography contrast for multi-modality imaging. CIRS’ proprietary Z-SkinTM formulation more accurately simulates the rectal wall, providing a more realistic scanning environment.

Z-SkinTM provides perineal access for interventional procedures, and closes up on itself after it is punctured so that the Zerdine® gel inside the phantom is not exposed to air during scanning. Minimal air exposure better protects the gel from drying out, thus increasing the phantom’s useful life. In addition, Z-Skin is extremely stretchable and will protect the gel inside the phantom from tearing when the rectal probe is manipulated at severe angles. The phantom accommodates both end-fire and side-fire ultrasound transducers. Zerdine® is specially formulated to minimize tearing when punctured, providing a self-healing capability that dramatically extends the life of the phantom during interventional procedures.

The phantom contains embedded lesions. For users interested in image fusion studies, the phantom can be purchased as a kit to include a serial-number specific CT DICOM Data set for reference.



Features:

  • Includes bladder rectal wall, perineal membrane and urethra plus digitally modeled prostate gland and seminal vesicles.
  • Phantom available with and without lesions
  • Train for ultrasound-guided seed implantation, cryosurgery and needle biopsy in one phantom





Container

  • Dimensions: 12.7 x 12.7 x 12.7 cm
  • Weight: 2 lbs
  • Probe opening: 12 mm



Perineal Membrane

  • Material: Z-Skin
  • BACKGROUND GEL
  • Standard Ultrasound background
  • 0dB with respect to liver reference



Urethra

  • Dimensions: 0.7 cm Ø
  • Material: Zerdine®, anechoic



Seminal Vesicles

  • Dimensions: 7 mm Ø x 10 cm long
  • Material: Zerdine, hypoechoic with respect to background



Prostate

  • Hypoechoic with respect to background
  • 45 cc Digitally Modeled with seminal vesicles and bladder
  • Model 070L: Embedded lesions



Rectal Wall

  • Material: Z-Skin



Model 070 Includes

  • Tissue-Equivalent Prostate Phantom
  • User Guide



Model 070 Kit Options

  • 070L-035: includes all parts from standard Model 070, CT DICOM  Data Set (Serial number specific, 1.5 mm slice thickness @ 120 kvp)
