Description
Specifications
The HP HEAD SUPPORTS - REGULAR DENSITY are used in combination with the base plates, EFFICAST® PRE-CUTS, cushions and other hardware from the RAYCAST® HIGH PRECISION and the AIO SOLUTION® sets. Together with the parts of these sets they form a reproducible patient positioning and immobilisation device in the field of radiotherapy. The head supports offer, together with the blocks & wedges, the opportunity to position the patient’s head in a stable and reproducible way.
The head supports can be positioned on the base plates or blocks & wedges by means of positioning knobs on the bottom of the head support. Always verify that the devices are positioned correctly on other cushions and parts.
These head rests are primarily made of Polyurethane foam which degrades by radiation. If used in treatment we recommend to switch them regularly with the same types from simulation so each head rest in the inventory receives a comparable dose.
This product is MRI-safe.
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

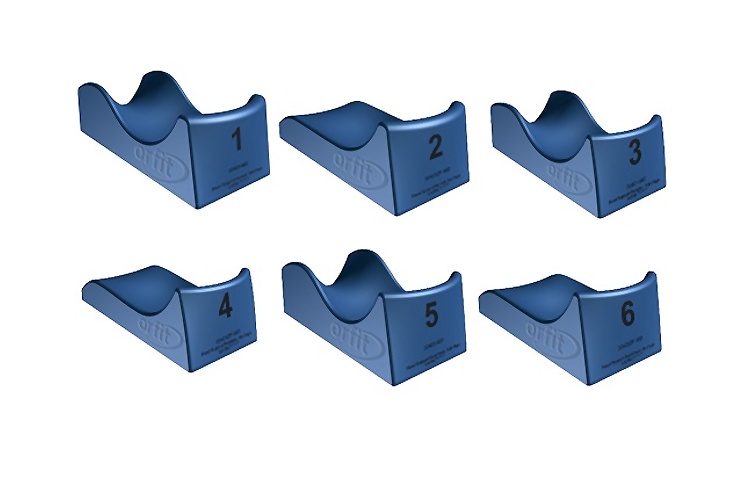

Regular Density Head Supports: Set of 6 (model 1 - 6)
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

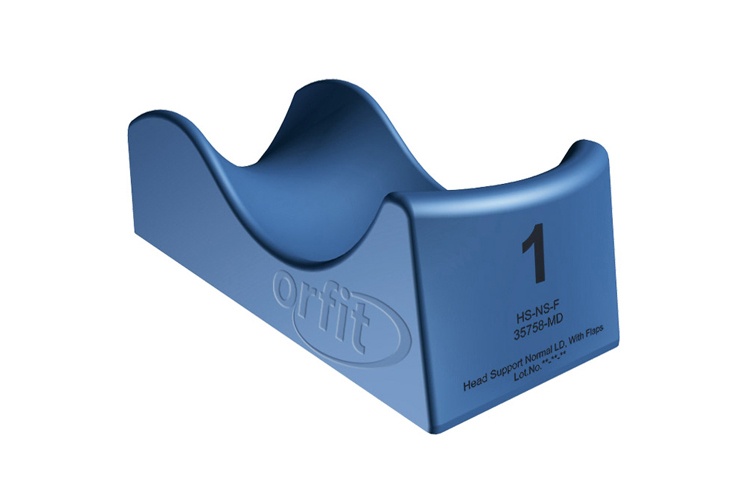

Regular Density Head Supports: Model 1 – with lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

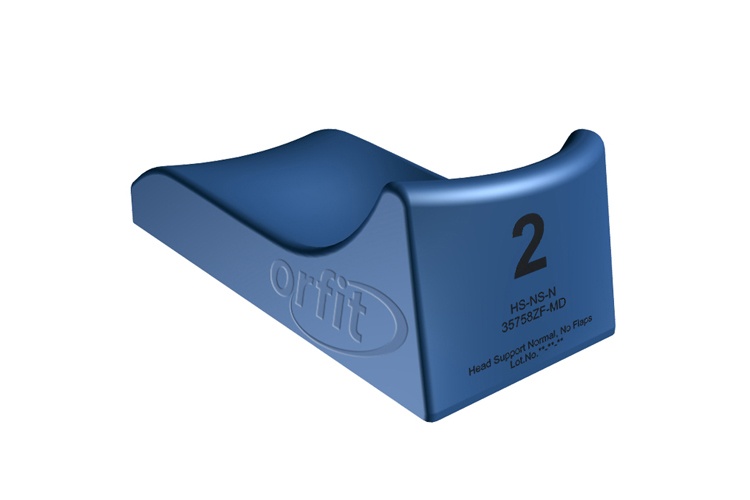

Regular Density Head Supports: Model 2 – without lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

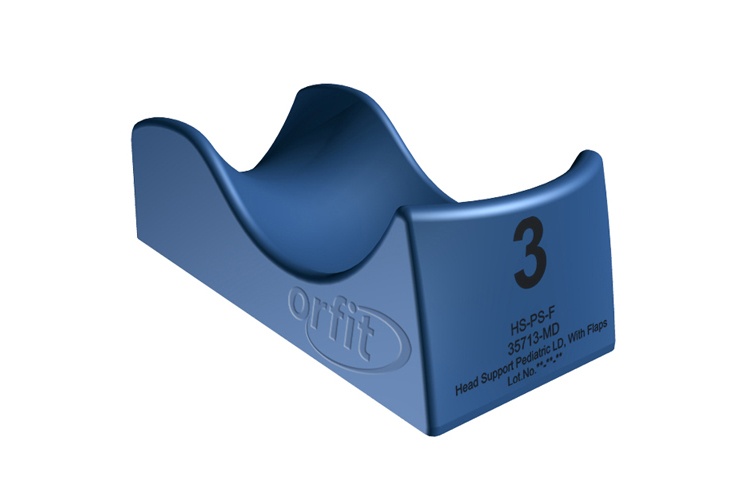

Regular Density Head Supports: Model 3 – with lateral neck flap
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

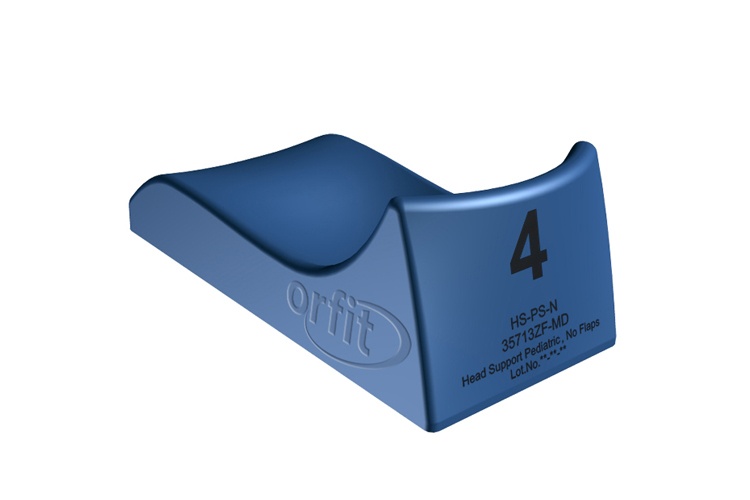

Regular Density Head Supports: Model 4 – without lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

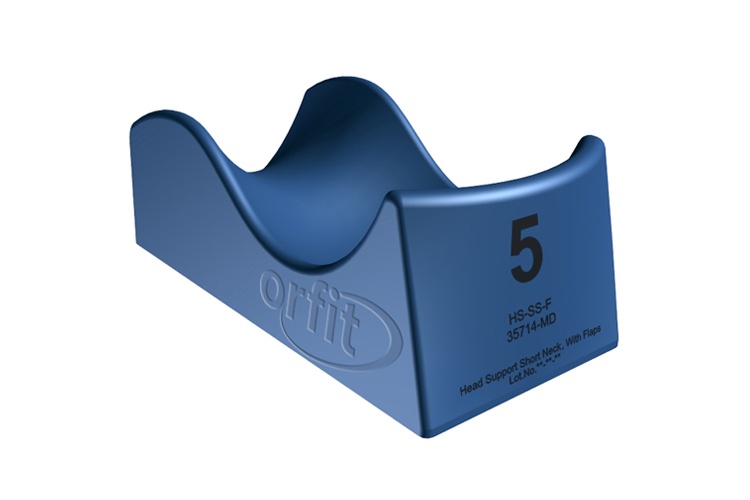

Regular Density Head Supports: Model 5 – with lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

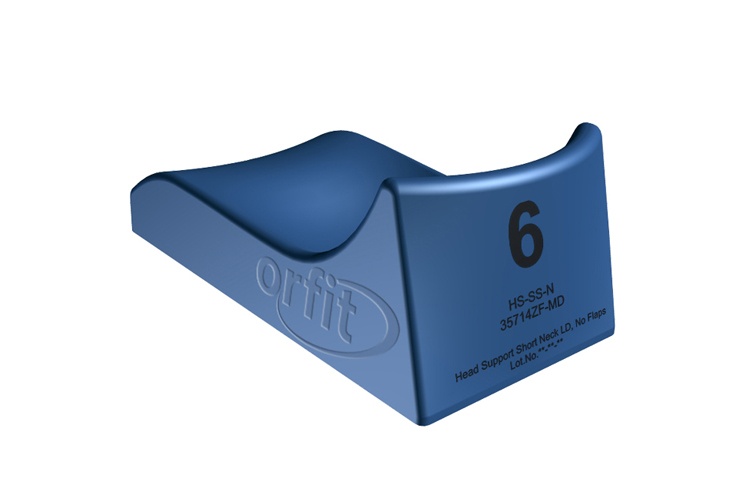

Regular Density Head Supports: Model 6 – without lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

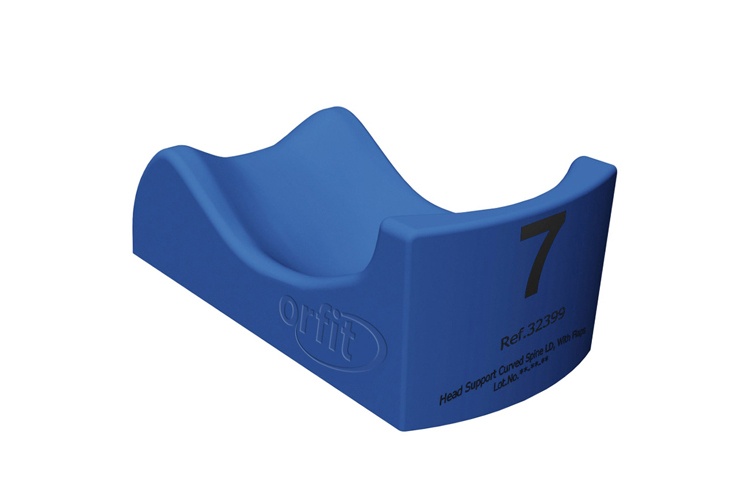

Regular Density Head Supports: Model 7 – for patients with a curved spine
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.

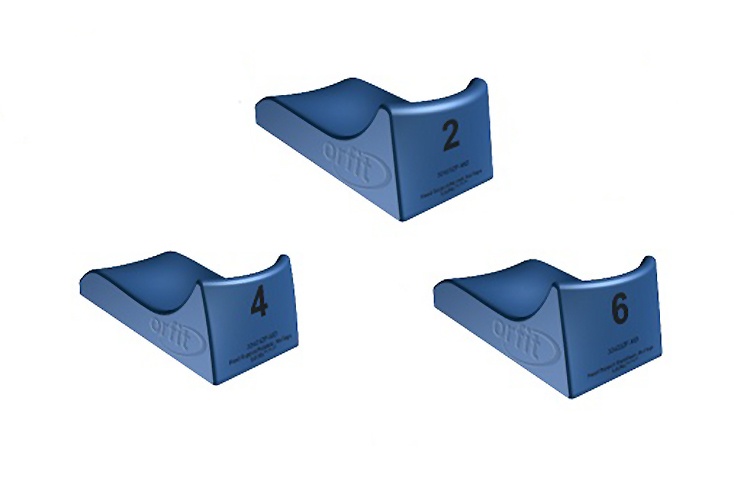

Regular Density Head Supports: Support Set – without lateral neck flaps
Physical Properties
The following physical properties apply to these devices:
Material:
PU foam
Density:
Regular
Interface:
Round
Dimensions:
L 230 - 257 mm W 108 - 120 mm H 82 - 92 mm
Weight:
0.50 – 0.67 kg
Mechanical Properties
The Regular Density head supports are made of PU foam and have a good dimensional stability.
Dosimetric Properties
These head supports are made of regular density foam that has the following dosimetric properties per cm of material through which the beam passes:
Attenuation (± 0.15%)
Skin build-up (± 0.1 mm)
6 MV
15 MV
mm H2 O equivalence
0.57%
0.46%
1.38 mm/mm material
Note: Use these numbers as a guidance only. Perform the measurements again in your department to verify these results.
