Fetal & Neonatal Test Equipment

vPad-IN
vPad-INvPad-INvpad-in-2_750x500
  The Next Generation Infant Incubator & Radiant Warmer Analyzer Tests to IEC 60601-2-19, 2-20 and 2-21 Follows both Edition 1 and Edition 2 of Standard Built on the Vision-Pad platform to give you greater flexibility and scalability Wireless control of tests within incubator Changes to ...Read more

Fetal & Neonatal Test Equipment


  • Description
  • Specifications



The Next Generation Infant Incubator & Radiant Warmer Analyzer

  • Tests to IEC 60601-2-19, 2-20 and 2-21
  • Follows both Edition 1 and Edition 2 of Standard
  • Built on the Vision-Pad platform to give you greater flexibility and scalability
  • Wireless control of tests within incubator
  • Changes to test can be made without disturbing heat environment
  • Measures all parameters automatically following user-defined protocols
  • Results can be merged with Electrical Safety test results

vPad-IN is a next generation infant incubator and radiant warmer testing system that meets the requirements of the IEC Standards for Incubators (IEC 60601-2-19), Transport Incubators (IEC 60601-2-20) and Radiant Warmers (IEC 60601-2-21).

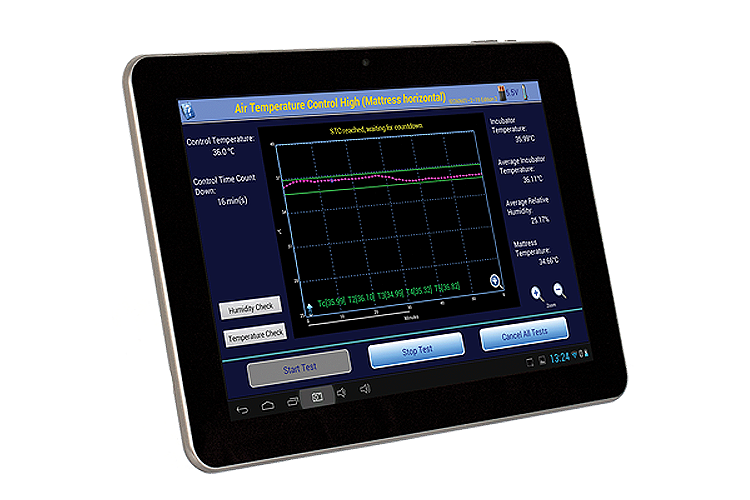

vPad-IN has all the functionality and scalability that you have come to expect from Vision-Pad Technology products. Parameters are sensed inside the incubator environment and results are transmitted wirelessly to a 10.1" Android tablet for analysis and display. Test parameters and test protocols can be modified without disturbing the equilibrium of the heated environment, thereby minimizing test times.

  • Compatible with closed, forced air convection incubators, and open, radiant infant warmers.
  • Simultaneously measures humidity, airflow, sound, and 6 different temperatures
  • Tests are carried out in accordance with IEC 60601-2-19, IEC 60601-2-20, and IEC 60601-2-21
  • All sensors are independently movable, to be placed in positions required by the Standard
  • Sound level measurements may be taken outside the incubator for external alarm test
  • Results can be merged with vPad Electrical Safety test results
  • Optional precision controlled heater can accurately test body temperature sensors





Temperature:

  • Measurement Range: 0 °C to 50 °C
  • Accuracy: T1+/- 0.05 °C
  • Resolution: 0.01 °C
  • Convection: 5 “puck” sensors (T1 - T5) - radiant warmer
  • Air Convection:
  • 5 sensors (alternate “pos” T1 - T5) - incubator 1 Mattress Temperature Sensor
  • Skin Sensor2:
    • Sensor “oven” with thermal pad contact
    • 28 °C to 40 °C in 2 °C increments
    • Resolution: 0.01 °C
    • Accuracy: +/- 0.05 °C



Air Flow:

  • Measurement Range: 0.1 to 1 m/s
    Accuracy: +/- 0.1 m/s at 50% RH +/- 15%
    Resolution : 0.01 m/s



Sound Level:

  • Measurement Range: 30 dBA to 100 dBA, Type III
  • Accuracy: +/- 3 dBA
  • Resolution: 0.1 dBA



Relative Humidity:

  • Measurement Range: 0 - 100% Non-condensing
  • Accuracy: +/- 3% to 100% RH
  • Resolution: 0.1% RH



Data Retention:

  • Capacity: up to 48 hours per test
  • Sample rate: 1/min or 1/sec, automatic, parameter dependent



Test Specifications:

Incubator Testing Specifications

  • Measures temperature at 6 points as per IEC 60601-2-19 (sub-clause 201.12.1.101\102)
  • Measures air?ow at 4 points in the enclosure per IEC 60601-2-19 (sub-clause 201.12.1.111)
  • Measures sound level inside the incubator per IEC 60601-2-19 (sub-clause 201.9.6.2.1.101)
  • Measures sound level inside the incubator during alarm per IEC 60601-2-19 (sub-clause 201.9.6.2.1.103)
  • Measures sound level outside the incubator per IEC 60601-2-19 (sub-clause 201.9.6.2.1.102)
  • Measures incubator temperature at center point (A) of incubator as per IEC 60601-2-19 (subclause 201.12.1.102)
  • Measures average incubator temperature (AIT) per IEC 60601-2-19 (sub-clause 201.3.202)
  • Measures incubator temperature (IT) per IEC 60601-2-19 (sub-clause 201.3.207)
  • Measures average temperature (AT) per IEC 60601-2-19 (subclause 201.3.203)
  • Measures average temperature at 4 points per IEC 60601-2-19 (sub-clause 201.12.1.102)
  • Measures skin temperature sensor accuracy per IEC 60601-2-19 (sub-clause 201.12.1.103)1
  • Confirms skin temperature sensor control of incubator per IEC 60601-2-19 (sub-clause 201.12.1.104)
  • Confirms independent incubator temperature sensor accuracy per IEC 60601-2-19 (sub-clause 201.12.1.105)
  • Measures difference between average temperature and control temperature per IEC 60601-2-19 (sub-clause 201.12.1.106)
  • Measures actual warm-up time compared to operating manual per IEC 60601-2-19 (sub-clause 201.12.1.107)
  • Measures overshoot and recovery to steady state per IEC 60601-2-19 (sub-clause 201.12.1.108)
  • Confirms humidity reading per IEC 60601-2-19 (sub-clause 201.12.1.109)



Radiant Warmer Testing Specifications

  • Measures skin temperature sensor accuracy per IEC 60601-2-21 (sub-clause 201.12.1.101)1
  • Measures average warmer temperature at 4 points per IEC 60601-2-21 (sub-clause 201.12.1.102)
  • Measures average warmer temperature at center point (A) of incubator as per IEC 60601-2-21(sub-clause 201.12.1.102)
  • Confirms skin temperature sensor control of warmer per IEC 60601-2-21 (sub-clause 201.12.1.103)
  • Confirms airflow is less than 0.1 m/s per IEC 60601-2-21 (subclause 201.12.1.102)
  • Measures sound level on the mattress during alarm per IEC 60601-2-21 (sub-clause 201.9.6.2.1.101)
  • Measures sound level in front of the warmer per IEC 60601-2-21 (sub-clause 201.9.6.2.1.101)



Transport Incubators

  • Testing carried out in accordance with IEC601-2-20



Utility App

  • Enables ad-hoc testing of air?ow, humidity, sound & temperature



* Sensor accuracy heater is an optional accessory
