Defibrillator/Pacer Analyzer

Phase 3

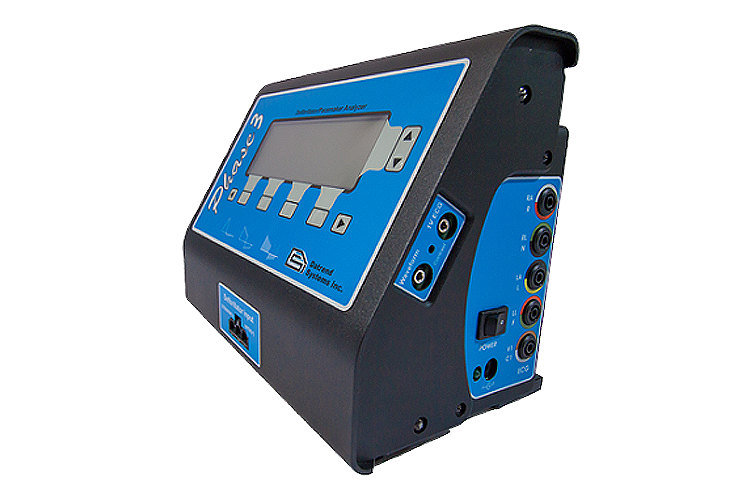

Phase 3phase-3-2_750x500
  Defibrillator / Pacer Analyzer Test all available defibrillators, including monophasic, biphasic, and pulse biphasic waveforms Test AED’s and pacers 32 Autosequences – Save time, save money, save manpower Lightweight – battery operated   Test Pulsed Multiphasic Defibrillators Phase 3 i ...Read more

Defibrillator/Pacer Analyzer


  • Description
  • Specifications



Defibrillator / Pacer Analyzer

  • Test all available defibrillators, including monophasic, biphasic, and pulse biphasic waveforms
  • Test AED’s and pacers
  • 32 Autosequences – Save time, save money, save manpower
  • Lightweight – battery operated



Test Pulsed Multiphasic Defibrillators

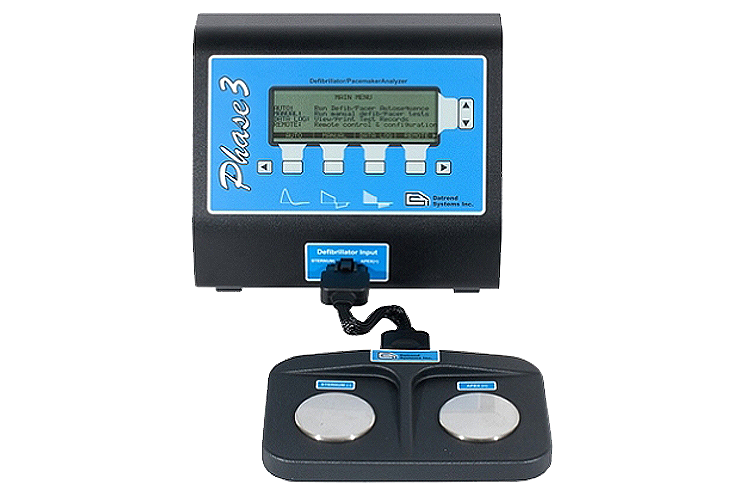

Phase 3 is the first Defibrillator/Pacer Analyzer specifically designed to test Pulsed Multiphasic defibrillators. Test Monophasic, Biphasic and Pulsed Multiphasic Defibrillators, AEDs and Transcutaneous Pacers with 1% accuracy on either line or battery power. Battery provides up to 24 hours or continuous operation and detachable paddle plate provides easy hands-free testing.



Testing Capabilities

USB Communication capability allows real-time waveform capture and efficient data transfer to your PC. Capture high-resolution signal data to a PC running Phase3pc software. Store up to 80 test records and up to 10 defibrillator discharge waveforms as Wave Records.

Use Phase 3pc companion software to create and edit autosequences, download and store test data and wave graphics to your PC. Phase3pc companion software is included as a standard accessory.



Versatility

Phase 3 tests Monophasic, Biphasic and Pulsed Multiphasic Defibrillators, AEDs and Transcutaneous Pacers with 1% accuracy on either line or battery power.



Portability

Detachable Paddle Plate provides easy hands-free testing. Battery provides up to 24 hours of continuous operation.
USB Connectivity

USB Communication capability allows real-time waveform capture and efficient data transfer to your PC.
Real-Time Wave Capture

Capture high-resolution signal data to a PC running Phase3PC software immediately after discharge.



Test Record Storage

Phase 3 provides storage for up to 50 Test Records and up to 10 defibrillator discharge waveforms as Wave Records.



Variable Load Module

Our optional, exclusive VLM allows testing defibrillators at maximum energy with selectable loads from 25 to 175 ohms, in accordance with AAMI DF-80 and IEC 60601-2-4. High-resolution wave graphics and test data are obtained with Phase 3VL software — a standard accessory to the VLM.



Phase 3PC Companion Software

Included as a standard accessory, Phase 3pc allows you to create and edit autosequences, download and store test data and wave graphics to your PC.





Tests Performed

  • Defibrillator Energy, Charge Time and Cardioversion
  • Automated External Defibrillator (AED) Performance
  • ECG Monitor Performance
  • Pacer Sensitivity, Refractory Periods and Noise Immunity
  • Pacer Pulse Characteristics



Energy Measurement, General

  • Load resistance: 50 ohms ±1%, non-inductive
  • ECG amplitude at defib pads: 1 mV QRS
  • WAVEFORM (oscilloscope) Output
  • High Range: 1000:1 amplitude attenuation
  • Low Range: 200:1 amplitude attenuation
  • Waveform Playback: 200:1 time base expansion
  • First Phase Pulse Width: 0.1 - 58 msec
  • Second Phase: Pulse Width 0.1 - 58 msec
  • Interphase Delay: 0.1 - 58 msec
  • Tilt: 0 - 99.9%
  • Modulation Frequency: 1000 - 8000 Hz
  • Modulation Duty Cycle: 0 - 99.9%
  • Test Pulse: 46 Joules ±10%



Defibrillator High Range Energy Test

  • Energy Measurement: 0.0 to 600.0 Joules (±1% ±2 LSD)
  • Voltage Measurement: 0 to 5000 Volts (±1% ±2 LSD)
  • Current Measurement: 0.0 to 100.0 Amps (±1% ±2 LSD)
  • Pulse Width Measurement: Range: 0.5 to 58.36 msec. (±1% ±2 LSD)
  • Trigger Level: 80 Volts
  • Playback Amplitude: 1 mV per 1000 volts on Lead II; 1 mV per 2000 volts at defib pads
  • Test Pulse: 126 Joules ±10%



Defibrillator Low Range Energy Test

  • Energy Measurement: 0.0 to 50.0 Joules (±1% ±2 LSD)
  • Voltage Measurement: 0 to 1000 Volts (±1% ±2 LSD)
  • Current Measurement: 0.0 to 20.0 Amps (±1% ±2 LSD)
  • Pulse Width Measurement: 0.5 to 58.36 msec. (±1% ±2 LSD)
  • Trigger Level: 16 Volts
  • Playback Amplitude: 1 mV per 200 volts on Lead II;
  • 1 mV per 400 volts at defib paddles



Defibrillator Charge Time Test

  • Charge Time Measurement:  0.0 to 99.9 seconds (±1 LSD)
  • Defibrillator Cardioversion Test
  • Sync Delay Measurement: -200 to +800 msec. (±1 LSD)
  • Delay Target: 20 to 65 msec window when enabled
  • Sync Point: Selectable, peak of ECG Q or R wave



AED Performance Test

  • Test Method: Verify AED shock advisory for specified arrhythmia



Pacemaker Pulse Test

  • Pulse Amplitude Measurement: 4 to 250 milliamps, all loads (±1% ±1 LSD)
  • Pulse Rate Measurement: 20 to 220 PPM (±1% ±1 LSD)
  • Pulse Width Measurement: 0.5 to 58.36 msec. (±1% ±2 LSD)
  • Test Load Range: 50 to 1600 ohms, in 50 ohm steps
  • WAVEFORM output: 50 milliamps per volt, all loads
  • Measurement Methods: Average, leading edge, trailing edge, peak
  • Test Pulse: 145 mA ±10%



Pacemaker Noise Immunity Test

  • Test Waveform: 50Hz or 60Hz sine wave
  • Noise Amplitude Range: 0.18 to 10.00 mV peak-to-peak
  • Noise Amplitude Resolution: 0.139 mV



Pacemaker Sensitivity Test

  • Test Waveform: Square (SQR), Triangle (TRI) or Haversine (SSQ) pulse
  • Waveform Width: 10, 25, 40, 100, or 200 msec.
  • Amplitude Range: 0.00 to 3.00 mV peak



Pacemaker Refractory Period Test

  • Paced Refractory Period (PRP):  50 to 750 msec. (±1 LSD)
  • Sensed Refractory Period (SRP): 50 to 750 msec. (±1 LSD)



ECG Simulator

Performance Test Waveforms

  • DC Pulse, 4 seconds, Square Wave, 2 Hz, Triangle Wave, 2 Hz
  • Sine Wave @ 0.1, 0.5, 10, 20, 40, 50, 60, 70, or 100 Hz



Normal Sinus Rhythm

  • 30, 60, 90, 120, 150, 180, 240 or 300 BPM



Cardioversion, Shock Advisory and AED Test Waveforms

  • Atrial Fibrillation, Coarse
  • Atrial Fibrillation, Fine
  • Asystole 1 (random, low-frequency baseline fluctuation)
  • Asystole 2 (flat line/zero volts)
  • Supraventricular Tachycardia (SVT-140)
  • VTACH @ 140, 160, 190 BPM
  • Torsades de Pointe @ 200 BPM
  • Coarse Ventricular Fibrillation (CVF) / Fine Ventricular Fibrillation (FVF)
  • Square Pulse   1ms to 60 BPM



Arrhythmia Simulations

  • Second Degree A-V Block, Premature Atrial Contraction (PAC), R-on-T PVC,
  • Right Bundle Branch Block (RBBB), Premature Ventricular Contraction (PVC)
  • Multifocal PVC, Run of 5 PVC, Bigeminy, Trigeminy



Pacemaker Test Waveforms

  • SQR (square) Pacer Trigger, width = 2, 25, 40, 100 or 200 msec
  • TRI (triangle) Pacer Trigger, width = 10, 25, 40, 100 or 200 msec
  • SSQ (haversine) Pacer Trigger, width = 10, 25, 40, 100 or 200 msec



Performance Specifications

  • Output Level: Selectable, 1 mV, 2 mV or 0.5 mV into ECG Lead II
  • Impedance: 500 ohms (±0.2%), Amplitude: ±2%



Non-Volatile Memory

Data Capacity

  • 50 Test Records, 10 Defibrillator Waveform Records, 32 Autosequences



Test Record Content

  • Device ID, Time/date of test, Test type (Manual or Auto), Device type (defib. or AED)
  • Up to 10 defibrillator energy tests (or 32 AED energy tests)
  • 1 defibrillator charge time test
  • Up to 4 defibrillator cardioversion tests
  • Up to 12 ECG performance tests
  • Up to 10 pacer pulse tests
  • 1 pacer noise immunity test
  • Up to 2 pacer sensitivity tests
  • Up to 2 pacer refractory period tests



Interface

  • LCD (5.2" x 1.5"; 40 characters x 8 lines text; 240 x 64 pixel graphics)
  • Defibrillator Input: Molex 42820-3212
  • Pacemaker Input: 2 x safety-style banana jack (red (+)/black (-))
  • ECG Simulator Outputs: 10 x safety banana jack (RA; RL; LA; LL; V1-V6)
  • Defibrillator/Pacer Waveform Output: 1/8" mono phono jack
  • High-Level ECG Output: 1/8" mono phono jack
  • USB Port: Type "B", USB 1.1 or USB 2.0 compatible.
  • Serial (RS-232) Port: DB9 Male, RS-232C, bi-dir, CTS handshaking, 9600 baud, 8-N-1
  • Keyboard Port: PS/2 (6-pin miniDIN female)



Power Supply: Internal 12.5V/1.4A-h NiCad, 24 hours of use between charges

Environment: 15°C to 40°C, 10% to 90% RH, Indoor Use Only, Category II

Dimensions: 9.5" W x 8" H x 5.5" D (24cm W x 20cm H x 14cm D)

Weight: 3 lbs. (1.4 kg)
