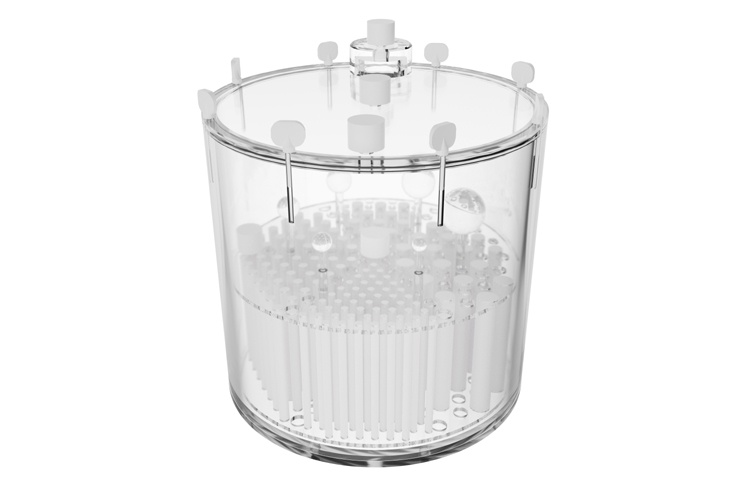

Pro-NM Performance HD

pro-nm_performance_hd_750x500
  The phantom for high resolution NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). Among other things, it can be used to evaluate: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, recon ...Read more



  • Description
  • Specifications



The phantom for high resolution NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). Among other things, it can be used to evaluate: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, reconstruction filters on spatial resolution, attenuation and scatter compensation.



Technical data:

  • Main cylinder:
    • Inside cylinder diameter: 206 mm
    • Inside cylinder height: 186 mm
    • Cylinder wall thickness: 7 mm
  • Cold rods insert:
    • Rod diameters: 3.2, 4.8, 6.4, 7.9, 9.5 and 11.1 mm
    • Height of rods: 88 mm
  • Cold spheres:
    • Solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8 mm
    • Height of the center of the spheres from the base plate: 127 mm
  • Optional PET Lid with cylindrical samples:
    • Refillable thin-walled cylinders, diameters: 8, 12, 16 and 25 mm
    • Water filled cylinder diameter: 25 mm
    • Air filled cylinder diameter: 25 mm
    • PTFE solid cylinder diameter: 25 mm
    • Cylinder height: 38 mm
  • Optional heavy duty carrying case





08-106 - standard version
08-107 - version with the PET Lid



Product features:

  • Complies with:
    • NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
    • AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
    • AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
    • ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
