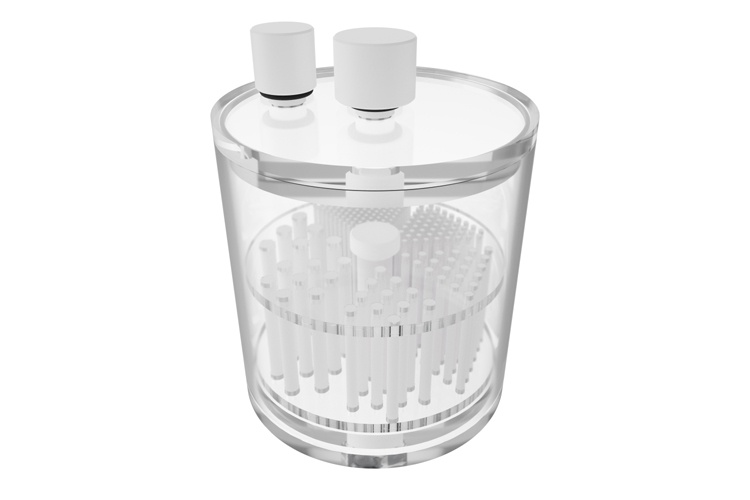

Pro-NM Performance MINI

The phantom for performance evaluation of small animal systems or ultra-high resolution ECT systems. It can be used to evaluate: center-of-rotation error, non-uniformity artifacts and spatial resolution. Available in two sizes for FOV at least 45 mm or 75 mm.

Technical data:

• At least 75 mm FOV version:
  •  Main cylinder:

    • Outside cylinder diameter: 80 mm
    • Inside cylinder diameter: 74 mm
    • Inside cylinder height: 65 mm
  • Cold rods insert:

    • Rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
    • Height of rods: 34 mm

• At least 45 mm FOV version:
  • Main cylinder:
    • Outside cylinder diameter: 50 mm
    • Inside cylinder diameter: 45 mm
    • Inside cylinder height: 65 mm
  • Cold rods insert:
    • Rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
    • Height of rods: 34 mm
  • Optional carrying case
