Radiation Monitoring System for Nuclear Power Plants

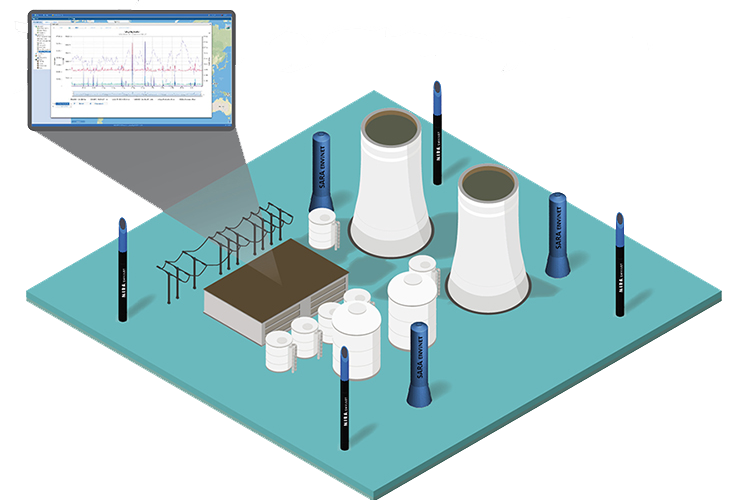

sys171110002_750x500
  The turnkey, drop-and-go Thermo Scientific™ Area Monitoring Package for Nuclear Power Plants for nuclear power facilities is ideal for situations where simple and rapid area monitoring setup is needed. The package is designed for rapid deployment for remote monitoring use in a wired (LAN) or wire ...Read more

Area Radiation Monitoring


  • Description
  • Specifications



The turnkey, drop-and-go Thermo Scientific™ Area Monitoring Package for Nuclear Power Plants for nuclear power facilities is ideal for situations where simple and rapid area monitoring setup is needed. The package is designed for rapid deployment for remote monitoring use in a wired (LAN) or wireless environment.

Thermo Scientific Area Radiation Monitoring System incorporates the highly versatile and functional Thermo Scientific CNET1500 Network Docking Station Gamma Monitor (CNET 1500 NDS) with the industry leading software monitoring system—Thermo Scientific ViewPoint Enterprise™.



Components and Key Features of Package:

  • CNET1500 NDS (with EPD)
    • Wired (LAN) or wireless (2.4 GHz) connectivity to ViewPoint server
    • Point-to-point or radio base station mode (for connecting to other CNETs or EPD transmitters)
    • Multi-range EPD sensor
    • Configurable alarm set points
    • Audible and visual alarms
    • Drop-and-go setup
  • ViewPoint™ Enterprise Software System
    • ViewPoint server and single client workstation
    • EPD + CNET1500 NDS Plug-ins
    • Fully networkable configuration - remote viewing capable
    • Email/text interface
    • Full graphing and historical data analysis
  • CNET1500 W Wireless Network Base
    • 2.4 GHz wireless base capability
    • LAN compatible
    • Remote antenna capable
  • EPD-G Gamma Radiation Detector
    • 0.5 mR/h to 30 R/h range
    • Internal alarms/self diagnostics
  • Onsite support/training
    • Complimentary ViewPoint training class (half-day)
    • Configuration and Field Set Up Assistance (half-day)



Includes:

  • CNET1500 NDS (with EPD)
  • ViewPoint Enterprise Software System
  • CNET1500 W Wireless Network Base
  • EPG-G Gamma Radiation Dosimeter
  • Onsite support/training



Recommended for:

  • Radiation waste handling activities
  • Outage related activities: Steam generator platform coverage; Fuel handling activities; Reactor maintenance activities such as CRDM maintenance, reactor incore/seal table, reactor cavity, etc.
  • Monitoring of high rad areas to streamline and improve HRA entry control





Approvals US FCC: Part 15.247; EU: ETS 300.328; License free
Audible Alarm Mode: Ultra Loud Continuous Tone; Sound Pressure: 108 dBA at 15 VDC, 24 inches;
Backup Battery 9.6 Volt Ni-MH, 8xSC, 3000 mAh
Cabinet Material Watertight, injection molded polycarbonate
Channels USA: 75; France: 33; Spain: 25; Japan: 25
Current Power Supply: 100 mA; Strobe Light: 150 mA at 12 VDC; Sound Alarm: 30 mA at 5 VDC
Description Area Monitoring Package
Channel Data Rate 460 Kbps
Operating Range (English) Indoor: 450 to 900 ft.; Outdoor w/ Supplied Antenna: 3000 ft. (w/ Gain Antenna: >6 miles)
Operating Range (Metric) Indoor: 137 m to 275 m; Outdoor: 915 m with supplied
Radiation Type Gamma
Sensitivity 0.5 mR/h-30R/h range
Error Correction 24-bit CRC and ARQ
Frequency Band Details 2400 to 2483 MHz (USA); 2448 to 2480 MHz (France)
Includes CNET1500 NDS (with EPD); ViewPoint Enterprise Software System; CNET1500 W Wireless Network Base; EPG-G Gamma Radiation Dosimeter; Onsite support/training
Interface Board Radio Interface; RS-232 Asynchronous
I/O Data Rate Up to 230 Kbps
Material Watertight, injection molded polycarbonate
Modulation Type GMSK
Network Protocol ARQ: Dynamically assigned TDMA
Network Topology Star
Output Impedance 50Ω
Processor CNET 1500
Receiver Sensitivity -93 dBm for 10-5 BER
Strobe Light Flash Rate 115/min.
Strobe Light Operating Life 200 hr.
Transmit Power Output 100 mW
Product Type Area Radiation Monitoring System for Nuclear Power Plants
Weight (English) 1.75 lb.
Weight (Metric) 0.79 kg
Voltage Power Supply: 9 VDC; Strobe Light: 6 - 14 VDC; Sound Alarm: 5 - 15 VDC
Unit Size Each
