SuperMAX™ Electrometer

supermax_750x500

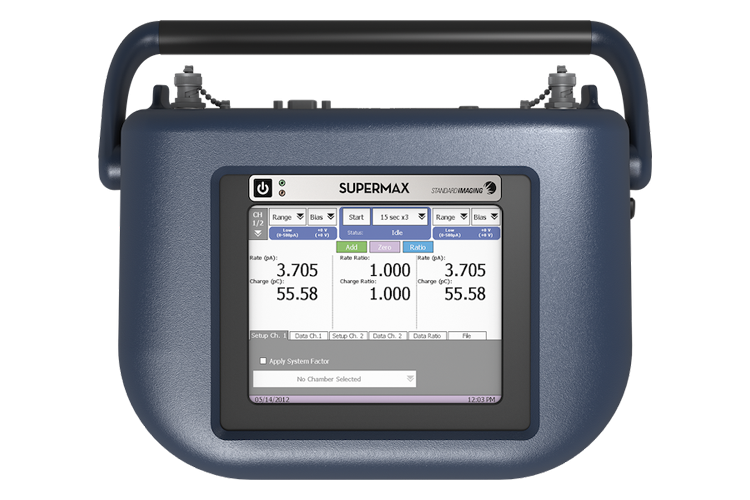

  Advanced Dosimetry The premier two-channel, reference-grade electrometer on the market.    The Next Generation Electrometer Built on the MAX 4000's legacy of highly accurate, reference-grade measurements, combined with a revolutionary touchscreen interface and a host of advanced measurement f ...Read more



  • Description
  • Specifications



Advanced Dosimetry

The premier two-channel, reference-grade electrometer on the market.



The Next Generation Electrometer

Built on the MAX 4000's legacy of highly accurate, reference-grade measurements, combined with a revolutionary touchscreen interface and a host of advanced measurement features, the SuperMAX redefines what an electrometer should be.



Two Independent Measurement Channels

Independent control over range, bias voltage, and applied system factor. Both channels feature extensive range (0.001 pA to 500.0 nA, 0.001 pC to 999.9 µC) for use in a variety of applications, including ratio measurements.



Built-In Detector Library

Eliminates the need for a PC or to apply system factor and temperature/pressure corrections. Store over 100 detectors and calibrations. Apply individual factors to one or both measurement channels.



Easy-to-Use Interface

Large, color display with built-in touchscreen. On-screen keypad and pull down menus allows for easy access to settings and detector library.





Rate Mode Display Ranges

  • LOW: 0.001 pA – 500.0 pA
  • HIGH: 0.001 nA – 500.0 nA



Charge Mode Display Ranges

  • LOW: 0.001 pC – 999.9 μC
  • HIGH: 0.001 nC - 999.9 μC



Rated Effective Range on Input Currents Per IEC 60731 for Reference Grade

  • 0.400 pA – 500.0 nA (± .25% of minimum effective scale reading)



Measuring Range

  • LOW: 0.400 pA - 500 pA, 0.400 pC - 999.9 μC
  • HIGH: 0.400 nA - 500 nA, 0.400 nC - 999.9 μC



Bias Voltage

  • Nominal ±1000 V
  • 0, (±) 100 - 1000 V in 1 V increments



Range Switching

  • User selectable



Display Resolution

  • LOW: Rate mode/Charge mode
  • 0.001 pA / 0.001 pC
  • HIGH: Rate mode/Charge mode
  • 0.001 nA / 0.001 nC



Repeatability

  • Low range: 0.25%
  • High range: ± 0.1%



Long Term Stability: ± 0.5% over 1 year

Stabilization Time: ± 0.1% of value at 1 hour for measurements taken at 15 minutes and 6 hours

Non-linearity:± 0.25%

Zero Drift: Rate mode: ± 0.25% of minimum effective scale reading (LOW/HIGH: ± 0.001 pA / ± 0.001 nA)

Zero Shift: Rate mode: ± 0.25% of minimum effective scale reading (LOW/HIGH: ± 0.001 pA / ± 0.001 nA)

Charge Leakage Current: LOW/HIGH: ± 0.001 pA / ± 0.001 nA



Response Time

  • Low range rate: 12 seconds, High rnge rate: 2 seconds
  • Low range charge: 2 seconds, High rangecharge: 0.3 seconds



Main Software Functions

  • Channel 1 Measurement, Channel 2 Measurement, Channel 1 & 2 Measurement, Scintillator
  • Measurement, Check Source Library, Chamber Library, Scintillator Baseline Library, Preferences



Charge Collection Modes

  • Timed Mode - Selectable timer from 1 to 600 seconds in 1 second increments
  • Continuous Mode (Manual Start/Stop) - Press Start to begin collection and Stop to end
  • Trigger Mode – current exceeding pre-selected trigger values starts and stops collection



Countup/Countdown Resolution

  • 1 second (count up for Continuous Mode, count down for Timed Mode)



Trigger Levels for Charge

  • Collection: Start value must be larger than stop value (set via Preferences interface)
  • Start 0.2 - 9.9 pA
  • Stop 0.1 - 9.8 pA



Operating Parameters

  • Temperature 15 to 35 °C
  • Relative Humidity 20 to 80% non-condensing
  • Pressure 650 to 770 mmHg



Storage Parameters

  • Temperature -15 to 50 °C
  • Relative Humidity 10 to 95% non-condensing
  • Pressure 600 to 800 mmHg



Display: Color LCD TFT touch screen. VGA (640x480) resolution, 6.4” diagonal

Input: 2 channels, BNC two lug triaxial connector (TNC option is available.)

Bias Voltage: ± VDC for the following: 0 to 1000 VDC in 1 VDC increments, 350 μA max

Zeroing: Zero via button push - Display indicates zeroing in progress

Ports: RS232 (Default: Uni-directional 19,200 baud, 8 data bits, no parity, 1 stop bit; Bi-directional operation via user commands, tech note available upon request) (2) USB ports (keyboard, thumb drive, or mouse support) Ethernet (internal use only, not currently supported)



Chamber library calibration coefficients

  • Amp System factors
  • Nsk:μGym²/(h*A)
  • Nsk:Gym²/(h*A)
  • Nx,sk:Rm²/(h*A)
  • NA:GBq/A
  • NA:Ci/A
  • ND,W:mGy/(sec*A)
  • NA:MBq/A
  • NA:mCi/A
  • Coulombs System Factors
  • Nk:Gy/C
  • Nx:R/C
  • NGas:Gy/C
  • ND:Gy/C
  • ND,W:Gy/C



Real-Time Clock: On board, for data validation and storage

Audio: On board speaker for audio feedback on start-up, button presses, operator alerts, etc.



Dimensions

  • Width 26.7 cm
  • Height 8.1 cm
  • Length 21.1 cm
  • Weight 2.5 kg
  • Mode of Operation: Continuous



Power Requirements

  • 100-240 VAC, 0.5 A max, 50/60 Hz input to external power supply, 9 VDC, 2.0 A power supply output to electrometer input, Globtek®, Inc. model GTM 96180-1811-2.0-T.
  • The use of any other power supply and using alternates other than the UL/CSA recognized power cord can degrade minimum safety. The proper replacements from Standard Imaging, Inc. are required for compliance with the requirements of IEC 60601-1.



Product Standards

  • IEC 60601-1: 3rd Edition1 (Externally Certified)
  • IEC 607312 (Designed to Meet)



Shock Classifications

  • Class I - External Power Supply
  • Class II - Electrometer
