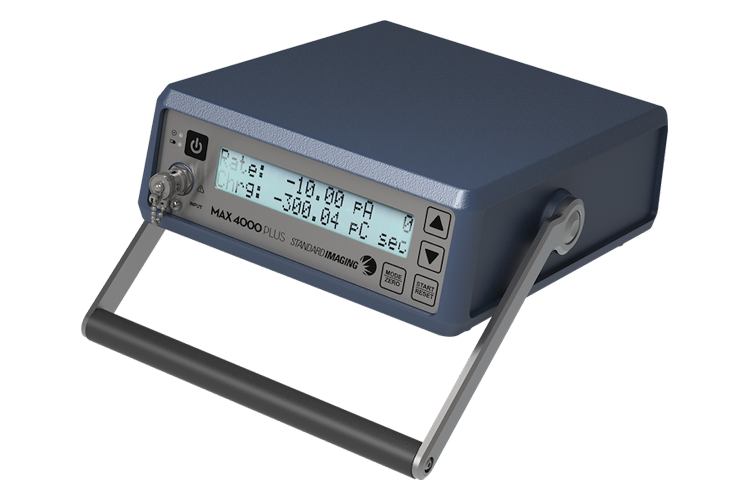

MAX 4000 Plus Electrometer

max4000_750x500_1201749001
  Reference grade instrument for use in all radiation therapy applications One of the most widely used electrometers; the MAX 4000 Plus is a versatile, reference-grade tool ideal for a spectrum of radiation therapy applications.   New Look, Same Accurate Measurements The MAX 4000 Plus overall d ...Read more



  • Description
  • Specifications



Reference grade instrument for use in all radiation therapy applications

One of the most widely used electrometers; the MAX 4000 Plus is a versatile, reference-grade tool ideal for a spectrum of radiation therapy applications.



New Look, Same Accurate Measurements

The MAX 4000 Plus overall design and display has been redesigned for easier set-up and a clearer output of measurements and data.



Low Noise, Repeatable Measurements

Exceptional 0.001 pA to 500.00 nA range, 0.01 pC to 999,999 nC range. 0.1% repeatability and exceptionally low leakage of less than 1 fA. Digital filter eliminates nearly all the effects of noise, resulting in stable, exact measurements.



Powerful Data Management

MAX COMM™ software allows for comprehensive control of dose and dose-rate measurements, chamber detectors, remote operations and data logging.





Dimensions

  • Height 7.9 cm
  • Width 22.6 cm
  • Length 24.8 cm
  • Weight 1.7 kg



Display Range

  • RATE:
    • Low Range 0.001 pA – 1000.00 pA, 1 fA resolution
    • High Range 0.001 nA – 500.00 nA, 1 pA resolution
  • CHARGE:
    • Low Range 0.01 pC – 999,999 nC, 10 fC resolution
    • High Range 0.01 nC – 999,999 nC, 10 pC resolution



Charge Collections

  • TRIGGER: Automatic start, stop, and reset based on user defined thresholds (Start: 0.02 – 9.9 pA; Stop: 0.01 – 9.8 pA)
  • TIMED: User set duration options will increase 1-10 (1sec increments) 15-120 (15sec increments); 120-600 (60sec increments)
  • CONTINUOUS: Unlimited duration with manual stop



Range Switching: User selectable

Repeatability: ± 0.1% (IEC 60731 requirement: ± 0.5%)

Long-Term Stability: 0.5% (over one year)

Stabilization Time: ± 0.5% (IEC 60731 requirement: ± 0.5% of value at 1 hr for measurements taken at 15 min and 6 hrs)

Response Time: High Range Rate: 3 s

Low Range Rate: 15 s All Ranges Charge: 0.5 s

Non-Linearity: ± 0.2% (IEC 60731 requirement: ± 1.0%)

Conformity: CE 93/42/EEC, Reference class according to IEC 60731

Zero Drift: High Range: ± 0.1%

Low Range: ± 0.25% IEC 6731 requirement: ± 0.5%



Zero Shift

  • High Range: ± 0.1%
  • Low Range: ± 0.25% IEC 6731 requirement: ± 0.5%



Display: Backlit LCD, 2 x 20 with 5/16" characters
Input: BNC two lug, triaxial connector



Bias Voltage

  • Nominally ±450 volt bias
  • -450 to -100, 0, 100 to 450 (Ranges in 50 Volt Increments)

ACCURACY: ± 0.3 volt

Zeroing: Automatic zero function, user activated

Output: Isolated RS-232; bidirectional 19,200 baud rate; 8 data bits; no parity; 1 stop bit; compatible with Argus QC4 software

Power: 100-240 VAC, 0.5 A max, 50/60 Hz input to external power supply, 9 VDC, 1.7 A power supply output to electrometer input, UL/TUL listed power supply; internal, user replaceable battery: 8 hrs per charge

Product Standards: CE 93/42/EEC
