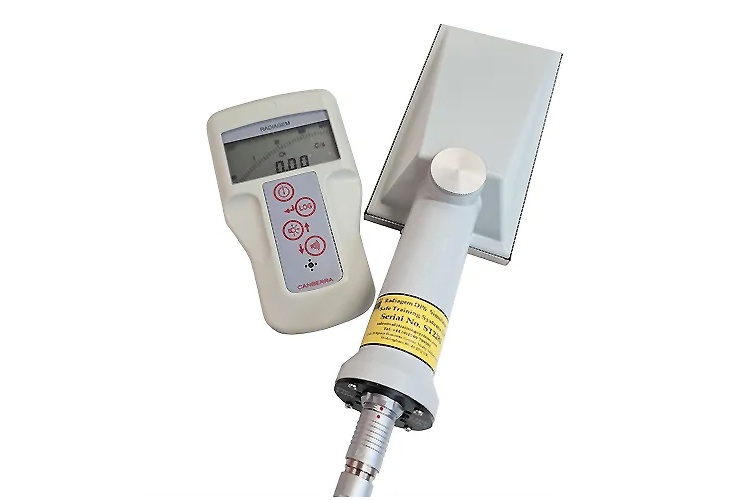

STS Radiagem DP6 Smartprobe

radiagem_dp6_750x500
  The STS Radiagem Simulation Probe consist of a simulated  probe housing STS electronics and cable connector so that it will operate with a real Mirion Radiagem 2000  meter. This probe detects the gas given off by the STS simulant, which has been applied to the surface to be monitored. This “radia ...Read more



  • Description
  • Specifications



The STS Radiagem Simulation Probe consist of a simulated  probe housing STS electronics and cable connector so that it will operate with a real Mirion Radiagem 2000  meter. This probe detects the gas given off by the STS simulant, which has been applied to the surface to be monitored. This “radiation” may be detected by passing the probe close to and slowly over the surface, as would be done with a real probe when used by a skilled operator. Too fast, or too far away results in no detection – excellent training

The Smart Probes uniquely turn themselves on when the instrument is switched on.

Cross contamination can easily be demonstrated to Nuclear industry trainees, as can decontamination – both benefits of using a “real” contamination, even if not radioactive.
The contamination lasts at room temperature for 1-2 hours but totally evaporates within 24hrs leaving the training area ready for the next exercise.





Dimensions 220 x 60 x 60 mm
Weight 0.9 kg
Construction Aluminium casing
Display Type N/A
Backlight  N/A
Battery Powered from internal Li-ion battery. 12 hours
approx. run time
Instrument turns on when Radiagem is switched on. Charge time approx. 6hours from supplied charger
Detector STS gas detectors situated behind perforated face
plate

Audio Output  Selectable on Instrument
Alarm Thresholds Selectable on Instrument
Retained Functionality All original instrument controls and switches
retained
Software unchanged from real instrument
Connector Standard 8 pin Fischer connector
Operating & Storage Temperature Operating temp 0° C to +30° C  Above 30° C the stimulant will rapidly evaporate Storage temp -10° C to +40° C
Warm up time 30 seconds from switch on to ready
Available Probes N/A
Available Simulants LS1 –liquid stimulant spray SS4 – solid stimulant source
