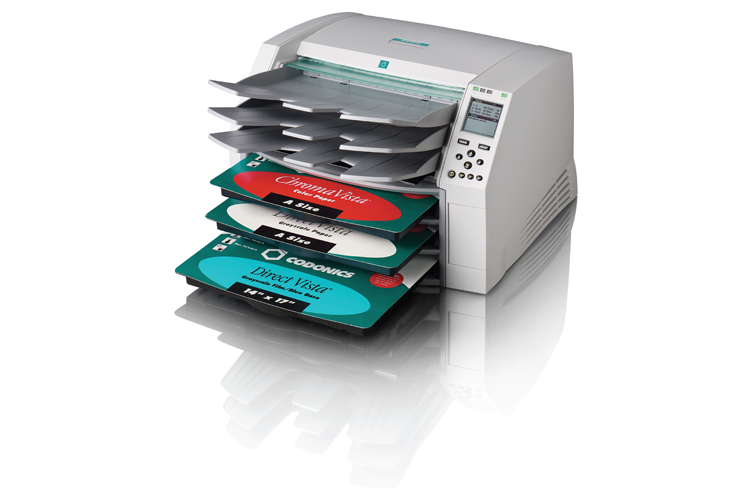

Horizon Ci combines diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business. Featuring color paper to show off your latest imaging techniques, room light viewable grayscale paper to cut your costs and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.
Print Technology:
Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Color Resolution:
16.7 million colors, 256 levels each of cyan, magenta, and yellow
Media Inputs:
Three supply cassettes, 50-100 sheets each, one color ribbon
Media Outputs:
Three receive trays, 50-sheet capacity each
Media Sizes:
8” x 10”, 14” x 17” (blue and clear) DirectVista® Film A, A4, 14” x 17” DirectVista Grayscale Paper A, A4 ChromaVista® Color Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: FTP, LPR Optional: DICOM (up to 24 simultaneous connections), Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities
Horizon Ci combines diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business. Featuring color paper to show off your latest imaging techniques, room light viewable grayscale paper to cut your costs and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.
Print Technology:
Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Color Resolution:
16.7 million colors, 256 levels each of cyan, magenta, and yellow
Media Inputs:
Three supply cassettes, 50-100 sheets each, one color ribbon
Media Outputs:
Three receive trays, 50-sheet capacity each
Media Sizes:
8” x 10”, 14” x 17” (blue and clear) DirectVista® Film A, A4, 14” x 17” DirectVista Grayscale Paper A, A4 ChromaVista® Color Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: FTP, LPR Optional: DICOM (up to 24 simultaneous connections), Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

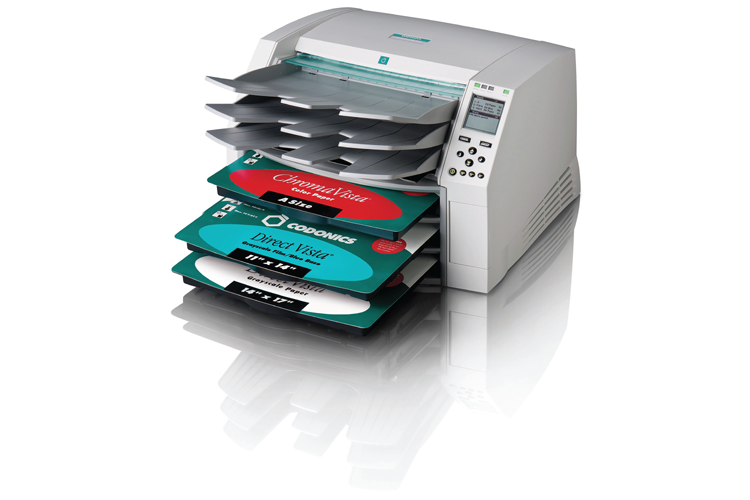

Horizon Ci-rad combines diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager, including both 14” x17” and 11”x 14” media sizes for value and convenience in the CR/DR environment. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business. Featuring color paper to show off your latest imaging techniques, low-cost, room light viewable grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.
Print Technology:
Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Color Resolution:
16.7 million colors, 256 levels each of cyan, magenta, and yellow
Media Inputs:
Three supply cassettes, 50-100 sheets each, one color ribbon
Media Outputs:
Three receive trays, 50-sheet capacity each
Media Sizes:
8” x 10”, 14” x 17” (blue and clear) DirectVista® Film A, A4, 14” x 17” DirectVista Grayscale Paper A, A4 ChromaVista® Color Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: FTP, LPR Optional: DICOM (up to 24 simultaneous connections), Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

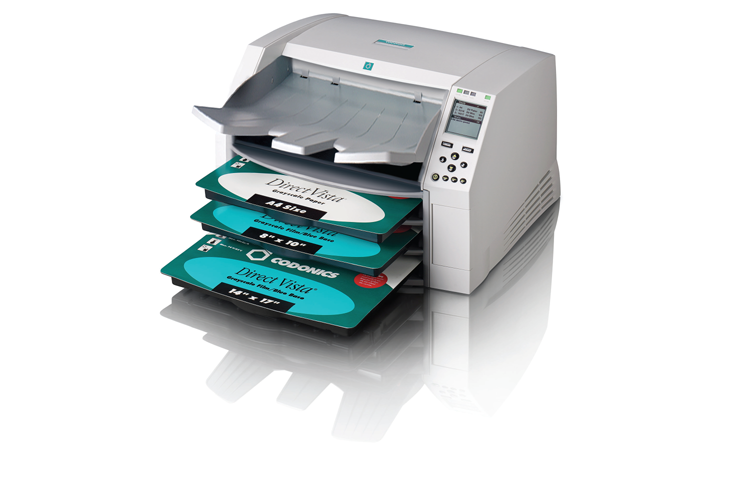

The Horizon GS combines diagnostic film and grayscale paper printing to provide the world’s most versatile medical grayscale imager. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business. Featuring low-cost, room light viewable grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.
Print Technology:
Direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Media Inputs:
Three supply cassettes, 80-100 sheets each, one color ribbon
Media Outputs:
One receive tray, 50-sheet capacity
Media Sizes:
8” x 10”, 14” x 17” (blue and clear), 11” x 14” (blue) DirectVista® Film A, A4, 14” x 17” DirectVista Grayscale Pape
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: 24 DICOM connections, FTP, LPR Optional: Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

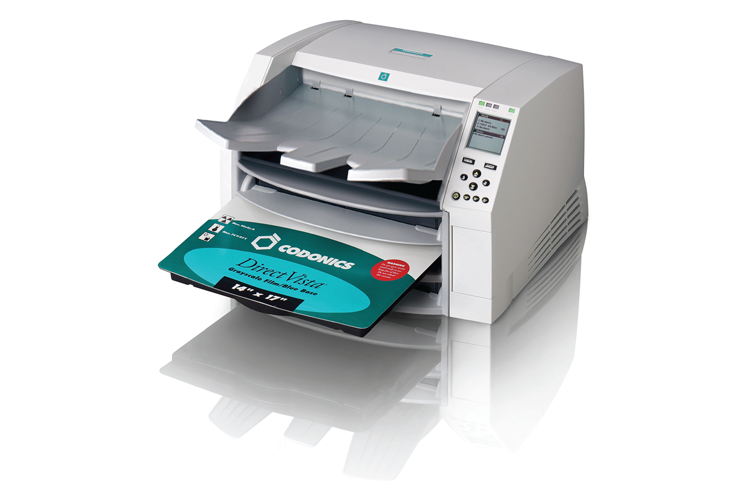

The Horizon G1 is an intelligent, desktop dry imager that produces diagnostic quality medical films plus grayscale paper prints if you choose the optional paper feature. The imager is compatible with many industry standard protocols including DICOM and Windows network printing. Horizon also features direct modality connection, with up to 24 simultaneous DICOM connections. High speed image processing, networking and spooling are standard.
Print Technology:
Direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Media Inputs:
One supply cassette, 80-100 sheets
Media Outputs:
One receive tray, 50-sheet capacity
Media Sizes:
8” x 10”, 14” x 17” (blue and clear), 11” x 14” (blue) DirectVista® Film Optional A, A4, 14” x 17” DirectVista Grayscale Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100/1,000 Base-T Ethernet (RJ-45), Serial Console
Network Protocols:
24 DICOM connections, FTP, LPR Optional: Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

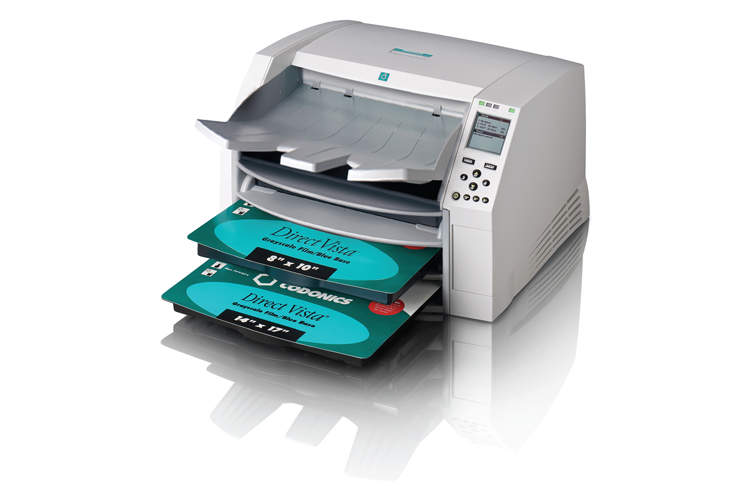

The Horizon G2 is an intelligent, desktop dry imager that produces diagnostic quality medical films plus grayscale paper prints if you choose the optional paper feature. The imager is compatible with many industry standard protocols including DICOM and Windows network printing. Horizon also features direct modality connection, with up to 24 simultaneous DICOM connections. High speed image processing, networking and spooling are standard.
Print Technology:
Direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Media Inputs:
Two supply cassettes, 80-100 sheets each
Media Outputs:
One receive tray, 50-sheet capacity
Media Sizes:
8” x 10”, 14” x 17” (blue and clear), 11” x 14” (blue) DirectVista® Film Optional A, A4, 14” x 17” DirectVista Grayscale Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100/1,000 Base-T Ethernet (RJ-45), Serial Console
Network Protocols:
24 DICOM connections, FTP, LPR Optional: Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

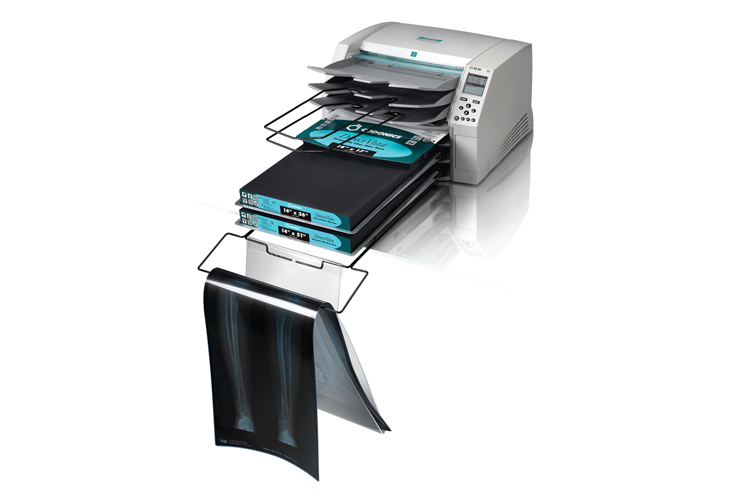

The Horizon XL combines diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager. Horizon XL features exclusive 36” and 51” dry long film ideal for long bone and scoliosis studies. A total CR/DR print solution, Horizon XL will reduce your costs, save you space, and completely eliminate your wet film processing needs. High speed image processing, networking and spooling are all standard.
Print Technology:
Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Color Resolution:
16.7 million colors, 256 levels each of cyan, magenta, and yellow
Media Inputs:
Three supply cassettes, 25-100 sheets each, one color ribbon
Media Outputs:
Three receive trays, 50-sheet capacity each
Media Sizes:
8” x 10”, 14” x 17” (blue and clear) DirectVista® Film 14” x 36”, 14” x 51” (blue only) DirectVista® Film A, A4, 14” x 17” DirectVista Grayscale Paper A, A4 ChromaVista® Color Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: FTP, LPR Optional: DICOM (up to 24 simultaneous connections), Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities

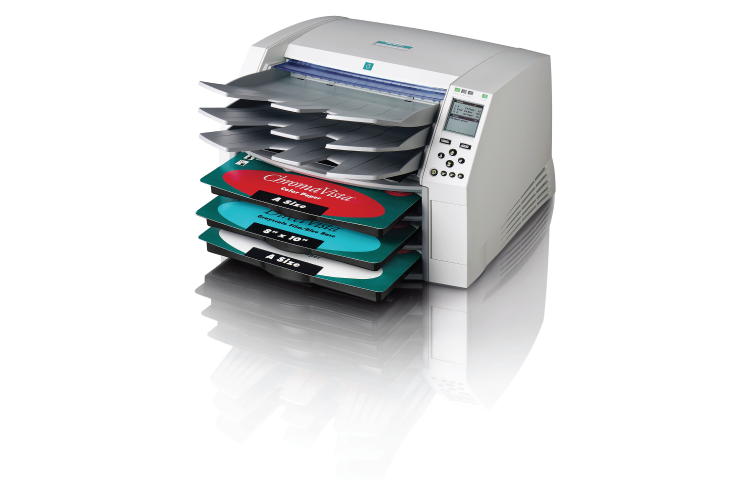

The Horizon SF combines small format diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business. Featuring color paper to show off your latest imaging techniques, low-cost, room light viewable grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.
Print Technology:
Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution:
320 DPI (12.6 pixels/mm)
Throughput:
Up to 100 films per hour
Time To Operate:
5 minutes (ready to print from “off”)
Grayscale Contrast Resolution:
12 bits (4096)
Color Resolution:
16.7 million colors, 256 levels each of cyan, magenta, and yellow
Media Inputs:
Three supply cassettes, 50-100 sheets each, one color ribbon
Media Outputs:
Three receive trays, 50-sheet capacity each
Media Sizes:
8” x 10” (blue and clear) DirectVista® Film A, A4 DirectVista Grayscale Paper A, A4 ChromaVista® Color Paper
Dmax:
>3.0 with DirectVista Film
Archival:
>20 years with DirectVista Film, under ANSI extended-term storage conditions
Media Supply:
All media is pre-packaged and factory sealed
Interfaces:
Standard: 10/100 Base-T Ethernet (RJ-45), Serial Diagnostic Port, Serial Console
Network Protocols:
Standard: FTP, LPR Optional: DICOM (up to 24 simultaneous connections), Windows network printing
Full medical device compliance including Class 2 FDA and Class I MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI: FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities
