Title Hera W9
Category Women's Health
System pitch

Pursuit of Excellence

Meet the new premium women’s ultrasound designed to elevate confidence and efficiency in women’s healthcare.The new HERA W9 ultrasound system combines superior imaging technology with ergonomic design to advance workflow.Featuring the innovative Crystal Architecture™ and premier image processing technologies,HERA W9 produces realistic, high-resolution images for exceptional accuracy.

Showroom
System benefits

Crystal Architecture

Crystal Architecture, an imaging architecture that combines CrystalBeam and CrystalPure, while based upon S-Vue Transducer, is to provide crystal clear image.

  • CrystalBeam is a new beamforming technology beneficial in delivering high-quality image resolution and increased uniformity of images.
  • CrystalPure is Samsung’s up-to-date ultrasound imaging engine with enhanced 2D image processing, color signal processing, and advanced intellectual algorithm to offer outstanding image performance and efficient workflow during complex cases.

A new beamforming for in-depth image creation

CrystalBeam™ utilizes Arbitrary Waveform Transmission, Massive Parallel Beamforming,
and Synthetic Aperture technologies to produce a faster frame rate and improved image uniformity.

An enriched diagnostic system, excellence in utilization with AI

HERA W9's expert tools and technologies incorporate the latest artificial intelligence to advance the field. The growth of the fetus and women's health in detailed reports will help you build more confidence and increase the throughput of your diagnosis.

Feature image 93
Description

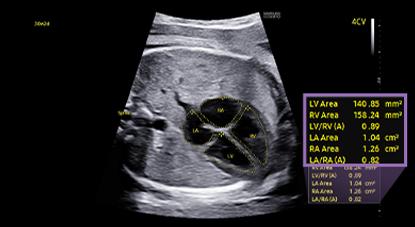

HeartAssist™, a feature based on Deep Learning technology, provides automatic classification of ultrasound image into measurement views required for fetal heart diagnosis and provides measurement results.

Feature image 94
Description

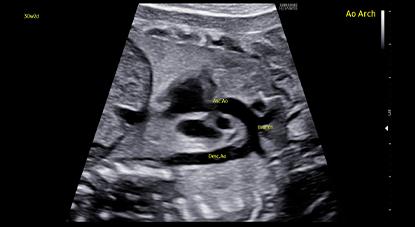

ViewAssist™, a feature based on Deep Learning technology, provides automatic classification of the ultrasound images and annotation of the structures to help healthcare professionals in convenient measurement.

* ViewAssist™ fully covers global guidelines from 1st to 3rd trimester.

Feature image
Description

BiometryAssist™, a feature based on Deep Learning technology, is an automatic technology for biometric measurement. It enables users to measure the fetal growth parameters with one click while maintaining exam consistency.

Feature image 96
Description

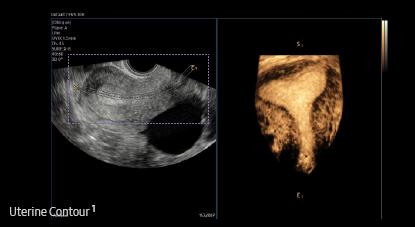

Uterine Contour¹ is a feature to help in identifying uterine malformation. It automatically extracts the centerline and thickness of the curved endometrium and provides a coronal view in 3D, flattened by the centerline. In addition, uterine malformation classification are reported according to the ESHRE/ ESGE or ASRM guideline selection.

* ESHRE/ESGE : The European Society of Human Reproduction and Embryology / The European Society for Gynaecological Endoscopy

* ASRM : The American Society for Reproductive Medicine

Feature image 97
Description

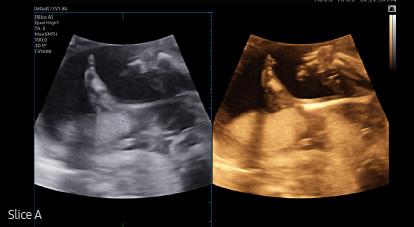

Slice A ¹, is a feature that improves the contrast resolution of A Plane images. By compositing multiple A Plane images, it helps in analyzing tissues or structures that are difficult to see with only 2D images.

Feature image 98
Description

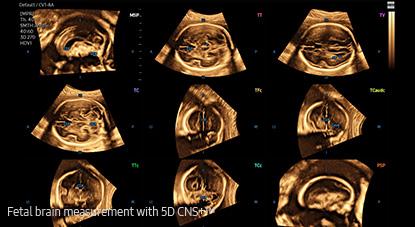

5D CNS+™ ¹ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamlined workflow.

Description

5D Limb Vol.™ ¹ is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set. These measurements can then be used to calculate an accurate estimation of fetal weight as well as provide additional information regarding fetal nutritional status.

Description

MPI+  is able to semi-automatically measure LV MPI and RV MPI, providing a high reproducibility. After acquiring Inflow/Outflow doppler, RV MPI proceeds alignment by utilizing synchronized signals of the heartrate and valve movement.

Feature image 80
Description

Semi-automated imaging reporting tool for breast assessment

The feature, which analyzes selected lesions in the breast ultrasound study and shows the analysis data, applies BI-RADS ATLAS* (Breast Imaging-Reporting and Data System, Atlas) to provide standardized reporting; and helps diagnosis with the streamlined workflow.

  • BI-RADS ATLAS: It is a registered trademark of ACR and all rights reserved by ACR.

Description

5D Heart Color™ ¹ The function provides 9 standard planes of the heart by using the fetal STIC data as well as important information about fetal heart development in an easy and accurate way in accordance with the AIUM guideline. In addition, it offers dedicated Preset, Predictive Cursor, Diagnostic Alert, and heart Diastole/Systole timepoints.

Description

5D Follicle™ identifies and measures multiple ovarian follicles in one scan for rapid assessment of follicular size and status during controlled ovarian simulation. This feature uses 3D volume data to help acquire accurate measurement and reduces user variation.

Sophisticated 2D & Color Images processed by CrystalPure

CrystalPure imaging engine help you to make more confident diagnoses with fundamental 2D images and enhanced  color performance. It also lessens the incidence of clutter and boosts the level of color signal processing.

Feature image 71
Description

Visualize attenuated shadow area

ShadowHDR™ selectively applies high-frequency and low-frequency of the ultrasound to identify shadow areas where attenuation occurs

Feature image 103
Description

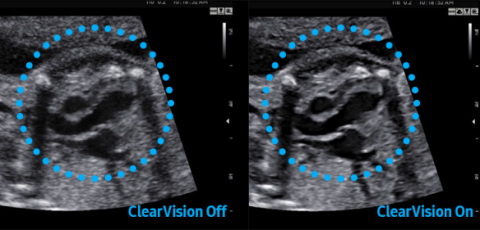

ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images. It reduces halo artifact that occurs when the tissue contour is enhanced, and removes noises on the tissue boundaries.

Feature image 72
Description

Clarify blurred area to provide clearer images

HQ-Vision provides clearer images by mitigating the characteristics of ultrasound images that are slightly blurred than the actual vision.

Realistic description of 3D/4D performance

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects. In addition, you are able to see 3D anatomy with more realistic depth perception, and can visualize the internal and external structures at once.

Feature image 104
Description

CrystalVue™ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.

Feature image 105
Description

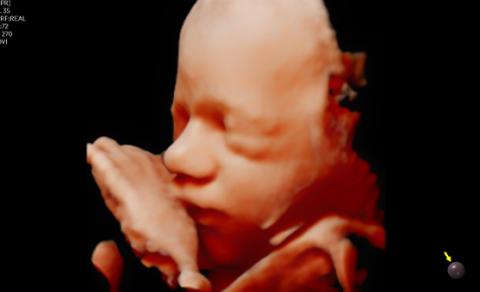

RealisticVue™ ¹ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.

Feature image 106
Description

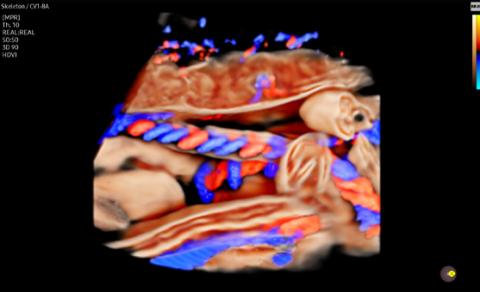

CrystalVue Flow™ ¹ is a volume rendering technology that provides additional information of blood flow morphology based on the CrystalVue™ features that visualizes the internal structures by projecting the 3D data, providing better understanding in the anatomic structures and surrounding vascular vessels.

Advanced vessel description and flow characterization

The color imaging performance has been improved to clearly visualize the hemodynamics of the blood flow. A greater sensitivity resulting from new color signal processing and a realistic 3D visualization of blood flow help understand the microcirculatory blood flows, accurate detection of peripheral blood vessels, and volumes of slow blood flows.

Feature image 73
Description

Three dimensional-like visualization of blood flow

LumiFlow is a function that visualizes blood flow in three dimensional-like to help understand the structure of blood flow and small vessels intuitively.

Feature image 74
Description

Visualize slow flow microvascularized structures

MV-Flow visualizes microcirculatory and slow blood flow to display the intensity of blood flow in color. It is suitable for observation of microcirculatory blood flow and volume of slow blood flow.

Feature image 75
Description

Directional power Doppler to examine peripheral vessels

The function uses directional power Doppler technology, enabling you to examine even the peripheral vessels. It displays information on the intensity and direction of blood flow.

Clinical Images
Transducers

CA1-7A CA2-8A CA3-10A CF4-9

CA1-7A

Application:

Abdomen, Obstetrics, Gynecology, Musculoskeletal, Pediatric, Vascular, Urology

CA3-10A

Application:

Abdomen, Obstetrics, Gynecology, Musculoskeletal, Pediatric, Vascular, Urology

CA2-9A

Application:

Abdomen, Obstetrics, Gynecology

CF4-9

Application:

Pediatric, Vascular

LA2-14A

Application:

Small parts, Vascular, Musculoskeletal, Abdomen

LA2-9A

Application:

Small parts, Vascular, Musculoskeletal, Abdomen

L3-12A

Application:

Small parts, Vascular, Musculoskeletal

CV1-8A

Application:

Abdomen, Obstetrics, Gynecology

EV3-10B

Application:

Obstetrics, Gynecology, Urology

EV2-10A

Application:

Obstetrics, Gynecology, Urology

EV2-12

Application:

Obstetrics, Gynecology, Urology

EA2-11AR*

Application:

Obstetrics, Gynecology, Urology

EA2-11AV*

Application:

Obstetrics, Gynecology, Urology

* Ergonomic Transducer (CA1-7S, EA2-11AR, EA2-11AV)

The new convex transducer design with a smooth and slim grip helps users to scan easily and comfortably.
The new endocavity transducer supports natural grip by moving the max width point to a more forward positionand also increased the length of the grip to allow balanced weight distribution.

PA1-5A

Application:

Cardiac, TCD, Abdomen

PM1-6A

Application:

Cardiac, TCD, Abdomen

PA3-8B

Application:

Cardiac, Pediatric, Abdomen

PA4-12B

Application:

Cardiac, Pediatric
