Technical data:

• Diameter: 160 mm

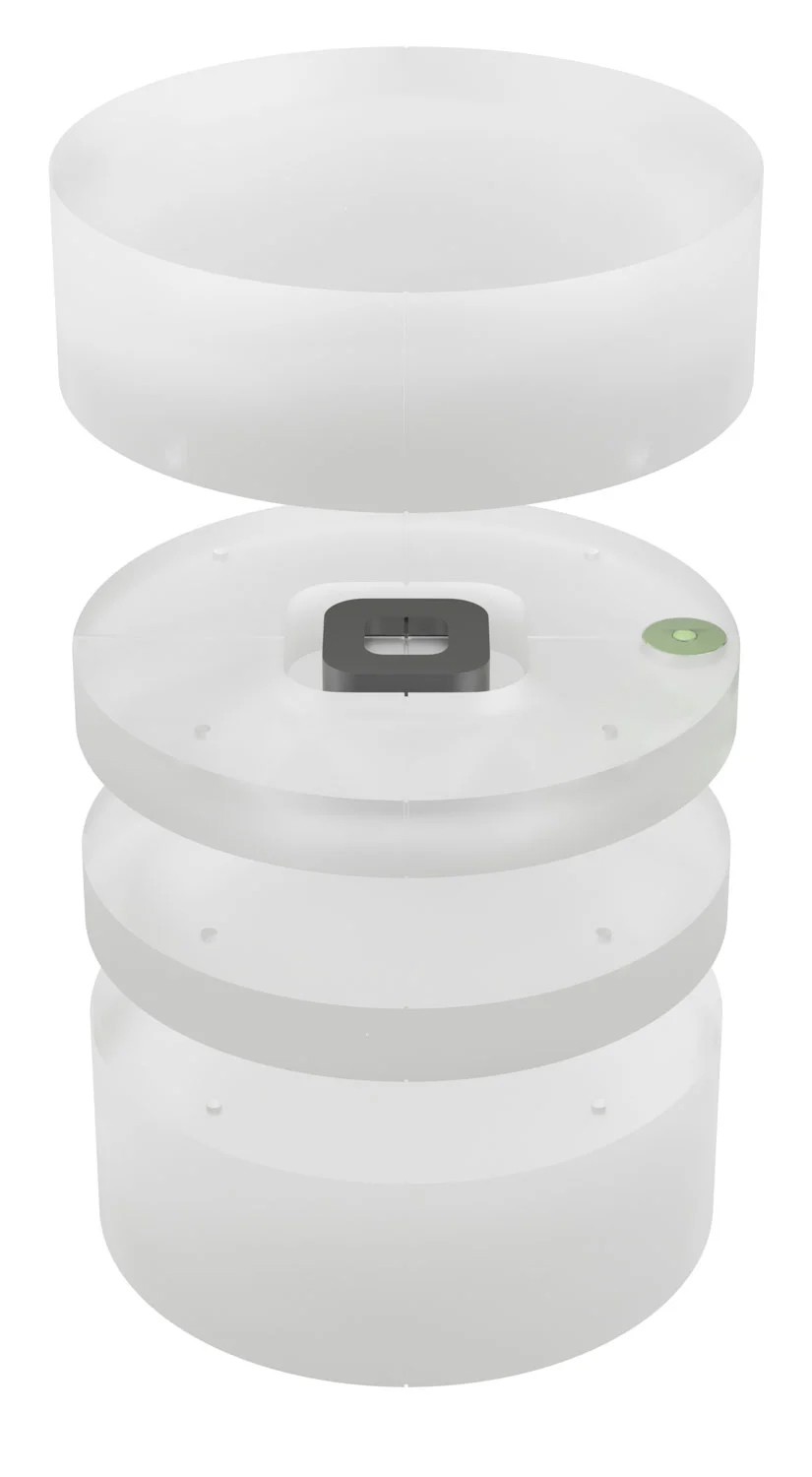

• 20 mm thick main module containing:
  – test object containing equivalents of air, soft tissue and bone
  – positioning markers
  – bubble level

• 20 mm, 50 mm and 60 mm thick PMMA modules with positioning aids

• Test stand with a table for placing the phantom in the test position

• Convenient, portable case for storing and transporting the phantom

‍Product features:

• Complies with:
  – Radiation Protection no 172 report by the SEDENTEXCT
  – IEC 61223-3-4 and IEC 61223-3-5

• CE marked

• The manual provides detailed guidelines for carrying out each test, results assessment and registration
