Benefits
Technical data:
Dimensions: 101.5 x 108.0 x 44.0 mm
Simulates 42 mm compressed breast of average glandular/adipose composition
Total PMMA thickness: 36.75 mm

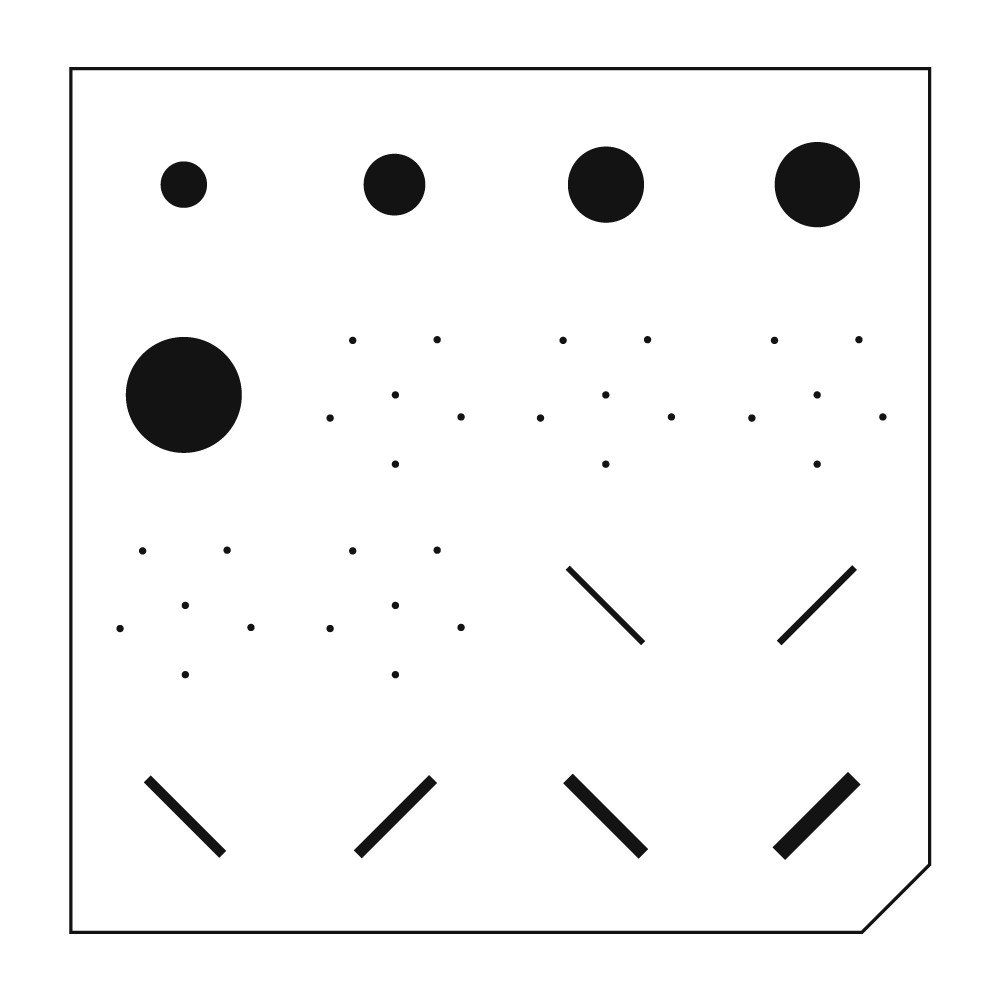

Wax insert:
– Thickness: 7.25 mm
– Nylon fibrils diameters: 1.56, 1.12, 0.89, 0.75, 0.54 and 0.40 mm
– Microcalcifications: 0.54, 0.40, 0.32, 0.24 and 0.16 mm Al₂O₃ specks
– Tumor-like masses: 2.00, 1.00, 0.75, 0.50 and 0.25 mm thick10 mm diameter and 4 mm thick PMMA contrast disc
Comfortable carrying case
Product features:
ACR-Approved
Complies with:
– IEC 61223-3-2
– ACR Mammography Accreditation Program Requirements (May 4, 2012)CE marked
The manual provides detailed guidelines for carrying out each test, results assessment and registration
