Pro-NM AutoMixer
Radiology
Diagnomatic

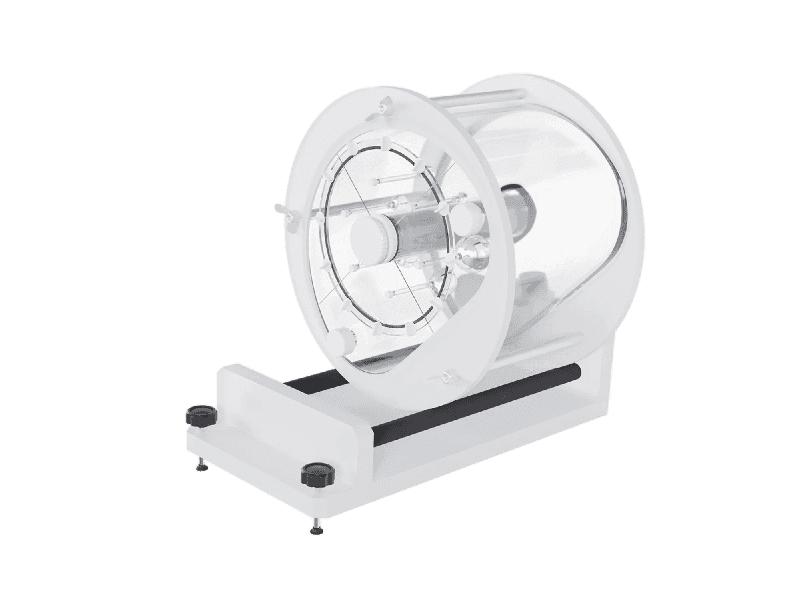

Automatic table mixer for mixing radioactive solutions in nuclear medicine cylindrical volume phantoms (e.g., PET, SPECT). Automatic mixing makes the radio-nuclide solution more homogeneous, reduces time spent on test preparation, and reduces radiation exposure for personnel. Using special double rollers to rotate the cylinder prevents damage to the surface of the phantom.
Benefits
Technical data:
Designed for: mixing solutions in NM cylindrical phantoms
Mixer dimensions: 39 x 22 x 12 cm
Weight: 4 kg
Rotation speed (depends on phantom size): app. 40 rpm ( for Jaszczak Ø220 mm) and 27 rpm (for NEMA Ø300 mm)
Power supply: plug-in power supply (230V AC, 50-60 Hz)
Power consumption: approx. 10 W
Mixing time: approx 5 - 10 min
Benefits:
Reduce radiation exposure for personnel
More homogeneous radio-nuclide solution
Reduced time spent on test preparation
Accessories:
Power supply (included)
Pro-NM Performance phantom (not-included)
Pro-NM NEMA phantom (not-included)
Optional rotation support
Product features:
Complies with:
- It applies to cylindrical phantoms, which must be filled with a homogeneous radioactive solutionCE certified
The manual provides detailed guidelines for carrying out each test, results assessment and registration
