RadEye™ X Series Survey Meters
Industrial Solutions
Thermo Scientific
Be prepared for virtually any radiation exposure scenario with compact, multi-purpose survey meters that operate with Geiger-Mueller, scintillation or proportional detectors.
Benefits
The Thermo Scientific™ Radeye™ X Series Survey Meters comprise three different types of compact, multi-purpose survey meters suited for a wide range of applications where personnel risk radiation exposure, whether they are emergency responders, fire fighters, nuclear power plant employees, or medical professionals. RadEye X Series Survey Meters can operate with virtually any manufacturer's Geiger-Mueller, scintillation or proportional detectors to perform general count rate, surface contamination and dose rate measurements.
Features for all Survey Meters in the RadEye X Series:
Connector Types MHV.
Battery powered (2 x AAA alkaline or rechargeable), powered desktop station available as option.
Alarms 80 dB at distance of 30cm (11.8 in.).
Clear and large display.
Versatile operation modes.
Communication interface: Infrared (IR), optional IR to USB cable or IR to serial cable, optional Bluetooth™.
Settings and data analysis done by optional Windows™ based PC-software via serial data connection, USB or Bluetooth.
Logs last 250 alarms, error messages and changes of configuration.
Background subtraction: in count rate and contamination mode.
Probe library for 16 different detectors with data like high voltage, calibration factor, dead time correction, overload threshold, detector area and timeout for detector failure; Default values for common probes are preset.
Internal memory: The last 1500 measured values are saved and can be read out via PC program; Max and mean value of count rate and dose rate; Time interval is factory preset to 120s by default; Scaler measurements and momentaneous readings stored manually.
Averaging filters: Ratemeter filter type - Advanced Digital Filter (ADF), Digital RC-Filter with time constant, 1s to 180s, depending on count rate and count rate change.
Certifications/Compliance EMC: Disturbance emission - EN 61000-6-3, immunity - EN 61000-6-2.
Variants

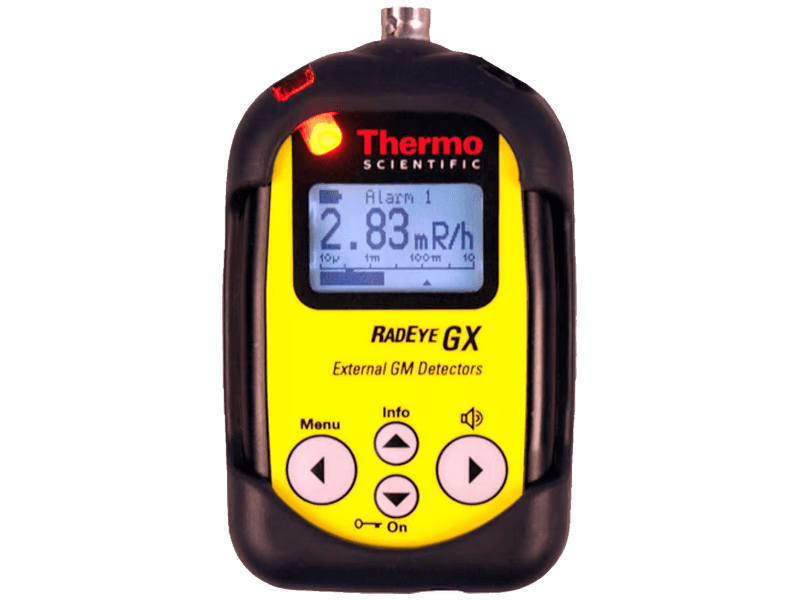

RadEye GX Survey Meter for Geiger-Mueller Detectors
- Accepts a wide range of GM detectors - Measurement range default (overrange indication starts at): 10,000 cps - Measured quantities (requires individual probe calibration): Surface contamination (Bq, dps, dpm, Bq/cm2), Dose rate (R/h, Sv/h, rem/h), Count rate (cps, cpm). - High Voltage range: 350V…1100V. - Output impedance: 1MOhm.
RadEye SX Survey Meter for Scintillation Detectors
- Operates with dual phosphor α/β, NaI(Tl) and plastic probes. - Measurement range default (overrange indication starts at):100,000 cps. - Measured quantities (requires individual probe calibration): Count rate (cps, cpm), Surface contamination (Bq, dps, dpm, Bq/cm2), Dose rate (R/h, Sv/h, rem/h). - High Voltage range: 100 V ... 1400 V. - Output impedance: 2MOhm. - Thresholds: 4 (30 to 1280mV, 1mV resolution). - Energy windows: 2 ROI (region of interest).
RadEye PX Survey Meter for Proportional Detectors
- Operates with proportional detectors such as He-3 and BF3 neutron detectors. - Measurement range default (overrange indication starts at): 100,000 cps. - Measured quantities (requires individual probe calibration): Count rate (cps, cpm), Surface contamination (Bq, dps, dpm, Bq/cm2), Dose rate (R/h, Sv/h, rem/h), Count rate (cps, cpm), Surface contamination (Bq, dps, dpm, Bq/cm2). - Dose rate (R/h, Sv/h, rem/h). - High Voltage range: 100 V ... 2300 V. - Output impedance: 2MOhm. - Thresholds: 3 (30 to 1220mV, 1mV resolution). - Energy windows: 1 ROI (region of interest).
