SAMSUNG HERA Z20
Ultrasound
Samsung
The HERA Z20 is Samsung's premium ultrasound system for gynaecology and obstetrics. It is built for practices and clinics that scan women's health all day: fertility work-ups, first-trimester screening, detailed fetal anatomy, fetal heart, and gynaecological and breast exams on the same system. It is the top of Samsung's women's health range in Switzerland. Compared with the V8, which Meditron recommends when one system has to cover general imaging and OB/GYN, the HERA Z20 adds Samsung's second-generation Crystal Architecture, a 27-inch OLED monitor and the full set of automated OB/GYN tools: Live ViewAssist, BiometryAssist, HeartAssist and 5D CNS+. Compared with the earlier HERA W10, it is the newer platform with the current AI workflow. Meditron has installed Samsung ultrasound systems in Swiss practices and hospitals since 2012. We configure the HERA Z20 for your specialty, install it, train your team on it, and service it from Rolle and Frauenfeld in German, French and Italian.
Technical Data
Designed for
Gynaecology, obstetrics, fertility, fetal heart, breast
Imaging engine
Crystal Architecture 2nd Gen (CrystalBeam and CrystalLive, software beamforming)
Monitor
27" OLED
Touch screen
15.6" tilting touchscreen
Active probe ports
4
Imaging modes
2D, M Mode, Color Doppler, PW Doppler, CW Doppler, TDI, TDW, ElastoScan, 3D/4D, Dual Mode, Quad Mode
Automated OB/GYN tools
Live ViewAssist, BiometryAssist, HeartAssist, ViewAssist, 5D CNS+, UterineContour, EzVolume
Image technologies
MV-Flow, LumiFlow, ShadowHDR, RealisticVue, PortraitVue, CrystalVue
Connectivity and options
DICOM, Wi-Fi module, SonoSync real-time image streaming
Physical dimensions
Width: 62.5 cm / Depth: 93.5 cm
Brochure
Download PDF
Benefits
Crystal Architecture 2nd Gen: Samsung's current imaging engine, with software beamforming for penetration and detail in difficult patients.
Live ViewAssist identifies the standard views while you scan, annotates up to 47 structures and performs up to 46 measurements without user interaction.

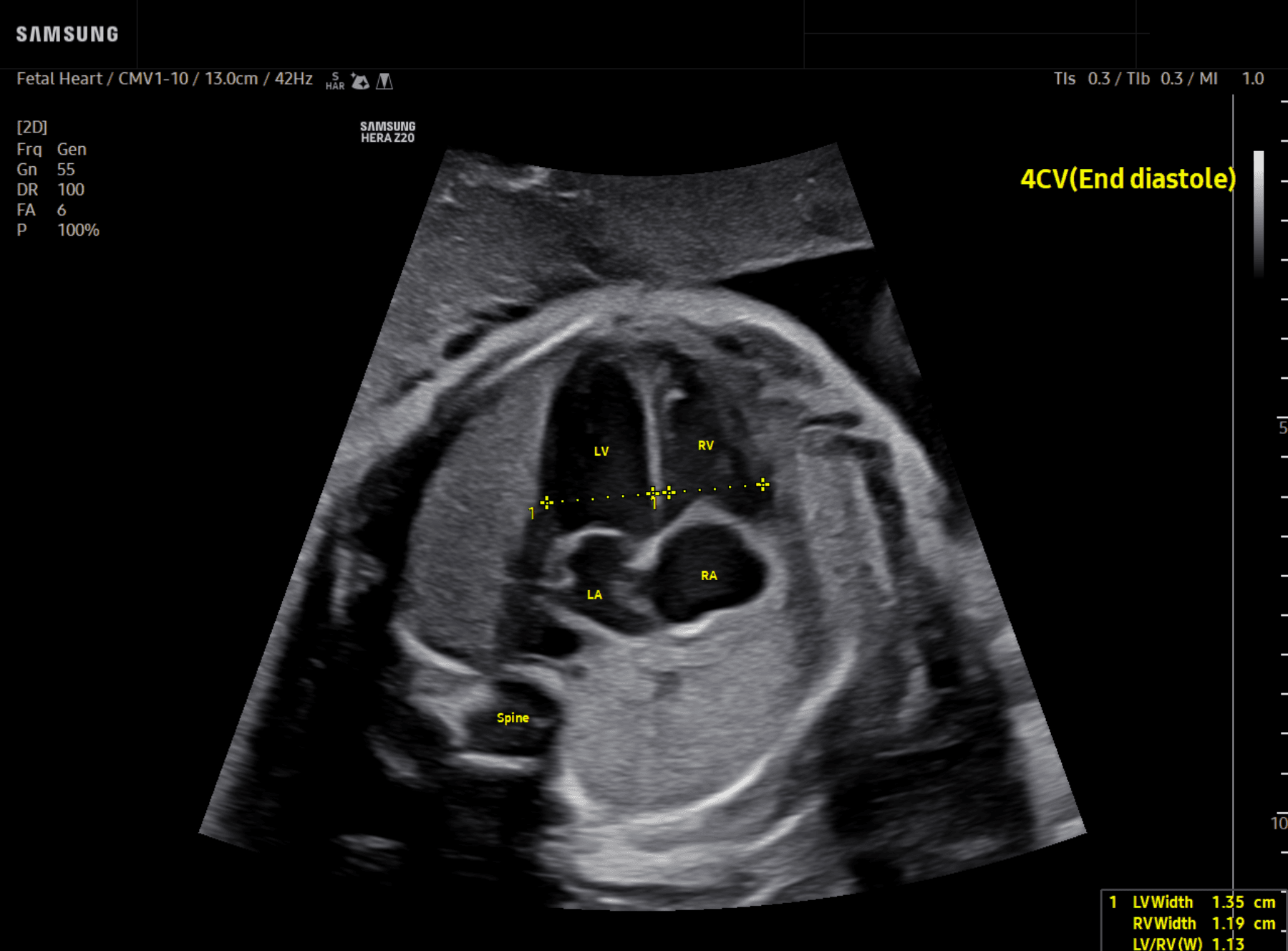

BiometryAssist and HeartAssist: one-click fetal biometry and automated fetal heart measurements, for reproducible results between operators.
5D CNS+ locates nine planes from a fetal brain volume and produces six measurements automatically.

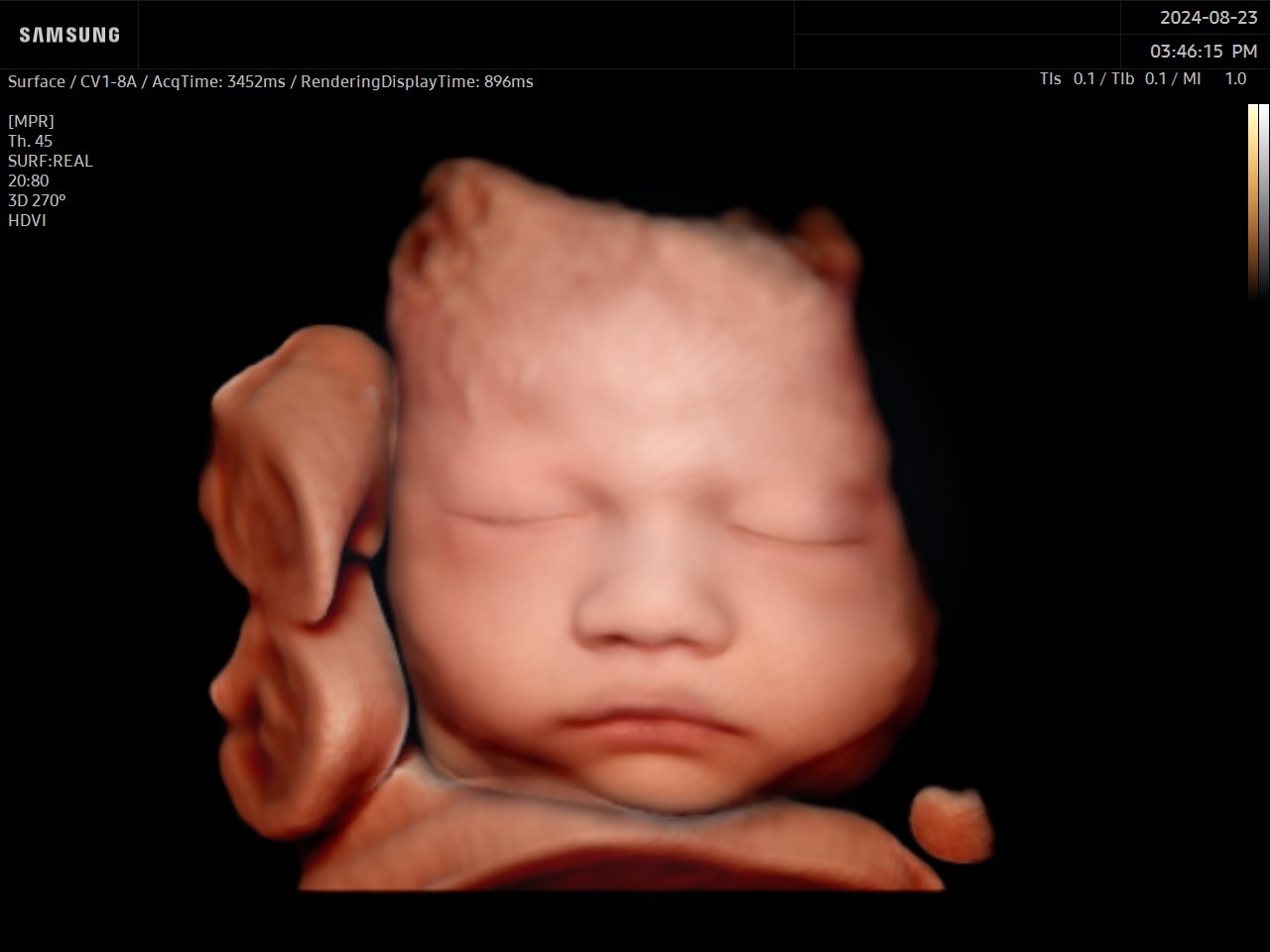

MV-Flow and LumiFlow show slow, microvascular flow; ShadowHDR and RealisticVue improve visibility and give lifelike fetal rendering for parents.
27" OLED monitor and a 15.6" tilting touchscreen, lockable wheels, wide control-panel range and lower fan noise for long scanning days.
Compatible Products
Samsung CA1-7Sv2
The CA1-7Sv2 is Samsung's wide-band S-Vue convex transducer for abdominal and obstetric scanning. Its low-frequency end gives depth for larger patients and later pregnancy; the single-crystal design keeps detail at the near field. On the HERA Z20 it is the standard abdominal and obstetric probe.
Ultrasound
Samsung CA3-10A
The CA3-10A is a higher-frequency convex transducer for detailed anatomy where penetration is less of a constraint: first and second trimester obstetrics, gynaecology, paediatric and thoracic work. It is one of the most widely shared probes in the Samsung range.
Ultrasound
Samsung CV1-8A

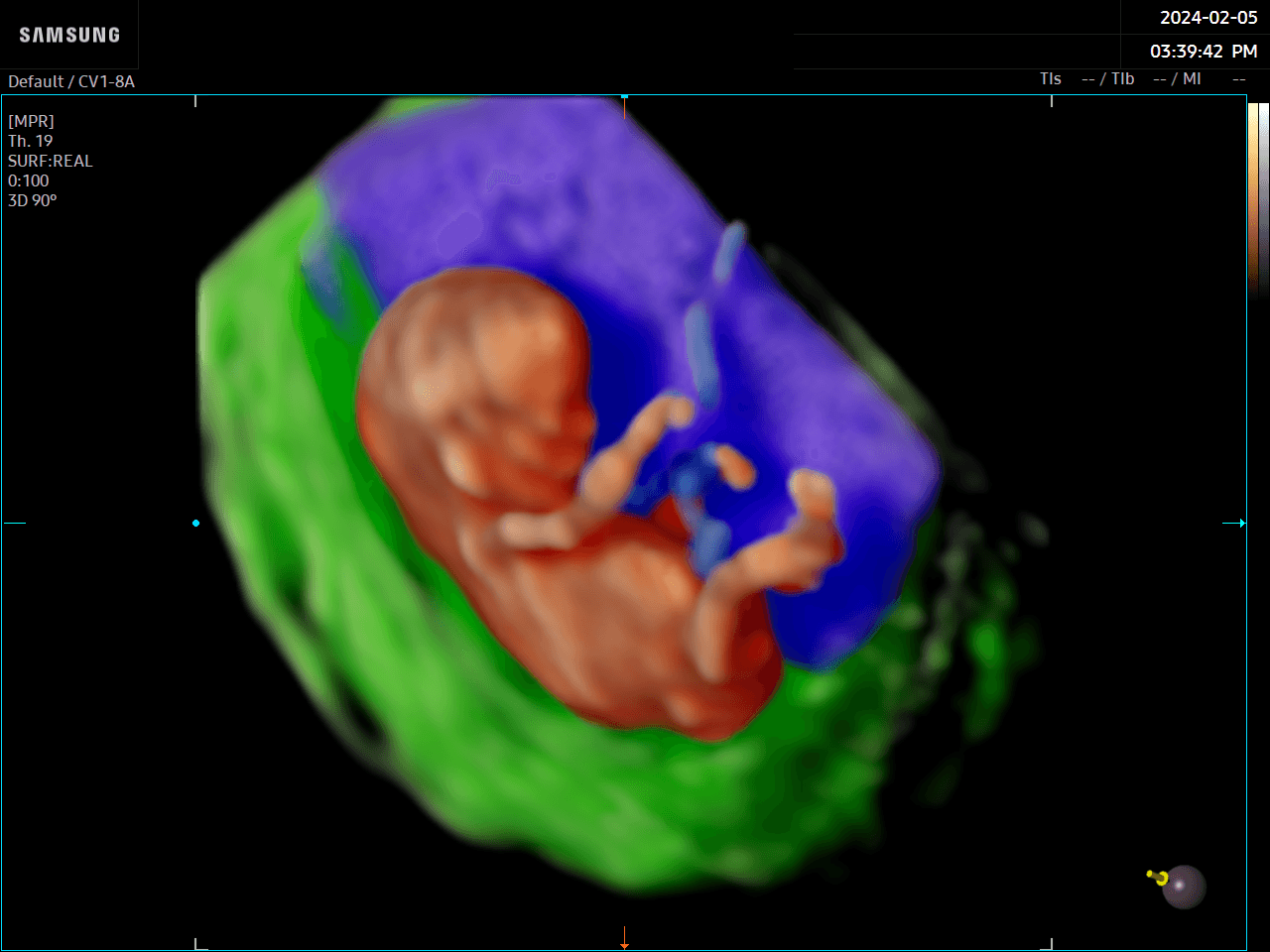

The CV1-8A is the 3D/4D volume convex transducer for fetal imaging. It drives the HERA Z20's volume tools, including RealisticVue, CrystalVue and the 5D applications, and covers routine 2D abdominal and obstetric scanning as well.
Ultrasound
Samsung EA2-11AR
The EA2-11AR is a slim endocavity transducer for gynaecological and early-pregnancy examinations. The 2D probe of the pair; the EA2-11AV adds volume imaging.
Ultrasound
Samsung EA2-11AV
The EA2-11AV is the 3D/4D endocavity transducer for early pregnancy, fetal neurosonography and gynaecological volume imaging. It pairs with the HERA Z20's 5D CNS+ and volume tools.
Ultrasound
Samsung EV2-12
The EV2-12 is Samsung's S-Vue volume endocavity transducer. Single-crystal material and a wider bandwidth than the EA2-11 series make it the premium choice for 3D/4D gynaecology and early obstetrics on the HERA Z20.
Ultrasound
Samsung LM2-18
The LM2-18 is a high-frequency S-Vue linear transducer for breast, thyroid and small-parts imaging. On a women's health system like the HERA Z20 it covers breast examinations without changing system.
Ultrasound
Related models
SAMSUNG V8
The Samsung V8 is the high-end system in Samsung's V series: one platform for general imaging, women's health, musculoskeletal and vascular work. It is the system Meditron recommends when a practice or department needs premium image quality across several specialties rather than a dedicated OB/GYN or radiology console. The V8 is built on Samsung's Crystal Architecture: CrystalBeam beamforming, CrystalLive image processing and S-Vue single-crystal transducers. On top of that sit the Intelligent Assist tools that cut exam time, such as ViewAssist for automatic labelling of anatomy, NerveTrack for locating nerves during live scanning and UterineAssist for uterine measurements. S-Shearwave Imaging quantifies tissue stiffness for breast and liver; MV-Flow shows slow microvascular flow; S-Fusion aligns live ultrasound with MRI or CT. Meditron has supplied Samsung ultrasound systems in Switzerland since 2012. We configure the V8 for your mix of examinations, install it, train your team and service it from Rolle and Frauenfeld in German, French and Italian.
Ultrasound
SAMSUNG R20
The Samsung R20 is the premium radiology and general imaging system in Samsung's range. It is built for hospitals and imaging centres that need one console from screening to intervention: abdominal, liver, breast, thyroid, vascular, MSK and contrast studies, with the AI tools to make the measurements reproducible. The R20 carries Samsung's current image technologies: HQ-Vision to correct signal distortion in tissue, ShadowHDR to suppress shadows, A-Focus for sharpness across the field without manual focal zones, and MV-Flow for slow microvascular flow. For the liver it offers quantitative ultrasound (TAI and TSI) and Deep USFF fat-fraction measurement; Live LiverAssist and Live BreastAssist guide the standard views. The 27" OLED monitor and 15.6" tilting touchscreen are the same as on the HERA Z20. Meditron has supplied Samsung ultrasound systems in Switzerland since 2012. We configure the R20 for your department, install it, train the team and service it from Rolle and Frauenfeld in German, French and Italian.
Ultrasound
SAMSUNG V6
The Samsung V6 is built for dependable performance in general imaging and routine diagnostics. Powered by Crystal Architecture™, it delivers clear, consistent image quality supported by automated workflow features that simplify daily operation. Its ergonomic design, intuitive interface, and optional battery capability enhance flexibility and ease of use. The V6 is a practical, efficient solution designed to meet the demands of modern healthcare settings.
Ultrasound
Why work with Meditron
Meditron has been Samsung Healthcare's partner in Switzerland since 2012, with more than 1,000 Samsung systems installed in Swiss practices, clinics and hospitals. For the HERA Z20 that means: a demonstration in Rolle, in Frauenfeld or in your own practice with your own patients' typical cases; a configuration advice session with Nikita Müller, our ultrasound specialist, to choose the right transducers and software packages; installation and DICOM connection to your practice software; applications training for your team at go-live and again after a few weeks; a service contract with loan equipment; and financing or leasing through our partners. Certified pre-owned Samsung systems are available when the budget calls for it.
